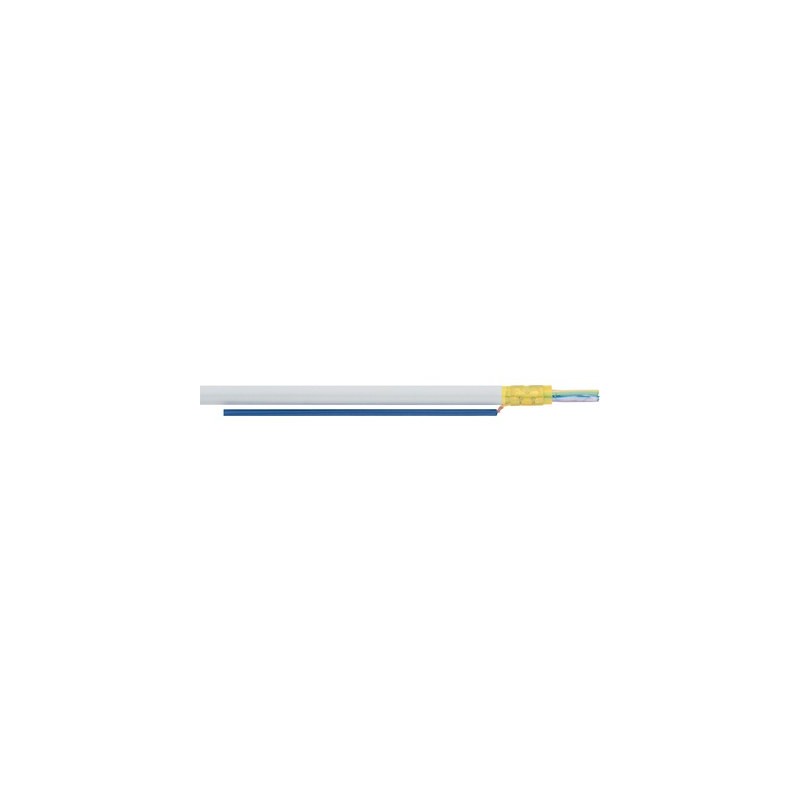

LAPP 61753760 61753760 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

61753760 LAPP SHIELD-KON RSK GAUGE

Reference: 61753760

Manufacturer: LAPP

Description:

SHIELD-KON RSK GAUGE
RSK one-piece screen connector

Categories:

  • LAPP > Connection engineering

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Benefits

  • The four sizes can be identified by the different colours of the connectors
  • Gauge helps to find out the appropriate connector and crimping insert (stripped cable with screen is placed in the hole)
  • Reduced installation time

Application range

  • One-part SHIELD-KON® screen connector allows screened cables to be connected quickly and permanently

Product Make-up

  • To process, insert the connector into the tool, then insert and crimp the screen cable and leads or the earthing clamp
  • When crimped, the connector assumes a round shape and both ends are pushed above each other
  • When inserting the screened cable to a connector, ensure that the cable insulation overlaps with the connector's MYLAR® insulation
  • Inside the connector, there is a suspended cover plate for the leads and an insertion for the screened cable.

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002650
  • ETIM 5.0 Class-Description: Connection for screened wires

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002650
  • ETIM 6.0 Class-Description: Connection for screened wires

Material

  • Tinned electrolyte copper
  • Insulation: laminated polyester

Temperature range

  • -65°C to +125°C
