LAPPSKINTOP cabling53806782 LAPP SKINTOP INOX NPT 1"

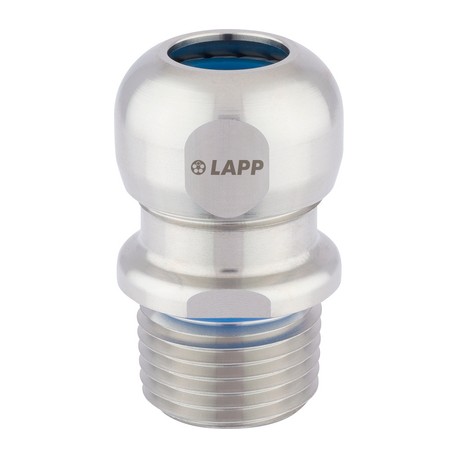

LAPP 53806782 53806782 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

53806782 LAPP SKINTOP INOX NPT 1"

Reference: 53806782

Manufacturer: LAPP

Description:

SKINTOP INOX NPT 1"
SKINTOP® NPT STAINLESS STEEL

Categories:

  • LAPP > SKINTOP cabling

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • Reviews
Guarantee, repair and return.

Total: 301,80 €

Unit Price: 60,36 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

SKINTOP® INOX / SKINTOP® INOX-R, stainless steel cable presses, corrosion resistant with smooth surfaces, compact design, salt water resistant

  • Stainless steel version with compact and hygienic design
  • For use in the "splash zone" in food production

proceeds

  • Corrosion resistant
  • seawater resistant
  • Smooth, edgeless surfaces
  • Compact design
  • Wide and variable clamping ranges

Scope of use

  • For onshore and offshore use
  • Bottling plants and distilleries
  • Food industry (product-free zone, splash zone)

Reference Standards / Approvals

  • ECOLAB®
    Industry standard in the professional field of cleaning and disinfection
  • DIN EN 1672-2
    Guideline for machinery design
  • DIN EN ISO 14159
    Security of machinery – Hygienic requirements for the design of machinery
  • NSF/ANSI 169
    Hygienic design for machinery, appliances and components

Product composition

  • NPT connection nut, according to ASME B1.20.1 - 2013

ETS Classification 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 class description: cable presses

ETTIM Rating 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable presses

Material

  • Body: stainless steel - V4A
    (1.4404 / 316L)
    Insert: polyamide
    Sealing: silicone
    O-ring: silicone
  • Halogen-free

Degree of protection:

  • IP 68 - 5 bar
    IP 69
    NEMA Type 1, 2, 4x, 6, 12

Temperature range

  • from -40 °C to +100 °C

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE LAPP EN
69 Mbytes
