LAPPSKINDICHT cabling52024015 LAPP SKINDICHT RWV PG 29 o. E+D

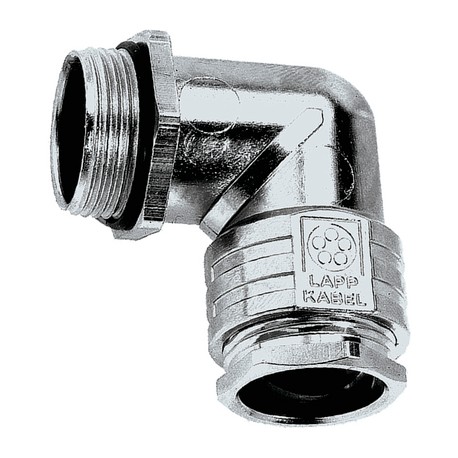

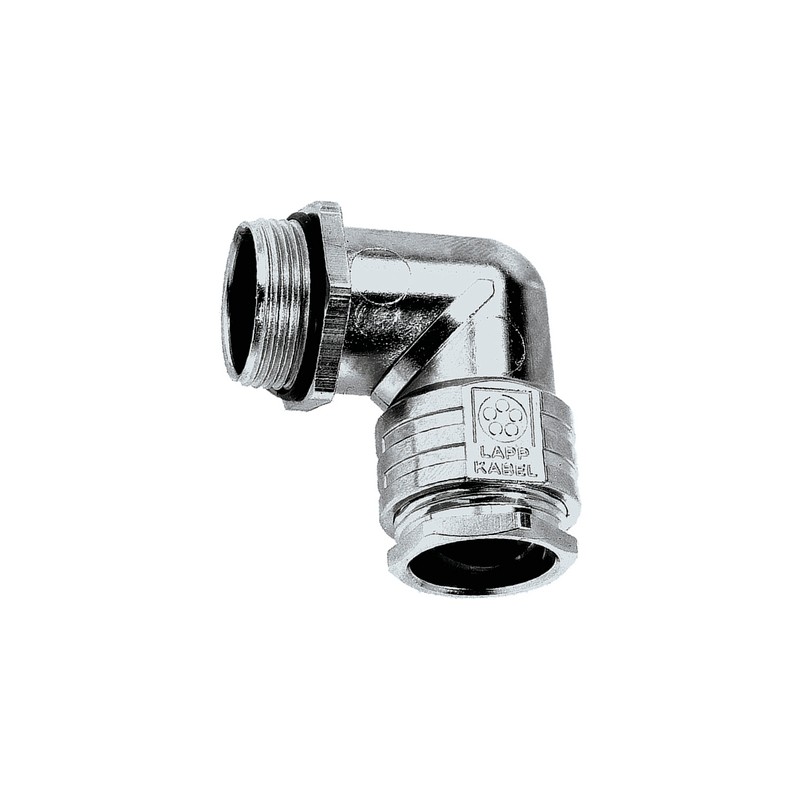

LAPP 52024015 52024015 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

52024015 LAPP SKINDICHT RWV PG 29 o. E+D

Reference: 52024015

Manufacturer: LAPP

Description:

SKINDICHT RWV PG 29 o. E+D
SKINDICHT® RWV

Categories:

  • LAPP > SKINDICHT cabling

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 75,96 €

Unit Price: 7,596 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Benefits

  • Strain relief
  • Sealed by incised sealing ring
  • Corrosion-resistant
  • Decrease in installation height
  • Seawater-resistant

Application range

  • Angled glands are used in areas where cables have to run in parallel to the housing wall.
  • Electric motor manufacturing
  • Machine and equipment manufacturing
  • Plant engineering
  • Light and sound applications

Product Make-up

  • PG connection thread

Note

  • Counter nut to be used: SKINDICHT® SM
  • For combination with other SKINDICHT® or SKINTOP® cable glands, we propose our SKINDICHT® RWV without incised sealing ring (E) and compression screw (D)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Material

  • Body: zinc die-casting
    Compression screw and hexagon nut: nickel-plated brass
    Incised sealing ring: CR
    O-ring: NBR

Protection rating

  • IP 55

Temperature range

  • -20°C to +80°C
    Without incised sealing ring: -20°C to +100°C

DATASHEET - PDF

Title
Size
Type
52024015 52024015 EN_52024015.pdf
635 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
