LAPPSKINDICHT cabling52023621 LAPP SKINDICHT SR-SV PG 11/9

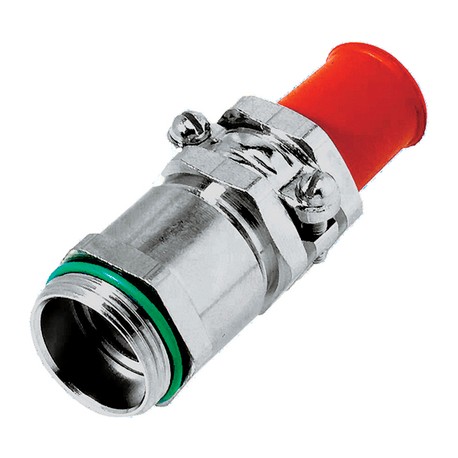

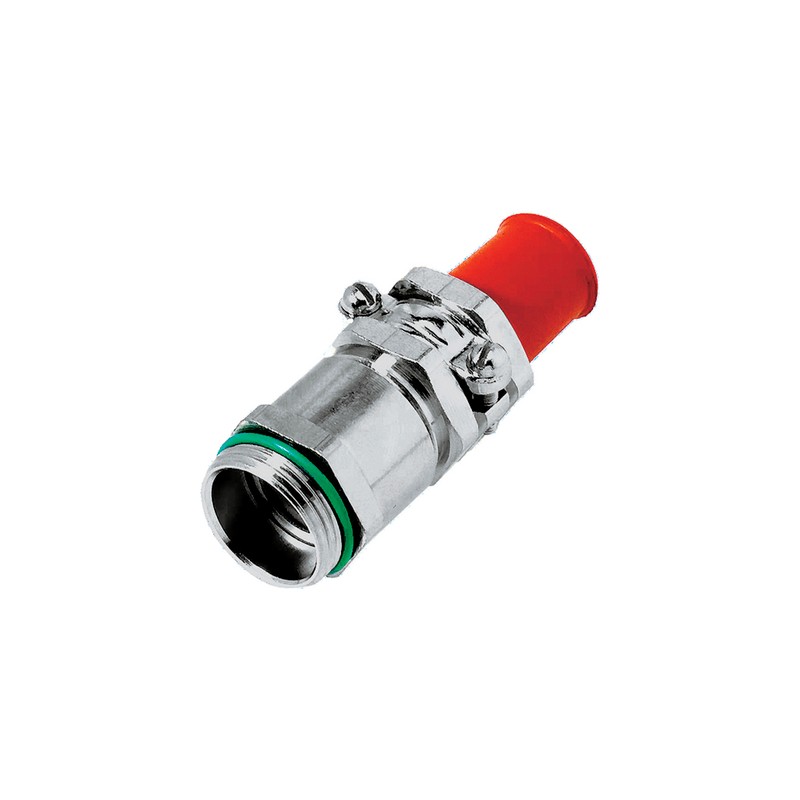

LAPP 52023621 52023621 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

52023621 LAPP SKINDICHT SR-SV PG 11/9

Reference: 52023621

Manufacturer: LAPP

Description:

SKINDICHT SR-SV PG 11/9
SKINDICHT® SR-SV

Categories:

  • LAPP > SKINDICHT cabling

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 504,25 €

Unit Price: 20,17 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Benefits

  • For high temperatures
  • Resistant to oils, solvents, acids and chemicals
  • Seawater-resistant
  • High strain relief
  • Robust

Application range

  • Special cable gland with FKM anti-kink sleeve. Our own reinforced acid-resistant FKM receptacle does not show any effects of aging even after an extended period of use at a temperature of +165°C.
  • Machine and turbine manufacturing
  • Power plant engineering
  • Laboratory

Product Make-up

  • PG connection thread

Note

  • Counter nut to be used: SKINDICHT® SM
  • EMC version is available upon request

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • The installation dimensions
    can be found in appendix T21

On request

  • Available with long connection thread

Material

  • Body: nickel-plated brass
    O-ring: FKM
    Anti-kink protection: FKM

Protection rating

  • IP 65

Temperature range

  • -20°C to +165°C

DATASHEET - PDF

Title
Size
Type
52023621 52023621 EN_52023620.pdf
451 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
