LAPPSKINDICHT cabling52010690 LAPP SKINDICHT SHV PG 16/11/11

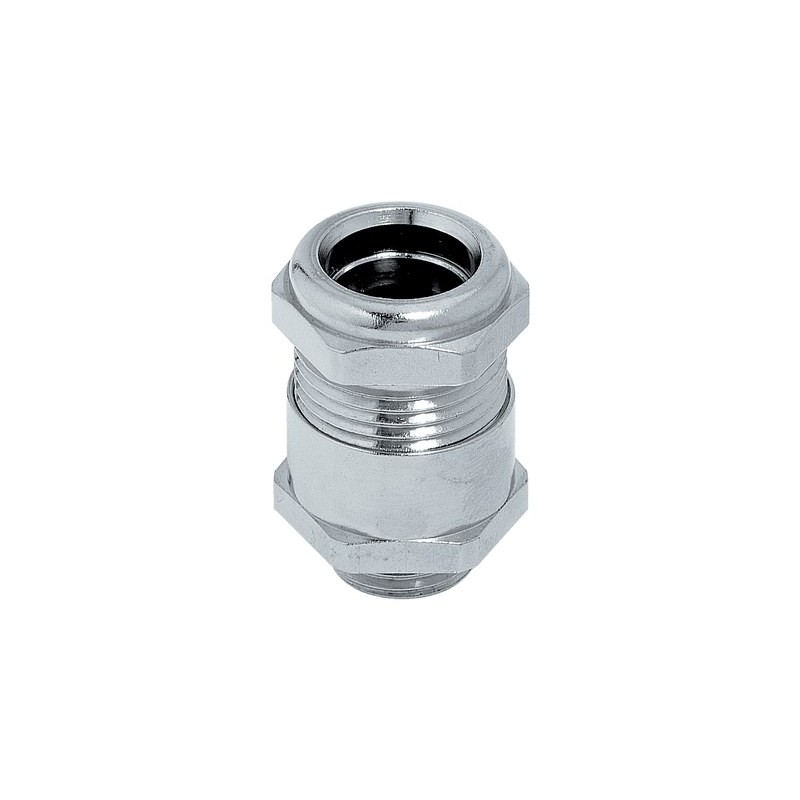

LAPP 52010690 52010690 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

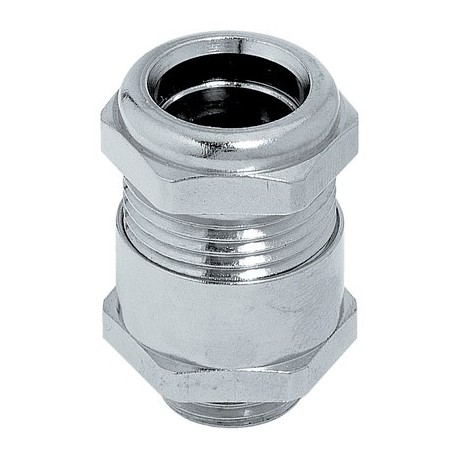

52010690 LAPP SKINDICHT SHV PG 16/11/11

Reference: 52010690

Manufacturer: LAPP

Description:

SKINDICHT SHV PG 16/11/11
SKINDICHT® SHV

Categories:

  • LAPP > SKINDICHT cabling

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Benefits

  • Watertight
  • Gentle cable clamping
  • Robust
  • High strain relief

Application range

  • Watertight cable gland with conical sealing element.
  • Pumps
  • Floater switches

Product Make-up

  • PG connection thread

Note

  • Counter nut to be used: SKINDICHT® SM
  • Suitable accessory: SKINDICHT® SHV sealing cones
  • Example order designation:
    SHV 13.5/9/9
    13.5 = PG thread of compression screw
    9 = PG connection thread
    9 = clear opening of sealing cone

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • The installation dimensions
    can be found in appendix T21

Material

  • Body: nickel-plated brass
    Sealing cone: CR
    O-ring: NBR

Protection rating

  • IP 68 - 10 bar

Temperature range

  • -20°C to +80°C

DATASHEET - PDF

Title
Size
Type
52010690 52010690 EN_52010700.pdf
495 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
