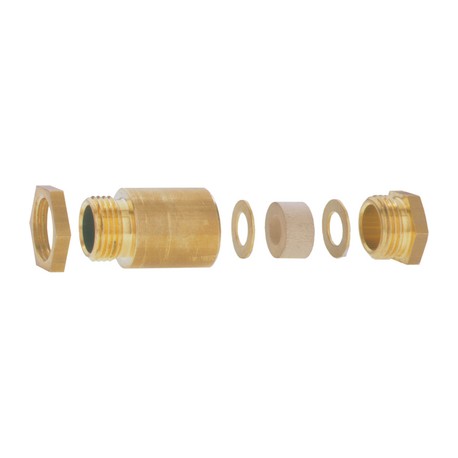

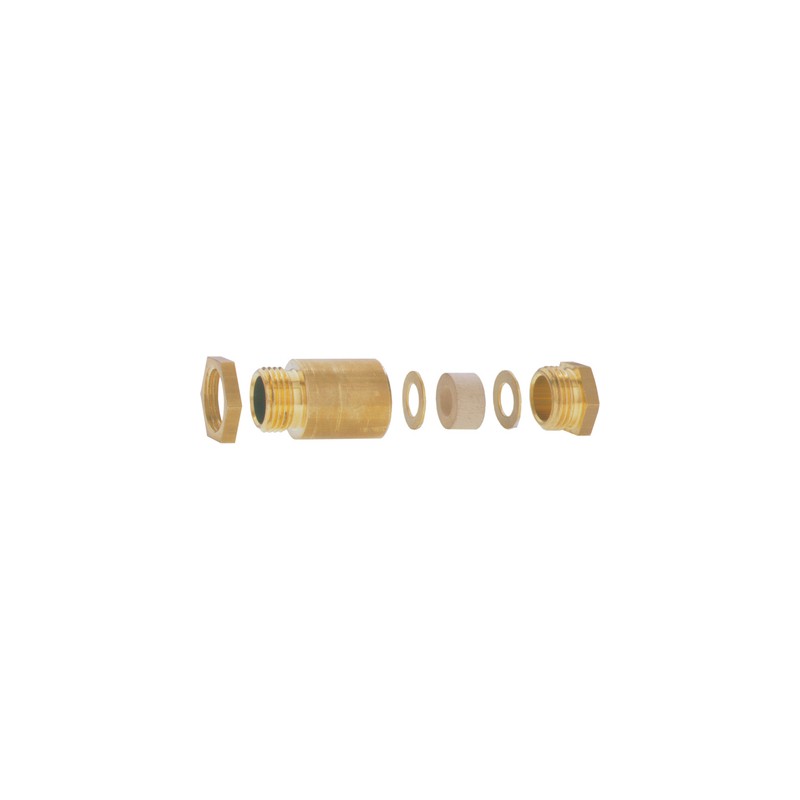

52006480 LAPP SKINDICHT SVRX 5641-W

Benefits

• EMC version for cables with large cross-sections
• SKINDICHT® SVRX 105 x 2 for cable diameters up to 83 mm

Application range

• The cable gland is in accordance with DIN 89280, with round intermediate supports made from brass, plain.
• Shipbuilding
• Off-Shore
• High-power drives
• Wind power plants

Note

• EMC counter nuts (with claw) SKINDICHT® SM-PE / SVRX M24-M56 for painted, anodised or powder-coated housing on request
• For more EMC cable glands, refer to SKINTOP® MS-SC-M and MS-M BRUSH, and compatible counter nut SKINDICHT® SM-PE-M

Product Make-up

• Type "W" for cable without screen (figure 1)
• Type "Z" for cables with screen (figure 2)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000441
• ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000441
• ETIM 6.0 Class-Description: Cable screw gland

Certifications

• DIN 89280

Material

• Body: Blank brass
  Seal: EPDM

Protection rating

• IP 56

Temperature range

• -20°C to +80°C
