LAPPSKINDICHT cabling52004300 LAPP SKINDICHT SKZ PG 13,5
LAPP 52004300 52004300 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

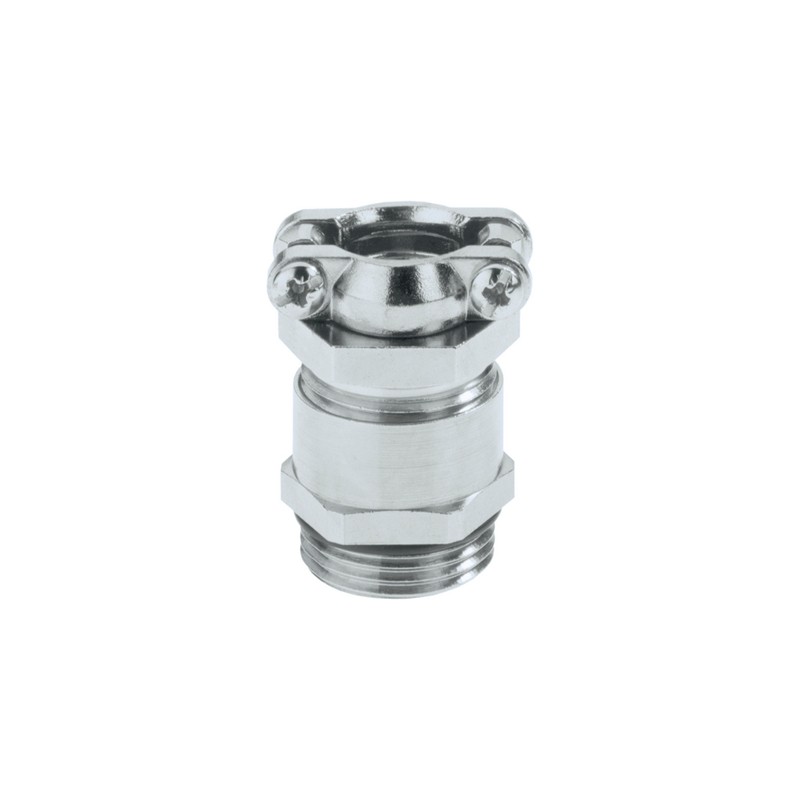

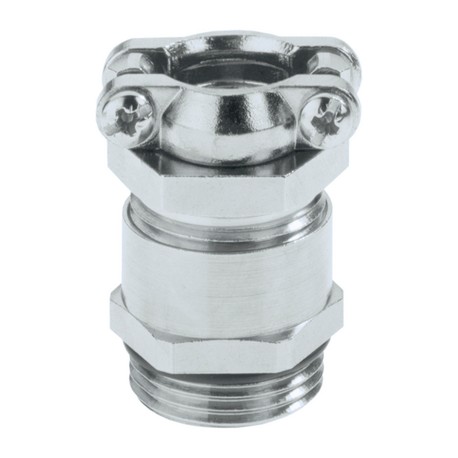

52004300 LAPP SKINDICHT SKZ PG 13,5

Reference: 52004300

Manufacturer: LAPP

Description:

SKINDICHT SKZ PG 13,5
SKINDICHT® SKZ

Categories:

  • LAPP > SKINDICHT cabling

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 245,83 €

Unit Price: 9,833 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Benefits

  • With incised sealing ring for adjustment to several cable diameters
  • High strain relief
  • High mechanical stability

Application range

  • Saddle clamp strain relief gland for harsh application conditions
  • Building sites
  • Plant engineering
  • Electric motor manufacturing

Product Make-up

  • PG connection thread

Note

  • SKINDICHT® SKZ-XL is similar to the SKINDICHT® SKZ, but has an extended connection thread for thick walls
  • Counter nut to be used: SKINDICHT® SM
  • Refer to SKINDICHT® EV for additional accessories

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • The installation dimensions
    can be found in appendix T21

Material

  • Body: nickel-plated brass
    Incised sealing ring: CR
    O-ring: NBR

Protection rating

  • IP 55

Temperature range

  • -20°C to +80°C

DATASHEET - PDF

Title
Size
Type
52004300 52004300 EN_52004280.pdf
540 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
