LAPPSKINDICHT cabling52001120 LAPP SKINDICHT SR PG 29/20
LAPP 52001120 52001120 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

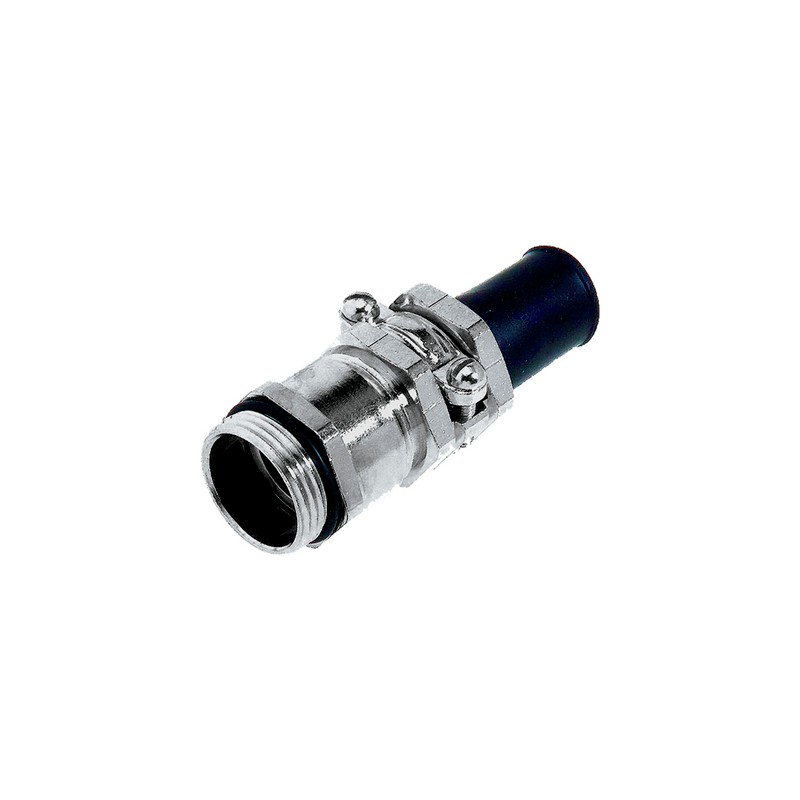

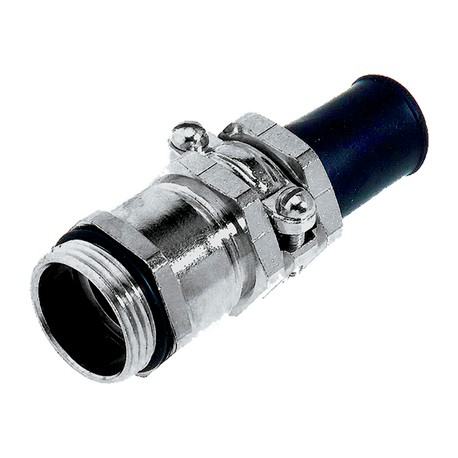

52001120 LAPP SKINDICHT SR PG 29/20

Reference: 52001120

Manufacturer: LAPP

Description:

SKINDICHT SR PG 29/20
SKINDICHT® SR

Categories:

  • LAPP > SKINDICHT cabling

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 215,66 €

Unit Price: 21,566 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Benefits

  • Reliable bending and anti-kink protection
  • High strain relief
  • Robust
  • For cables with large outer diameters
  • High degree of protection

Application range

  • Cables for electrical appliances and machinery that are moved under normal use must be protected against excessive bending as required in accordance with VDE 0700-1
  • Handheld device
  • Portable equipment
  • Building sites
  • Moving machine parts

Product Make-up

  • PG connection thread

Note

  • Counter nut to be used: SKINDICHT® SM
  • For EMC version, refer to SKINDICHT® SRE

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • The installation dimensions
    can be found in appendix T21

On request

  • Available with long connection thread

Material

  • Body: nickel-plated brass
    O-ring: NBR
    Anti-kink protection: CR

Protection rating

  • IP 65

Temperature range

  • -20°C to +80°C
