LAPPSingle cores4724072 LAPP H07Z1-K 1x4 GY

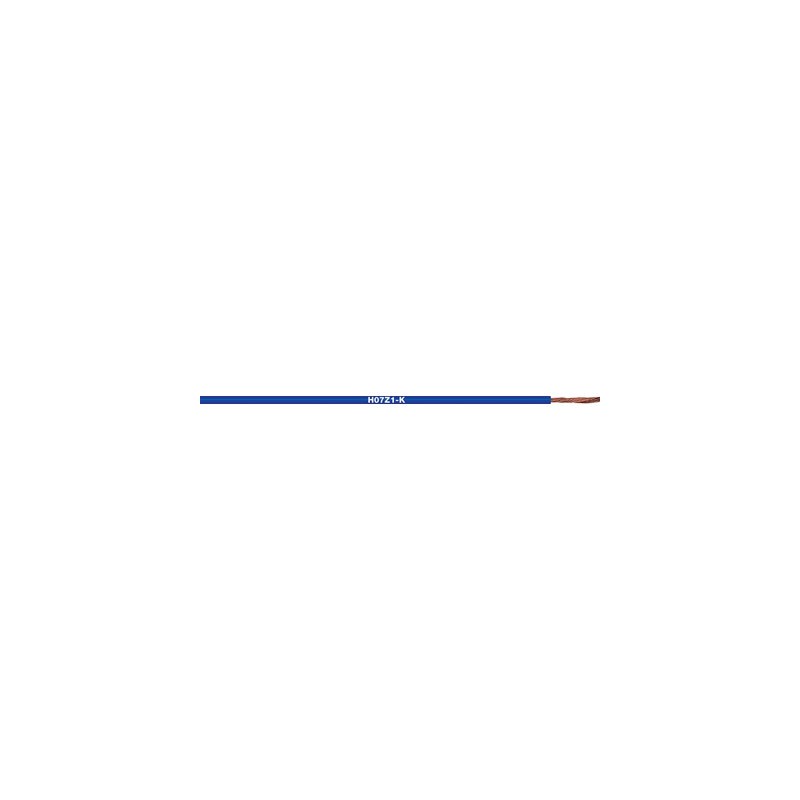

LAPP 4724072 4724072 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

4724072 LAPP H07Z1-K 1x4 GY

Reference: 4724072

Manufacturer: LAPP

Description:

H07Z1-K 1x4 GY
H07Z1-K

Categories:

  • LAPP > Single cores

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • Reviews
Guarantee, repair and return.

Total: 167,94 €

Unit Price: 1,6794 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

H07Z1-K, <HAR>, Halogen-free conductor cable up to +70°C, harmonised, for use in control cabinets, rated voltage 450/750V

  • CPR: Registration number and classification in www.lappkabel.com/cpr
  • Halogen-free and harmonised (HAR) up to +70°C
  • For higher operating temperatures and cross-sections of larger conductors see H07Z-K 90°C

proceeds

  • In the event of a fire, it protects human life and the environment thanks to the non-emission of acid gases.
  • Saving time and waste in assembly

Scope of use

  • For wiring lamps, devices, electrical panels and distribution boxes
  • For installation under tube, on or under plaster, as well as in ducts and closed trays
  • For buildings with a large concentration of people and material goods of value
  • Suitable for use in dry spaces
  • For higher operating temperatures and cross-sections of larger conductors see H07Z-K 90°C

Product features

  • The insulation material is free of halogens and other elements that can release corrosive gases in case of fire
  • Low emission of corrosive gases in case of fire
  • Low smoke emission in case of fire according to IEC 61034
  • Non-flame propagator, according to IEC 60332-1-2

Reference Standards / Approvals

  • <HAR>-approval according to EN 50525-3-31/ VDE 0285-525-3-31

Product composition

  • Conductor formed by fine stranded bare copper wires braided
  • Halogen-free mixing insulation

ETS Classification 5

  • ETIM 5.0 Class-ID: EC000993
  • ETIM Class 5.0 Description: Unipolar Cable

Driver training

  • Fine wire, according to VDE 0295 CIase 5 / IEC 60228 CIase 5

Minimum radius of curvature

  • According to EN 50565-1
  • 8 mm ≤: 4 x DE*/2 x DE**; 8 < DE≤ 12 mm: 5 x DE*/3 x DE**; >12 mm: 6 x DE*/4 x DE**

Nominal voltage

  • U0/U: 450/ 750 V

Test voltage

  • 2500 V

Load capacity

  • VDE 0298-4
  • EN 50565-1/ VDE 0298-565-1

Temperature range

  • During laying: +5°C bis +70°C Fixed installation: -40°C to +70°C
