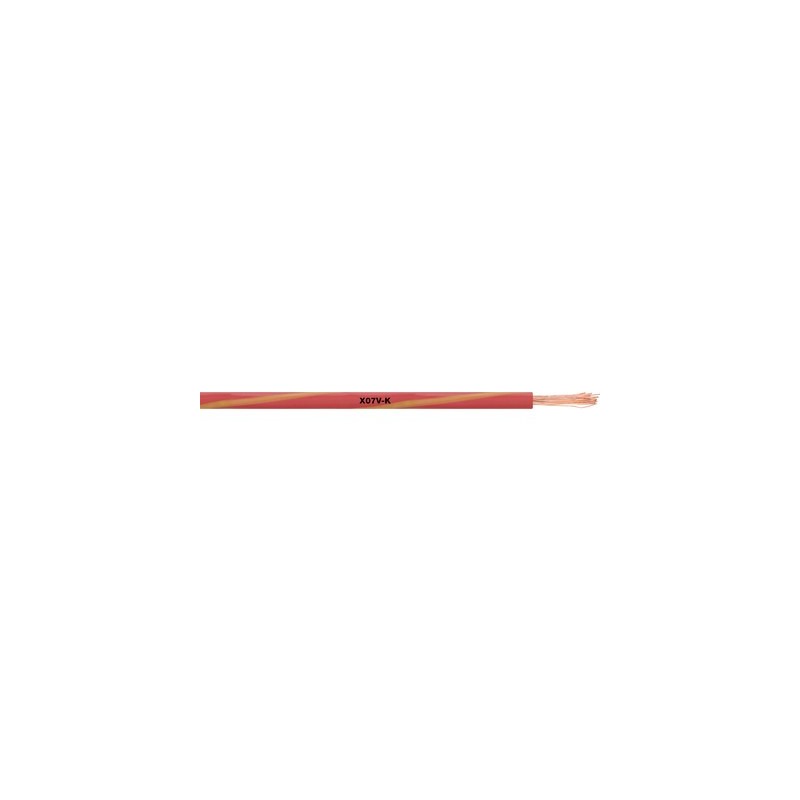

LAPP 4522451S 4522451S - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

4522451S LAPP X07V-K 2CHELIX 1X1,5 WHBN

Reference: 4522451S

Manufacturer: LAPP

Description:

X07V-K 2CHELIX 1X1,5 WHBN
X07V-K with Two-Color Spiral Marking

Categories:

  • LAPP > Single cores

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Applications

  • Installation in pipes, in/on/under plaster, as well as in closed cable ducts
  • For direct installation on platforms, channels and pallets only for potential equalization

Features

  • Do not support combustion in accordance with IEC 60332-1-2
  • Coil: d1 = 18 mm; d2 = 200 mm; b = 85 mm

Standards / Certificates of Conformity

  • Based on EN 50525-2-31

Design

  • Conductors made of copper thin wires, flexibility class 5 in accordance with IEC 60228 IEC 60228
  • Conductor insulation: PVC-based
  • Marking spiral, color

ETIM Classification 5

  • ETIM 5.0 Class-ID: EC000993
  • ETIM 5.0 Class-Description: Solid wires

ETIM Classification 6

  • ETIM 6.0 class designation: EC000993
  • ETIM Class 6.0 Description: Solid Wire

Conductor Construction

  • Made of thin copper wires, flex class 5 in accordance with VDE 0295/ IEC 60228

Minimum bending radius

  • 4 x D, 2 x D for a short time

Rated Voltage

  • U0/U: 450/750 V

Test Voltage

  • 2500 B

Current Load Capacity

  • VDE 0298 Part 4
  • EN 50565-1/ VDE 0298-565-1

Temperature range

  • Stationary application: -40 to +70 °C
