LAPPEPIC other connectors 44428233 LAPP EPIC SOLAR 4Plus M 2.5mm²

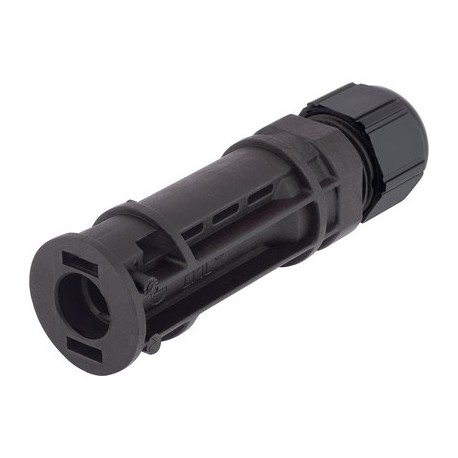

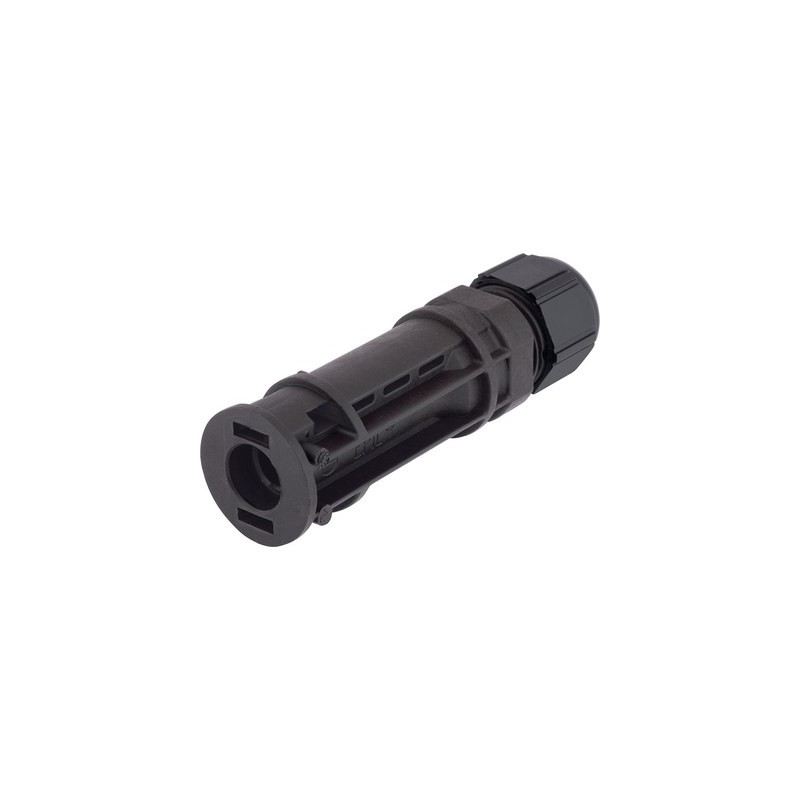

LAPP 44428233 44428233 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

44428233 LAPP EPIC SOLAR 4Plus M 2.5mm²

Reference: 44428233

Manufacturer: LAPP

Description:

EPIC SOLAR 4Plus M 2.5mm²
EPIC® SOLAR 4Plus M

Categories:

  • LAPP > EPIC other connectors

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

EPIC® SOLAR 4Plus M

  • Connection system with 4mm hook coble
  • For photovoltaic systems up to 1.5kV
  • Made in Germany

proceeds

  • Low resistance contact for efficient power transmission
  • Crimped terminal for secure on-site mounting
  • Suitable for various ÖLFLEX® SOLAR cables
  • Reliable connection, only possible when unlocking with tool, according to NEC standard
  • Tested by TÜV according to IEC 62852: connector for DC applications in photovoltaic systems

Scope of use

  • Photovoltaic plants
  • Crystalline and thin-film applications
  • Solar trackers

Product features

  • Connection system with 4mm hook coble
  • Maximum crimping connection of 10mm² for high intensities
  • 1,500 V system voltage for modern high-power photovoltaic systems
  • TÜV Rheinland Certificate No.:
    R 60134622

ETS Classification 5

  • ETIM 5.0 Class-ID: EC002635
  • ETIM 5.0 Class Description: Circular Connector (Industrial Connector)

ETTIM Rating 6

  • ETIM 6.0 Class-ID: EC002635
  • ETIM 6.0 Class-Description: round connector (industrial connector)

Nominal voltage

  • 1.5 kV

Voltage test

  • 16 kV

Degree of contamination

  • 3

Flammability

  • UL94 V-0

Contact resistance

  • < 0.5 mOhm

Material

  • Polyamide PA

Degree of protection:

  • IP68 (10h/1m)

Connection cycles

  • 100

Degree of protection

  • Ii

Temperature range

  • -40°C to +105°C

DATASHEET - PDF
