LAPPEPIC rectangular44424017 LAPP Modular MC MCS HHC2

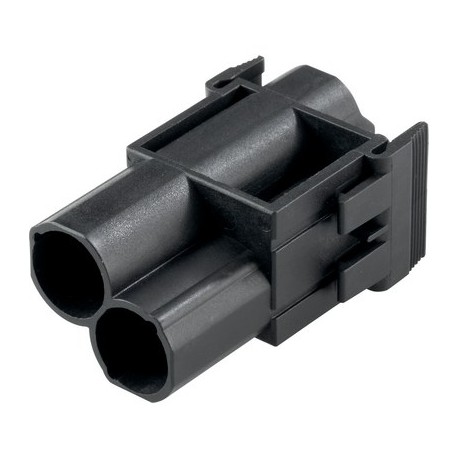

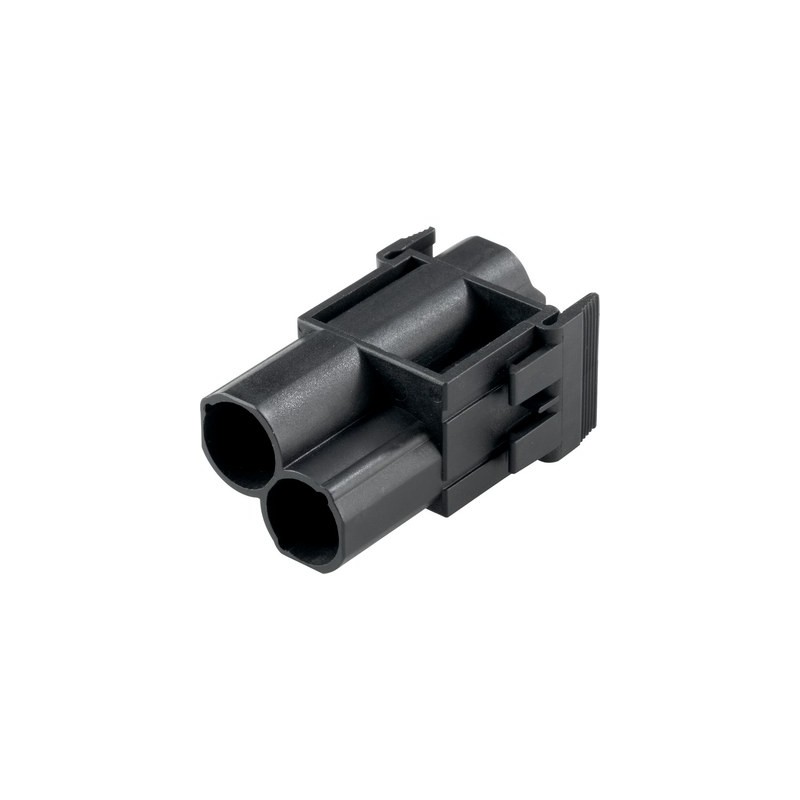

LAPP 44424017 44424017 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

44424017 LAPP Modular MC MCS HHC2

Reference: 44424017

Manufacturer: LAPP

Description:

Modular MC MCS HHC2
Power module: HHC2

Categories:

  • LAPP > EPIC rectangular

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 48,75 €

Unit Price: 4,875 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Benefits

  • High current transfer
  • The mix of different functions in one plug guarantees high flexibility
  • Crimp connection for permanent vibration proof contacting

Application range

  • Mechanical and plant engineering
  • Robotics industry
  • Control engineering
  • Renewable energy

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 1000

Rated impulse voltage

  • 8 kV

Rated current (A)

  • 150

Pollution degree

  • 3

Number of contacts

  • 2

Termination methods

  • Crimp termination: 16 mm² ... 35 mm²

Material

  • PA6

Cycle of mechanical operation

  • 500

Temperature range

  • -40°C to +125°C
