LAPPFieldbus Modules passive22260844 LAPP AB-C4-10,0PVC-M8FA

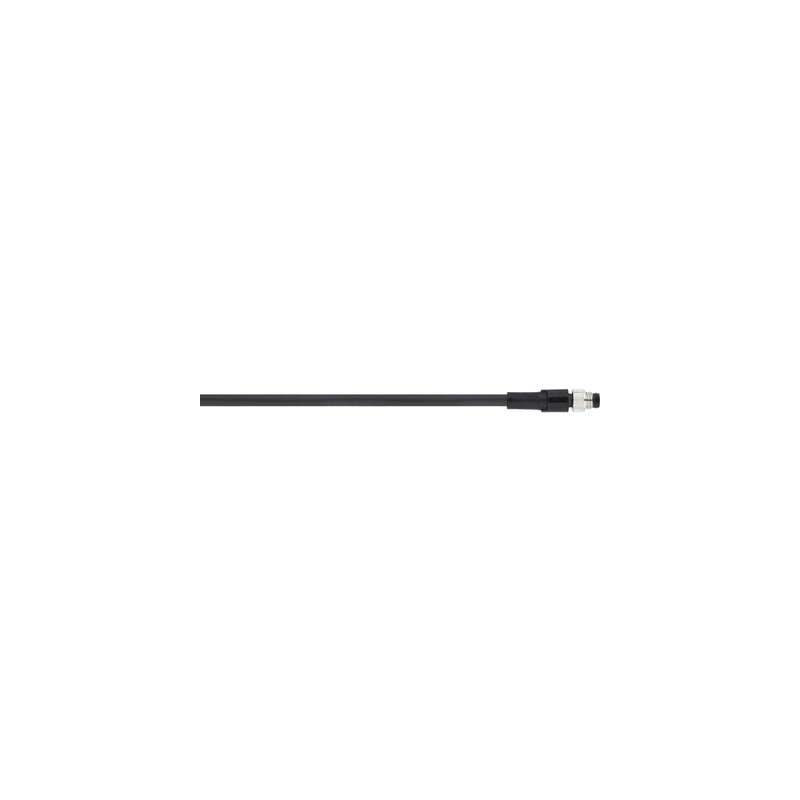

LAPP 22260844 22260844 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

22260844 LAPP AB-C4-10,0PVC-M8FA

Reference: 22260844

Manufacturer: LAPP

Description:

AB-C4-10,0PVC-M8FA
UNITRONIC® SENSOR PVC M8

Categories:

  • LAPP > Fieldbus Modules passive

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 19,37 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Benefits

  • Cost-saving due to quick and easy installation
  • Space-saving due to compact dimensions.
  • Fast and easy error tracking

Application range

  • For medium mechanical stress in dry conditions

Product features

  • Partly oil and chemical resistant
  • PWIS-free
  • Including tag carrier

Norm references / Approvals

  • Flame-retardant according to style 2464
  • UL File Number: E249137

Product Make-up

  • Core cross section: 0.25 mm2
  • Colour-code:
    3-pin: bn (1), bu (3), bk (4)
    4-pin: bn (1), wh (2), bu (3), bk (4)
  • Outer sheath: PVC, black

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001855
  • ETIM 5.0 Class-Description: Sensor-actuator patch cord

Material

  • Contact: CuSn
    Contact surface: Ni/Au
    Knurl: Zinc die-cast, nickel-plated
    Gripping body: TPU, flame-retardant, self-extinguishing

Protection rating

  • IP65/IP67/IP68

Ambient temperature (operation)

  • Plug/socket -25°C to +90°C
  • Fixed installation -25°C to +80°C
    Flexing -5°C to +80°C

Coding

  • A-standard

Rated current (A)

  • 4 A
