LAPPFieldbus Modules passive22260611 LAPP AB-C12-5,0PUR-M16FA

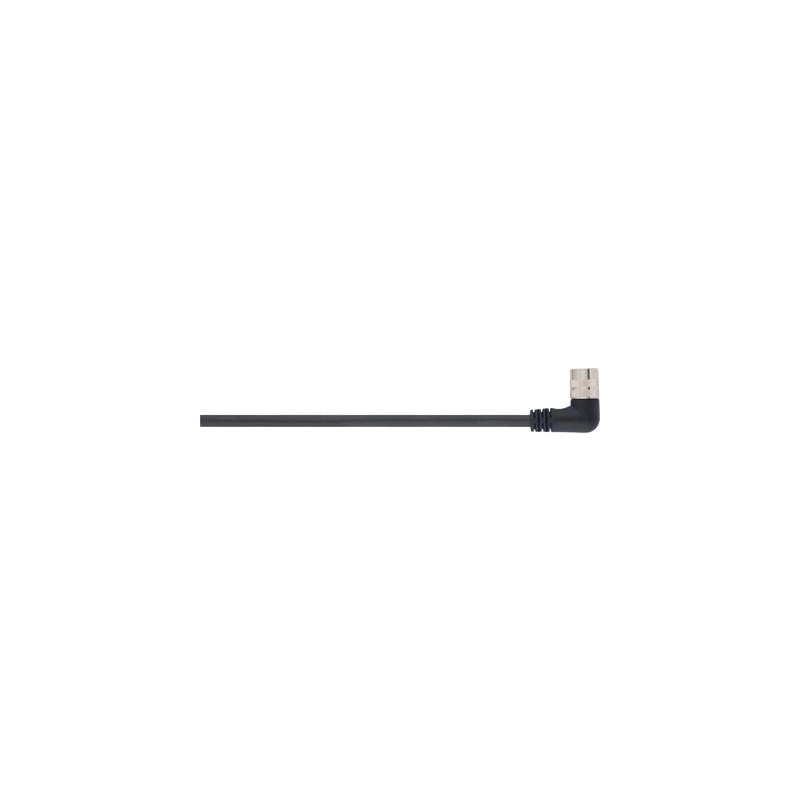

LAPP 22260611 22260611 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

22260611 LAPP AB-C12-5,0PUR-M16FA

Reference: 22260611

Manufacturer: LAPP

Description:

AB-C12-5,0PUR-M16FA
UNITRONIC® SENSOR M12 M16

Categories:

  • LAPP > Fieldbus Modules passive

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 80,45 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Benefits

  • Connecting cable for M8 boxes with 4 to 10 slots
  • Instead of numerous individual conductors,
    one master cable is laid to the control unit
  • Hybrid cable for signal and power transmission

Product features

  • Angled socket M12 on free conductor end, halogen-free
  • Angled socket M16 on free conductor end
  • Suitable for drag chains
  • PWIS-free

Product Make-up

  • Core cross-section:
    M16: power: 0.75 mm², signal: 0,34mm²;
    M12: 0,14mm²
  • Core insulation: PP (M12), PVC (M16)
  • Outer sheath: PUR, black

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001855
  • ETIM 5.0 Class-Description: Sensor-actuator patch cord

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001855
  • ETIM 6.0 Class-Description: Sensor-actuator patch cord

Material

  • Contact: CuZn
    Contact surface: Ni/Au
    Knurl: Nickel-plated brass
    Gripping body: TPU, flame-retardant, self-extinguishing

Protection rating

  • IP 67
  • IP 65/IP 67/IP 68 (M12)

Ambient temperature (operation)

  • Plug/socket -25°C to +90°C
  • Fixed installation -40°C to +90°C
    -40°C to +80°C (M12)
    Flexing -5°C to 80°C

Coding

  • A-standard

Rated current (A)

  • 4 A
  • 1,5 A (M12)

DATASHEET - PDF
