LAPPFieldbus Modules passive22260500 LAPP AB-C3-M12Y-2,0PUR

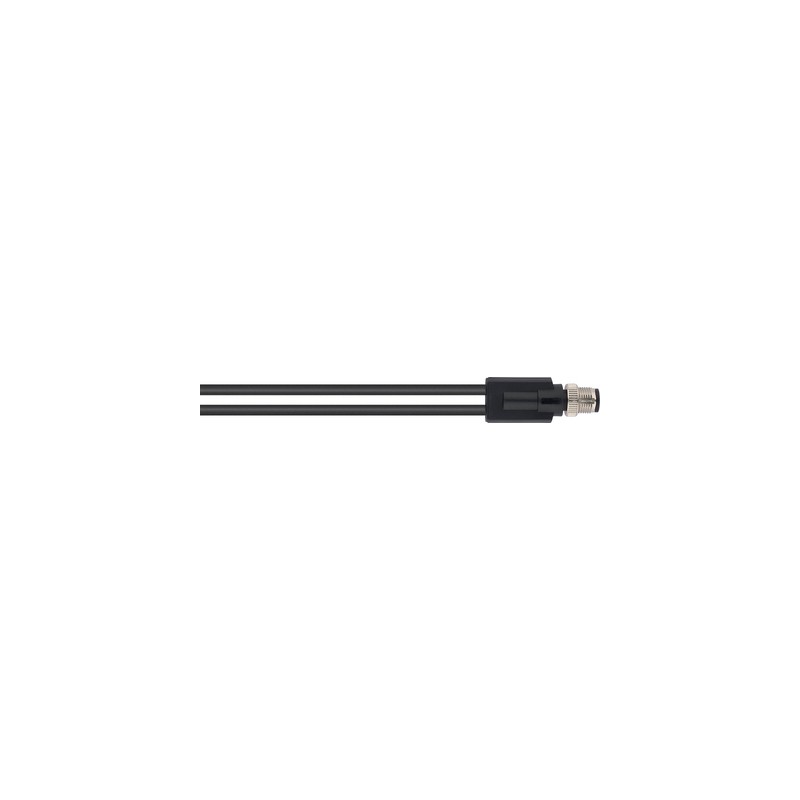

LAPP 22260500 22260500 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

22260500 LAPP AB-C3-M12Y-2,0PUR

Reference: 22260500

Manufacturer: LAPP

Description:

AB-C3-M12Y-2,0PUR
UNITRONIC® SENSOR M12Y

Categories:

  • LAPP > Fieldbus Modules passive

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 16,55 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Benefits

  • Cost-saving due to quick and easy installation
  • Space-saving due to compact dimensions.

Product features

  • 4-pin M12Y plug on
    free conductor end
  • Including tag carrier
  • PWIS-free
  • Suitable for drag chains

Product Make-up

  • 3 x 0.34 mm²
  • Core colours: bn, bu, bk
  • Outer sheath: PUR halogen-free, black

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001855
  • ETIM 5.0 Class-Description: Sensor-actuator patch cord

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001855
  • ETIM 6.0 Class-Description: Sensor-actuator patch cord

Material

  • Contact: CuSn
    Contact surface: Ni/Au
    Knurl: Zinc die-cast, nickel-plated
    Gripping body: TPU, flame-retardant, self-extinguishing

Protection rating

  • IP65/IP67/IP68

Ambient temperature (operation)

  • Plug/socket -25°C to +90°C
  • Fixed installation -40°C to +80°C
    Flexing -25°C to +80°C

Coding

  • A-standard

Rated current (A)

  • 4 A
