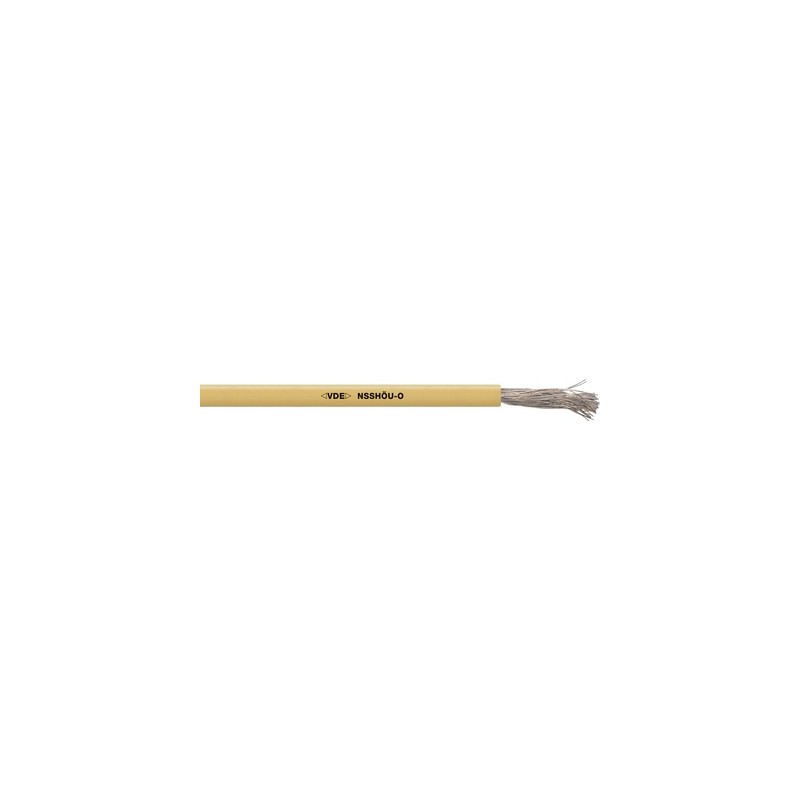

LAPP 16005283 16005283 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

16005283 LAPP NSSHÖU-J 4G10

Reference: 16005283

Manufacturer: LAPP

Description:

NSSHÖU-J 4G10
NSSHÖU

Categories:

  • LAPP > Rubber cables

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Benefits

  • For use at very high mechanical stress
  • Single-core design suitable for robust connection cables for welding equipment
  • Not antistatic

Application range

  • For mining as well as surface mining
  • Connection for moving equipment and machinery
  • Under extreme environmental conditions
  • Suitable for outdoor use, as well as in dry and damp interiors

Product features

  • Flame retardant acc. to IEC 60332-1-2
  • Oil-resistant according to EN 60811-404
  • High notch resistance
  • Abrasion-resistant

Norm references / Approvals

  • <VDE> NSSHÖU cable type approval according to VDE 0250-812

Product Make-up

  • Fine-wire strand made of tinned-copper wires
  • Core insulation: rubber compound, type 3GI3
  • Inner sheath: rubber-compound, type GM1b or 5GM5
  • Outer sheath: rubber compound, type 5GM5

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000057
  • ETIM 5.0 Class-Description: Low voltage power cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000057
  • ETIM 6.0 Class-Description: Low voltage power cable

Core identification code

  • Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
  • From 6 cores: black with white numbers

Conductor stranding

  • Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

  • Flexible use: 10 x outer diameter
  • Fixed installation: 5 x outer diameter

Nominal voltage

  • U0/U: 600/1000 V

Test voltage

  • 3000 V

Protective conductor

  • G = with GN-YE protective conductor
  • X = without protective conductor

Current rating

  • According to VDE 0298 Part 4, Table 15

Temperature range

  • Occasionally moved: -25°C up to +90°C
  • Fixed installation: -40°C to +90°C
