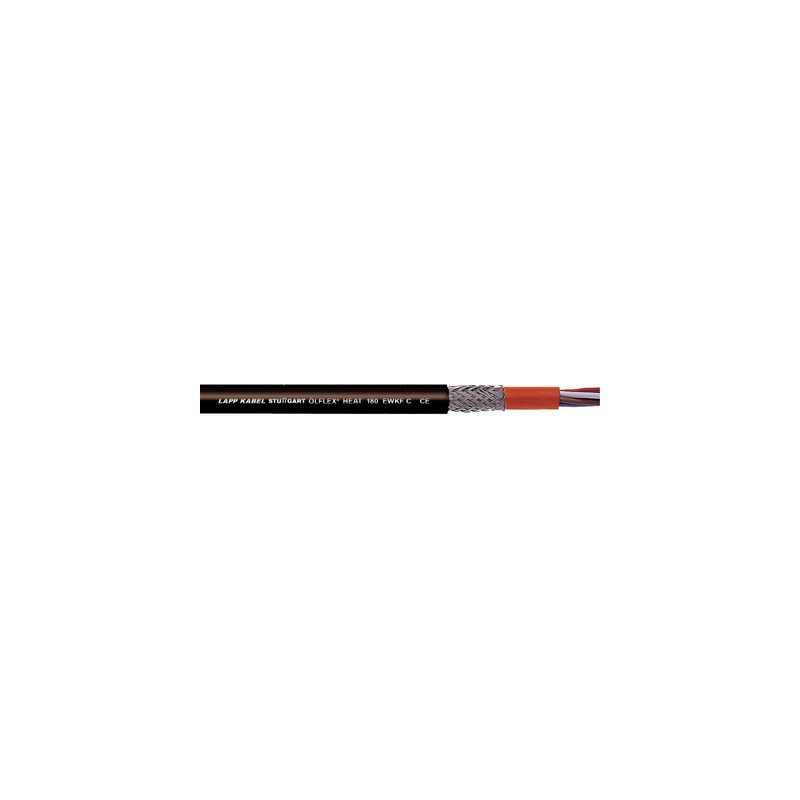

LAPP 00463313 00463313 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

00463313 LAPP ÖLFLEX HEAT 180 EWKF C 4G6

Reference: 00463313

Manufacturer: LAPP

Description:

ÖLFLEX HEAT 180 EWKF C 4G6
ÖLFLEX® HEAT 180 EWKF C

Categories:

  • LAPP > ÖLFLEX HEAT Temperature measurement cables

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Benefits

  • Longer durability in harsh applications than conventional silicone cables
  • Notch and tear-resistant outer sheath material reduces mechanical damage
  • Copper braiding screens the cable against
    electromagnetic interference
  • Flexibility simplifies installation where space is limited
  • Due to the use of special additives in EWKF silicone, armoured cable versions will not be required

Application range

  • Areas with high ambient temperatures and occasionally mechanical stress
  • Typical fields of application
    - Steel, ceramic and iron works
    - Bakery equipment and industrial furnaces
    - Electric motor industry
    - Sauna/solarium construction
    - Thermal and heating elements
    - Lighting technology
    - Ventilator engineering
    - Air-conditioning technology
    - Galvanisation technology

Product features

  • EWKF:
    Initial tear propagation and notch resistance
  • Halogen-free (IEC 60754-1), no corrosive gases (IEC 60754-2), flame-retardant (IEC 60332-1-2)
  • Good hydrolysis and UV-resistance
  • Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
  • Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Product Make-up

  • Fine-wire, tinned-copper conductor
  • Cores twisted together
  • Silicone-based core insulation
  • Silicone-based inner sheath
  • Tinned-copper screen braiding,
    interleaved plastic foil wrapping
  • Outer sheath: silicone-based EWKF, notch-resistant, black

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001578
  • ETIM 5.0 Class-Description: Flexible cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001578
  • ETIM 6.0 Class-Description: Flexible cable

Core identification code

  • Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
  • From 6 cores: black with white numbers

Conductor stranding

  • Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

  • Occasional flexing: 20 x outer diameter
  • Fixed installation: 6 x outer diameter

Nominal voltage

  • U0/U: 300/500 V

Test voltage

  • 2000 V

Protective conductor

  • G = with GN-YE protective conductor
  • X = without protective conductor

Temperature range

  • -60 °C to +180 °C
    (adequate ventilation required)
