ELIWELLPXVE03S020000 ELIWELL VEE PULSES R744 CO2-HOLE 2 Electronic controls for automation

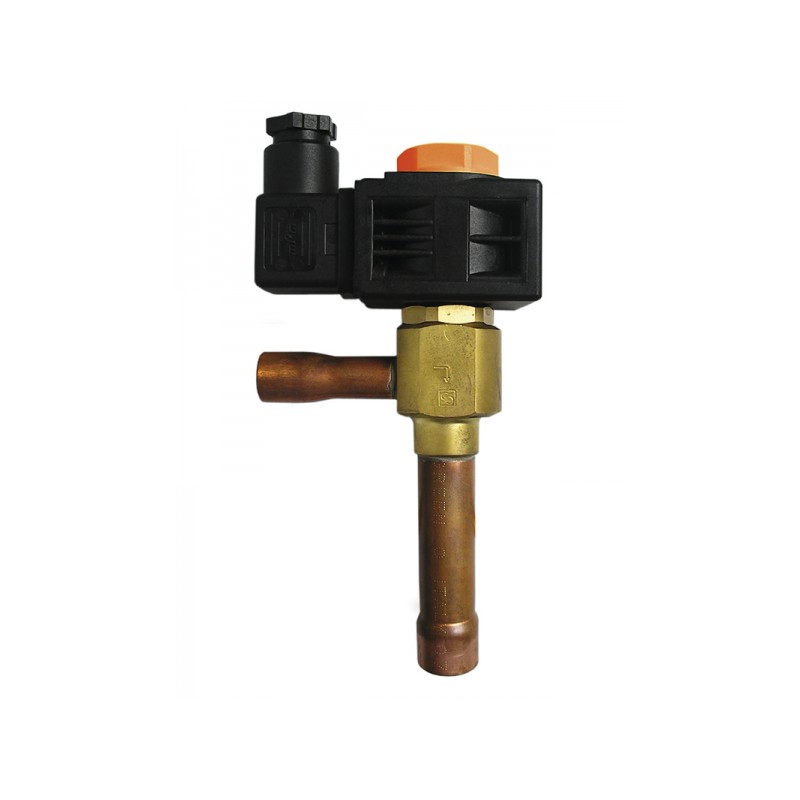

ELIWELL PXVE03S020000 PXVE03S020000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PXVE03S020000 ELIWELL VEE PULSES R744 CO2-HOLE 2 Electronic controls for automation

Reference: PXVE03S020000

Manufacturer: ELIWELL

Description:

VEE PULSES R744 - CO2-HOLE # 2 Electronic controls for automation
VALVE PXV (CO2) 3/8"-1/2" WITH HOLE Nº2

Categories:

  • ELIWELL

Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

EXPANSION VALVES ELECTRONIC PULSE


The valve PXV, are solenoid valves
operation pulses. Is controlled
by regulator Eliwell V800 or IWK/V.


Have interchangeable orifices.


Capacity of up to 20KW.


Optimises the injection of the liquid refrigerant
the evaporator increasing its efficiency.


Compatibile with the largest part of
refrigerants available.


230Vac and 24Vac available.


Reduces the risk of fluid return to the
compressor.


Improves the control of overheating the
vary the conditions of work.

ModelType holeDiameter of hole (mm)ConnectionsNominal capacity (KW)
INOUTR22R134aR404A - R507R407CR410A
PXVB03S010000010,53/8”1/2”1,00,90,81,11,3
PXVB03S020000020,73/8”1/2”2,52,01,92,43,0
PXVB03S030000030,83/8”1/2”2,52,01,92,43,0
PXVB03S040000041,13/8”1/2”3,93,22,93,84,8
PXVB03S050000051,33/8”1/2”6,75,65,16,78,4
PXVB03S060000061,73/8”1/2”9,27,77,09,111,4
PXVB04S070000072,31/2”5/8”14,712,211,315,318,2
PXVB04S080000082,51/2”5/8”17,414,713,517,721,6
PXVB04S090000092,71/2”5/8”19,316,315,019,624,1

The power ratings refer to:

  • Evaporation temperature Tevap = +5°C
  • Condensing temperature Tcond = +32°C
  • Temperature of the liquid at valve inlet Tliq = +28°C

Models for R744-CO2

ModelType holeDiameter of hole (mm)ConnectionsNominal capacity (KW)
INOUTR744
PXVE03S010000010,53/8”1/2”2,9
PXVE03S020000020,73/8”1/2”5,9
PXVE03S030000030,83/8”1/2”7,8
PXVE03S040000041,13/8”1/2”11,8
PXVE03S050000051,33/8”1/2”20,6
PXVE03S060000061,73/8”1/2”32,3
PXVE04S070000072,31/2”5/8”58,8

The power ratings refer to:

  • Evaporation temperature Tevap = -35°C
  • Condensation temperature Tcond = -5 °C
  • Temperature of the liquid at valve inlet Tliq = -31 °C
  • ΔP=18Bar

COILS

MODELCODEVOLTAGE V
PXV 220/230 ACPXVB0ARA60000220/230 BC
PXV 220/230 AC (R744-CO2)PXVE0ARA60000220/230 BC
CONNECTOR IP65PXVB0AR020000-

Characteristics

ReferencePXVE03S020000
ModelPXV PULSE-WITH HOLE No. 2
GasR744-CO2
Options GasR744-CO2
Hole2

DATASHEET - PDF

Title
Size
Type
2: PXVE03S020000 ELIWELL VEE PULSES R744 CO2-HOLE 2
77 Kbytes
PDF CATALOGUE ELIWELL EN
21 Mbytes
