ELIWELLIDP2EDB700000 ELIWELL IDPlus 974 NTC 2Hp 230Vac BUZ Electronic controls for automation

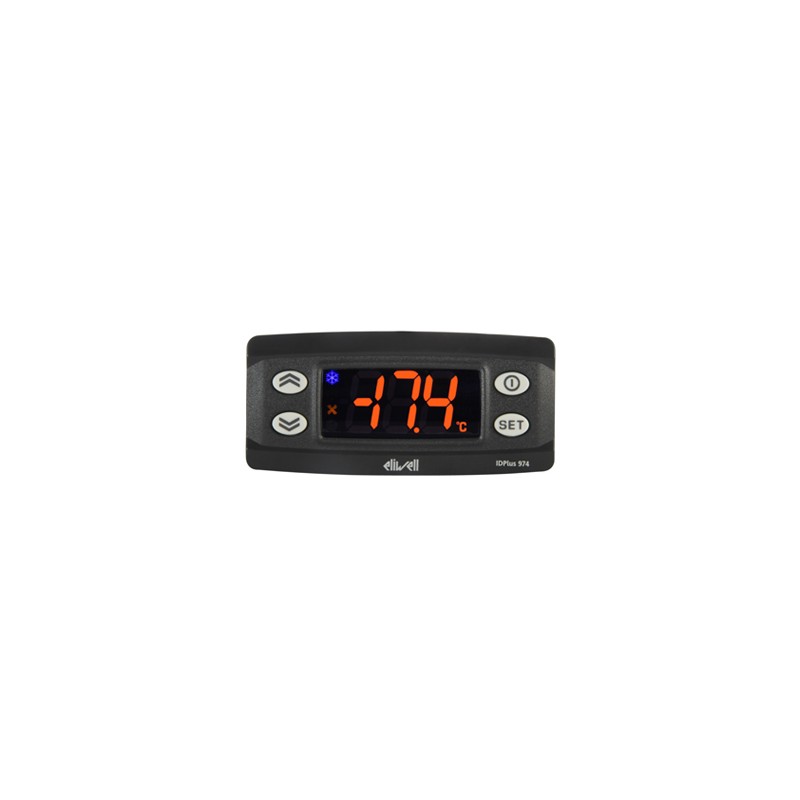

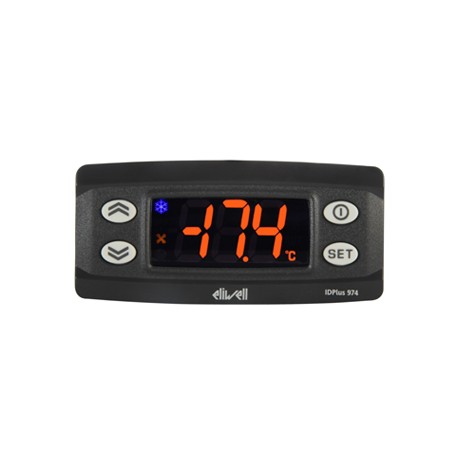

ELIWELL IDP2EDB700000 IDP2EDB700000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

IDP2EDB700000 ELIWELL IDPlus 974 NTC 2Hp 230Vac BUZ Electronic controls for automation

Reference: IDP2EDB700000

Manufacturer: ELIWELL

Description:

IDPlus 974 NTC 2Hp 230Vac BUZ Electronic controls for automation
IDPlus 974 NTC 2Hp 230Vac BUZ

Categories:

  • ELIWELL

Brand new product in its original packaging covered by the warranties and certifications provided by ELIWELL

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Go to successor article:IDN974PED307000IDN974PED307000

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Part Number
IDP2EDB700000
Operating Temperature
-5...55
Storage Temperature
-30…85
Ambient Humidity
10…90% RH (non-condensing)
Power Supply
230Vac
Power Draw
3W max
Display Range
NTC: -50,0…+110,0 °C
PTC: -55,0…+140,0 °C
Pt1000: -55,0...+150,0 °C
N. Analogue Inputs
2
Analogue Inputs
2x PTC or NTC or Pt1000
N. Digital Inputs
1
Digital Inputs
1x SELV
N. Digital Outputs
3
Digital Outputs
1x SPDT 1/2Hp 8(4)A 250Vac
1x SPST 2Hp 12(12)A 250Vac
1x SPST 5(2)A 250Vac
Display
LED 3 digits + sign
Resolution ( 0.1°C with decimal point )
1 or 0,1°C
Measurement Range
-55,0…+150,0°C
Accuracy
better than 0,5% of full scale + 1 digit
Connectivity
TTL port for connection to UnicardCopy Card or TelevisSystemModBus monitoring device
N. Serial Ports
1
Serial Ports
1x TTL
Installation
panel, 71x29mm
Accessories
Unicard USB/TTL
Functions
HACCP, DCC, Easy Map, COH, DI1 configurable as analogic probe
Weight (g) Net
230
Width (L) Net
79
Height (Ht) Net
37
Depth (P) Net
59
Weight (g) Packaging
247
Width (L) Packaging
130
Height (Ht) Packaging
90
Depth (P) Packaging
50

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE ELIWELL EN
21 Mbytes
