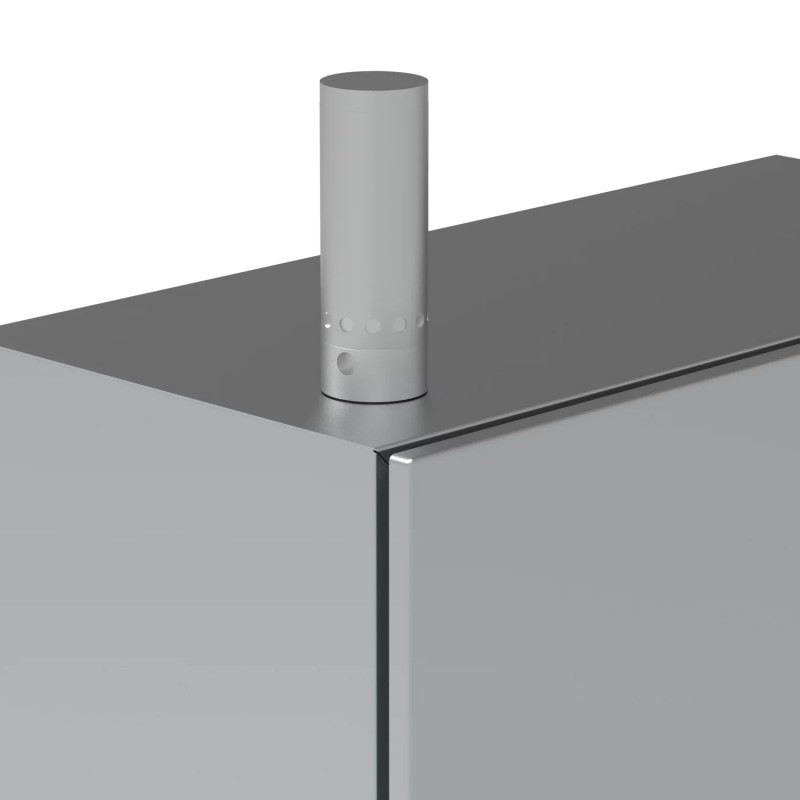

ELDON HT4630 HT4630 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

HT4630 ELDON Vortex cooler 586W, 184 HT4630

Reference: HT4630

Manufacturer: ELDON

Description:

Vortex cooler 586W, 184 HT4630
Refr. Vortex, 586 W, 184, flow rate 850 l/min, aluminium, IP66
Vortex cooler 586W, 184, air flow 850 l/min, Aluminium, IP66

Categories:

  • Cabinet enclosures > Air conditioner (switchgear cabinet)
  • ELDON > General Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.052,76 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Compact and reliable way to cool enclosures. It produces cold air from compressed air, with no moving parts. The easy mounting, through a standard electrical knockout, makes this solution especially suitable to be installed, even when the enclosures are already in the field. For a continuous Vortex operating, relative humidity inside the enclosure is maintained at aproximately 45%, no moisture condenses inside the enclosure (the enclosure must be sealed). Suitable even for ambient temperatures up to 93 °C, the internal components can withstand these high temperatures, and includes a silencer to minimize the noise. The coolers must be installed vertically to maintain the protection degree.
  • Material: Internal vortex tube manufactured in stainless steel. External cover, BP TYPE 12 in plastic and aluminium, BP TYPE 4 in aluminium, and TYPE 4X in stainless steel.
  • Protection: Depending on type, up to IP 66 TYPE 4X.
  • Pack quantity: Vortex cooler with mounting accessories.
  • The coolers must be installed vertically to maintain the protection degree
  • Pack quantity: Vortex cooler with mounting accessories
  • High temperature vortex cooler, with no moving parts and a high IP 66 protection degree
  • The vortex cooler provides a maintenance free cooling solution which also reduces the relative humidity within the enclosure
  • The vortex cooler can be installed on the enclosure easily, in environments of up to 93°C, reducing the required installation time
  • The maintenance free cooling solution prevents unnecessary downtime
  • This reliable solution reduces the customer's labour cost due to the ease of installation
  • The vortex cooler will be a good thermal management solution for high temperature environments such as a steel mill
  • t is recommended to install a thermostat, BPT, as well as an air distribution kit, BPA
  • Cooling capacity is calculated with pressured air being 20°C and having 7-bar pressure
  • Silencer included: Yes; Low pressure relief valve: Yes; Instalation cut-out diam. (mm): 48
Atributo del producto Valor
Height184mm
Width63mm
Depth63mm
MaterialAluminum
Nominal Capacity Watts586W
FinishMill
Airflow @6.9 Bar850SLPM
Noise Level80dB(A)
Weight0.85kg
UPC783510483913
EAN8713574191525
Standard Packaging Quantity1
Packing Quantity1

ETIM for HT4630 Cabinets and enclosures (EC000855)

Feature nameModel (EF000010)
Feature valueAir/air
Feature nameWith temperature control (EF000745)
Feature valueNo
Feature nameFunction master/slave (EF007183)
Feature valueYes
Feature nameWidth (EF000008)
Feature value64.00 mm
Feature nameHeight (EF000040)
Feature value184.00 mm
Feature nameDepth (EF000049)
Feature value64.00 mm
