ELDONStainless steel enclosuresADIS05040 ELDON Inner door, 500x400 ADIS05040

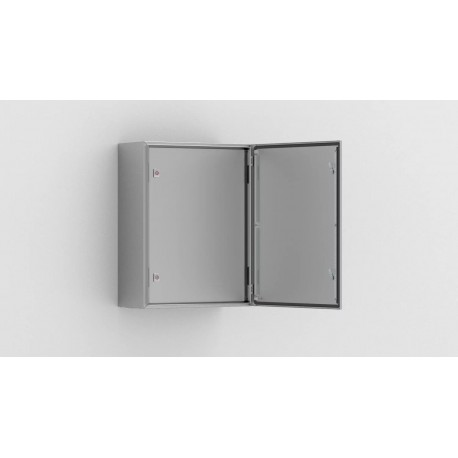

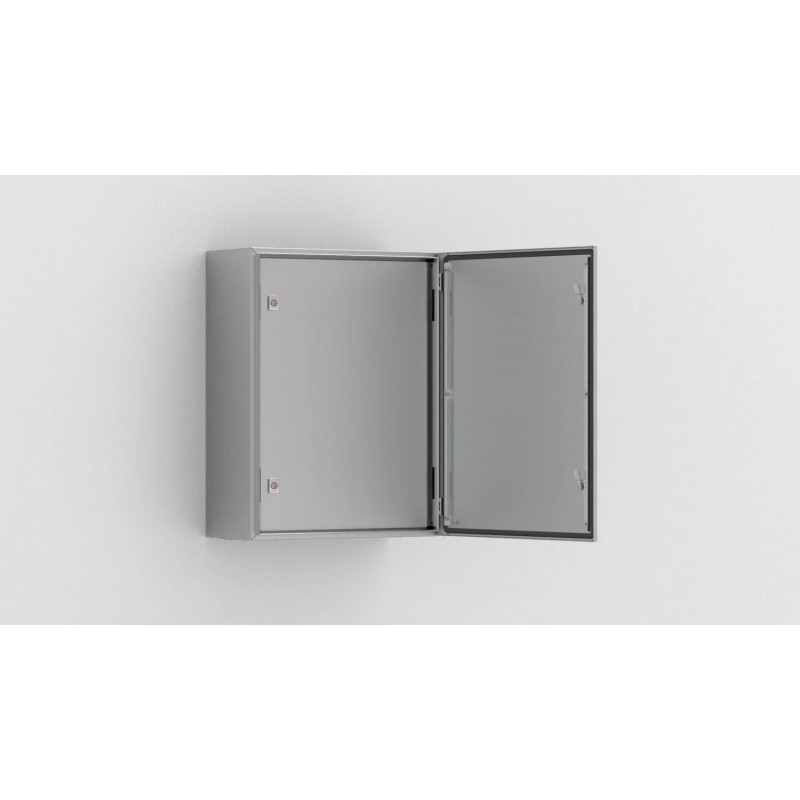

ELDON ADIS05040 ADIS05040 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ADIS05040 ELDON Inner door, 500x400 ADIS05040

Reference: ADIS05040

Manufacturer: ELDON

Description:

Inner door, 500x400 ADIS05040
Interior door, 500x400, 304 stainless steel lock double-warded 3 mm
Inner door, 500x400, Stainless 304, 3mm double bit lock

Categories:

  • Cabinet enclosures > Door/operating panel (switchgear cabinet)
  • ELDON > Stainless steel enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 120,26 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: For controls, meters, lamps, etc. Hinges can be mounted to allow left or right hand opening (Machining is required). Double-bit 3 mm lock, 800 mm high doors and above have 2 locks. Usable depth between inner and external door: 35 mm, adjustable depth position with AMG accessory. Workable area: H-55, W-108. 19" version available on request.
  • Material: Door 1.5 mm AISI 304 stainless steel and vertical top and bottom profiles 2 mm, AISI 304 stainless steel.
  • Protection: IP 2XC.
  • Finish: 400 pre-grained stainless steel.
  • Pack quantity: Inner door, two vertical profiles, top and bottom profiles and mounting accessories.
  • A plain door to be mounted inside a wall mounted enclosure
  • Additional mounting surface providing two levels of access
  • Non authorized personnel have access to the controls on the inner door only
  • This accessory is often used in combination with a glazed door (ADCS)
  • To order 19-inch version, please add I19 to the catalogue no, e.g. ADIS04030I19 (ot suitable for AFS)
Atributo del producto Valor
Height445 mm
Width292 mm
Depth15 mm
Door Size445 x 292 mm
Latch Quantity1
Enclosure MaterialMild Steel
Product FamilyWall-Mounted
MaterialStainless Steel 304
FinishBrushed
ColorUnpainted
UPC783510116958
EAN8713574212602
Standard Packaging Quantity1.0000
Packing Quantity1.0000

ETIM for ADIS05040 Cabinets and enclosures (EC000747)

Feature nameModel (EF000010)
Feature valueInner door
Feature nameVersion as glazed door (EF006966)
Feature valuefalse
Feature nameVersion as door for disconnecting switch interlocking (EF006967)
Feature valuefalse
Feature nameWidth (EF000008)
Feature value400.00 mm
Feature nameHeight (EF000040)
Feature value500.00 mm
Feature nameDepth (EF000049)
Feature valueNone mm
Feature nameEMC-version (EF001062)
Feature valuefalse
Feature nameMaterial (EF002169)
Feature valueStainless steel
Feature nameSurface finishing (EF006569)
Feature valueUntreated
Feature nameColour (EF000007)
Feature valueStainless steel
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP2X
Feature nameDegree of protection (NEMA) (EF011959)
Feature value
