DFN01 nVent HOFFMAN Ventilation fan inside DFN01

Description:

Two ventilation fan versions: DFN01 for mounting to a surface from below, DFN02 for mounting on top of a surface, with flow always pointing upwards. Extra contact provided for thermostat connection.

Voltage:

220-240 VAC.

Air circulation:

160 m³/h.

Power of the fan:

19 Watt.

Pack quantity:

1 set with finger guards and mounting screws.

Note:

For easy connection use wiring kit DFN61.

Feature:

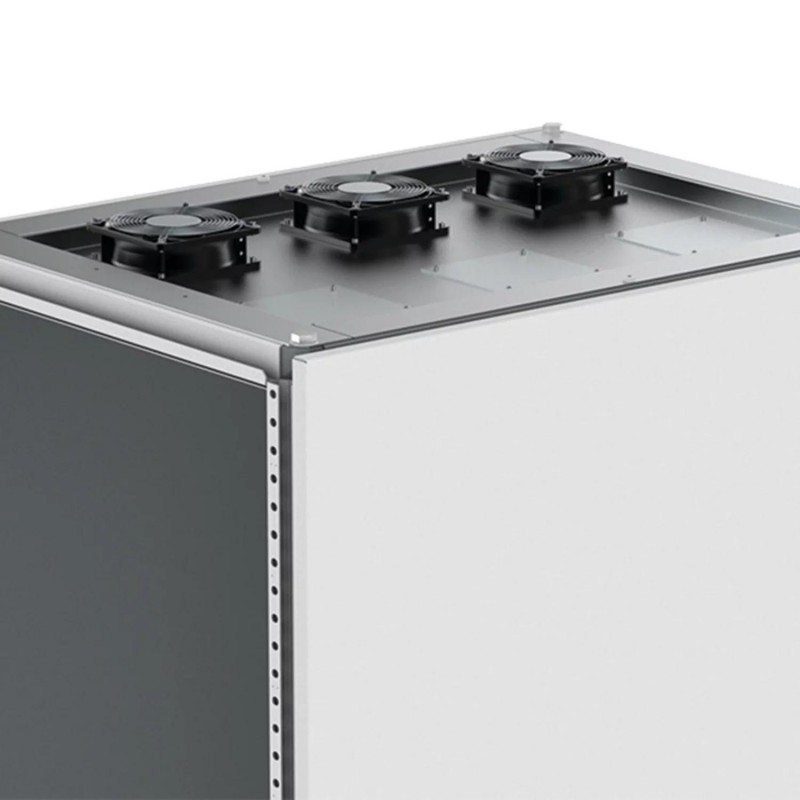

Ventilation fan that mounts into the cut-outs of the roof fan plate, CFR, or onto the roof ventilation cover plate, CRB.

Advantage:

Ventilation fans can be mounted onto the roof plates, CFR or CRB, which allows the customer to install the required number necessary to achieve the desired air flow, based on the amount of heat dissipation generated.

Benefit:

The enclosure can be cooled in incremental steps depending on the number of ventilation fans installed. The forced ventilation provides a high cooling capacity which is a good solution in environments when the ambient temperature is 10o or more, under the enclosure's desired internal temperature.
