ELDONTerminal BoxesHALP165609GE ELDON Terminal box, 160x560x90 HALP165609GE

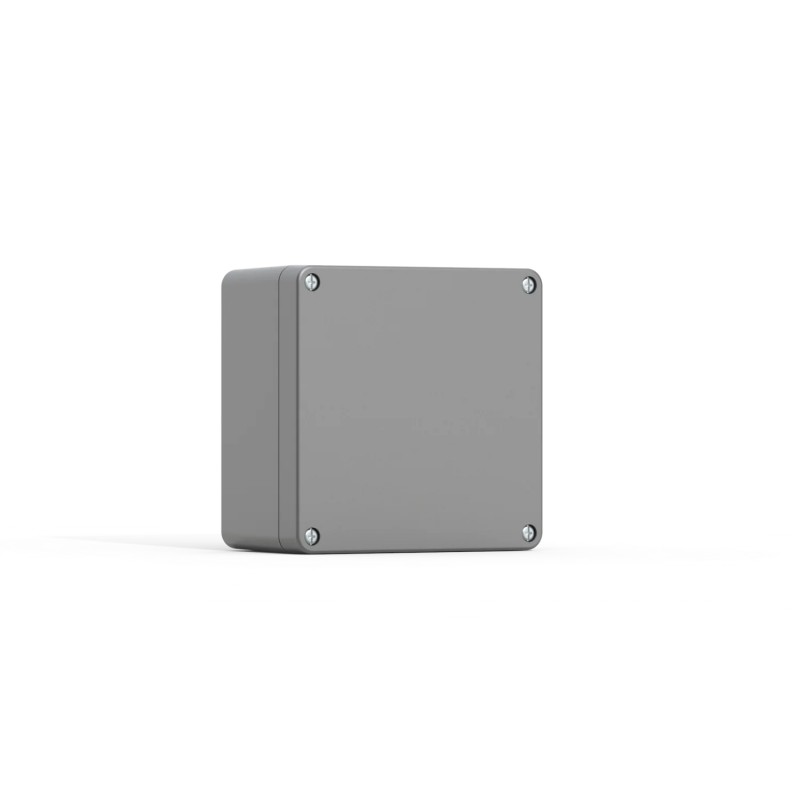

ELDON HALP165609GE HALP165609GE - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

HALP165609GE ELDON Terminal box, 160x560x90 HALP165609GE

Reference: HALP165609GE

Manufacturer: ELDON

Description:

Terminal box, 160x560x90 HALP165609GE
Box for terminals, 160x560x90, without MP, aluminium, IP66
Terminal box, 160x560x90, no MP, aluminium, IP66

Categories:

  • Distribution boards > Empty cabinet
  • ELDON > Terminal Boxes

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 287,55 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Material: Aluminium alloy EN AC-47100.
  • Gasket: Standard supply fitted with a polyurethane gasket. Silicone, neoprene and EPDM gaskets are available on request.
  • Temperature resistance: -30 ºC to +80 ºC.
  • Protection: IP 66, 67, IK 09, 08 for HALP050503GE.
  • Finish: RAL 7001.
  • Approvals: CE, GOST. For cULus_UL Listed approvals, please contact our sales department.
  • Delivery: Body and cover are manufactured from aluminum, cover screws are made of stainless steel.
Atributo del producto Valor
Height (H)160mm
Width (W)560mm
Depth (D)90mm
MaterialAluminum
FinishPowder Coated
ColorSilver Grey
Color CodeRAL 7001
Body Thickness4mm
Cover Thickness4mm
Cover Screw Quantity6
Weight4.1kg
UPC783510482480
EAN8713574089327
Standard Packaging Quantity1
Packing Quantity1

ETIM for HALP165609GE Distribution boards (EC000058)

Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameType of covering (EF000339)
Feature valueCover
Feature nameCover model (EF009212)
Feature valueClosed
Feature nameType of door (EF004464)
Feature valueNone
Feature nameTransparent cover/door (EF006244)
Feature valuefalse
Feature nameWith lock (EF006306)
Feature valuefalse
Feature nameNominal current (In) (EF008873)
Feature valueNone A
Feature nameHeight (EF000040)
Feature value160.00 mm
Feature nameWidth (EF000008)
Feature value560.00 mm
Feature nameDepth (EF000049)
Feature value90.00 mm
Feature nameBuilt-in depth (EF000218)
Feature valueNone mm
Feature nameInner depth (EF001131)
Feature valueNone mm
Feature nameMaterial plate thickness cabinet (EF009170)
Feature valueNone mm
Feature nameMaterial plate thickness door/cover (EF009171)
Feature valueNone mm
Feature nameColour (EF000007)
Feature value
Feature nameRAL-number (EF000116)
Feature value7.00
Feature nameNumber of modules (EF004427)
Feature value0.00
Feature nameNumber of rows (EF000266)
Feature value0.00
Feature nameWidth in number of modular spacings (EF002950)
Feature value
Feature nameNumber of openings for flange plates (EF009554)
Feature value0.00
Feature nameExtension possible (EF001088)
Feature valuefalse
Feature nameNumber of conduit inlets (EF000437)
Feature value0.00
Feature nameHousing material (EF001596)
Feature valueAluminium
Feature nameSurface protection (EF000139)
Feature value
Feature nameWith mounting plate (EF000118)
Feature valuefalse
Feature nameSuitable for outdoor use (EF003532)
Feature valuetrue
Feature nameSuitable for lightning protection (EF007800)
Feature valuefalse
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67
Feature nameDegree of protection (NEMA) (EF011959)
Feature value
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueI
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameCircuit integrity (EF001613)
Feature valueNone
Feature nameCover with overpressure release (EF015940)
Feature value

DATASHEET - PDF

Title
Size
Type
HALP165609GE HALP165609GE EN_HALP122208GE.pdf
200 Kbytes
HALP165609GE HALP165609GE AFS08083_Document-(PDF)3.pdf
514 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
