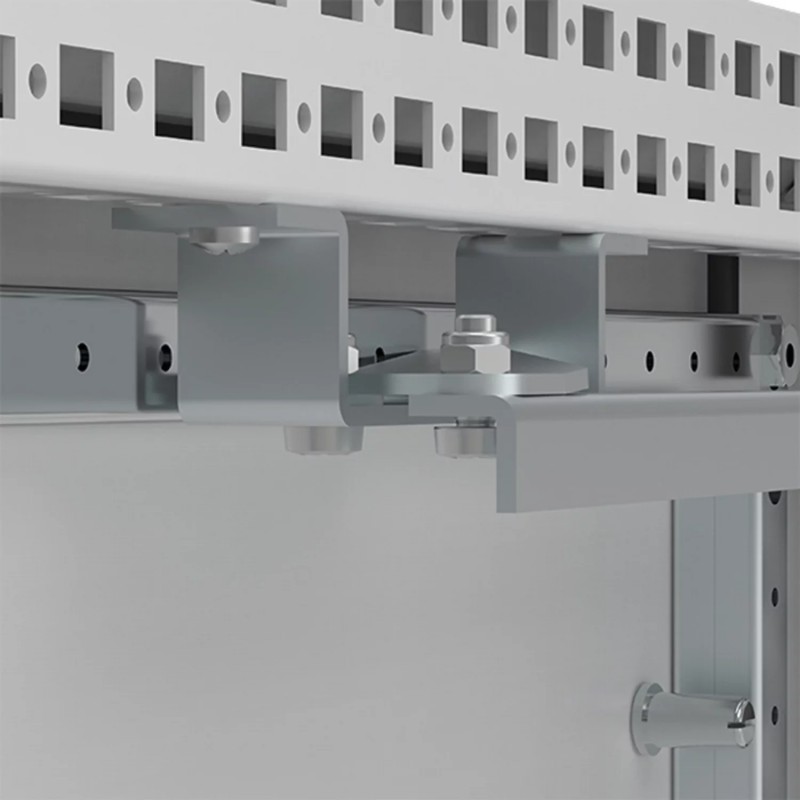

FMA01 nVent HOFFMAN System actuator FMA01

Description:

Used with suited multiple enclosure installations. Activates the locking of the slave doors when the master door is closed. One per master door.

Material:

Zinc plated steel.

Pack quantity:

1 piece with mounting material.

Feature:

System actuator for interlocking combinable floor standing enclosure doors.

Advantage:

The actuator changes position depending on the status (opened or closed) of the enclosure's master door.

Benefit:

The slave door is fully dependant upon the enclosure's master door when mounted along with the interlocking bar FMB and the slave door interlock kit FMS. This means that the slave door may only be opened by first opening the master door.

Comment:

To build an enclosure system that consists of multiple doors each with an integrated interlocking system, each neighbouring master and slave door will require an interlocking system to be mounted. The interlocking system consists of: System actuator FMA, interlocking bar FMB and a slave door interlock kit FMS.
