ELDONGeneral AccessoriesCUH20002 ELDON Roof cooling unit 2000W CUH20002
ELDON CUH20002 CUH20002 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CUH20002 ELDON Roof cooling unit 2000W CUH20002

Reference: CUH20002

Manufacturer: ELDON

Description:

Roof cooling unit 2000W CUH20002
Eq. air-cond. roof 2000 W, 230 V, sheet steel, IP54
Roof cooling unit 2000W, 230V, Mild steel, IP54

Categories:

  • Cabinet enclosures > Air conditioner (switchgear cabinet)
  • ELDON > General Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Roof cooling unit with a IP 54 protection degree
  • The cooling unit can provides cooling to enclosure's that do not have enough space on the door or side panels whether standalone or as part of an enclosure assembly
  • Floor standing enclosures can be cooled independently of each other, if required; This avoids cooling the entire enclosure assembly, reducing the amount of energy required, saving unnecessary costs
  • To minimise how much energy the cooling unit consumes, it is recommended to install the door switch, DSW01; Once installed, the door switch will turn the cooling unit off, once the door is opened
  • High performance cooling unit for roof mounting, the air conditioners cover a cooling capacity range from 600 W to 3800 W
  • Condensation management system, which prevents all condensation from penetrating into the enclosure
  • All models are equipped with a condensation dissipator, from 1400 W up to 3800 W units
  • Easy installation, with a quick release mounting frame
  • Common to all models is the self cleaning condenser coil, which eliminates the necessity for an air filter, avoiding standard maintenance
  • All models are equipped with digital display

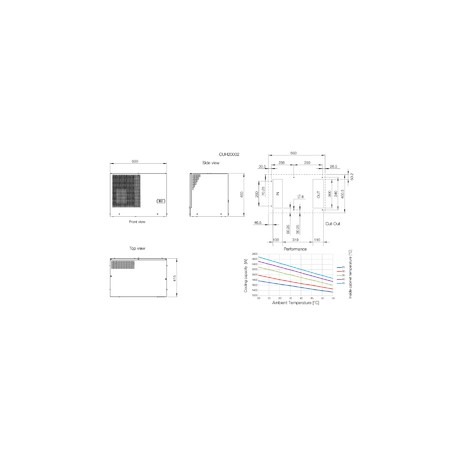

  • The cooling capacity for specific conditions are indicated in the diagrams
  • Ozone friendly refrigerant R134a
  • Temperature limits inside: +25 °C to +45 °C
  • Temperature limits outside: +20 °C to +55 °C
Atributo del producto Valor
Height450mm
Width600mm
Depth400mm
MaterialMild Steel
FinishPowder Coated
ColorLight Gray; RAL 7035
Frequency50/60 HzHz
UPC783510461737
EAN8713574184121
Standard Packaging Quantity1
Packing Quantity1

ETIM for CUH20002 Cabinets and enclosures (EC000855)

Feature nameModel (EF000010)
Feature valueAir/air
Feature nameOperating voltage AC 50 Hz (EF008206)
Feature value230.00 V
Feature nameOperating voltage AC 60 Hz (EF008207)
Feature value230.00 V
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameWith temperature control (EF000745)
Feature valueYes
Feature nameFunction master/slave (EF007183)
Feature valueYes
Feature nameWidth (EF000008)
Feature value450.00 mm
Feature nameHeight (EF000040)
Feature value450.00 mm
Feature nameDepth (EF000049)
Feature value400.00 mm

DATASHEET - PDF

Title
Size
Type
CUH20002 CUH20002 EN_CUH06002.pdf
216 Kbytes
CUH20002 CUH20002 CUH06002_Document-(PDF)2.pdf
224 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
