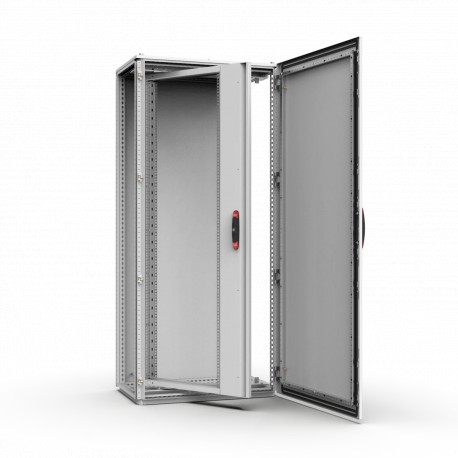

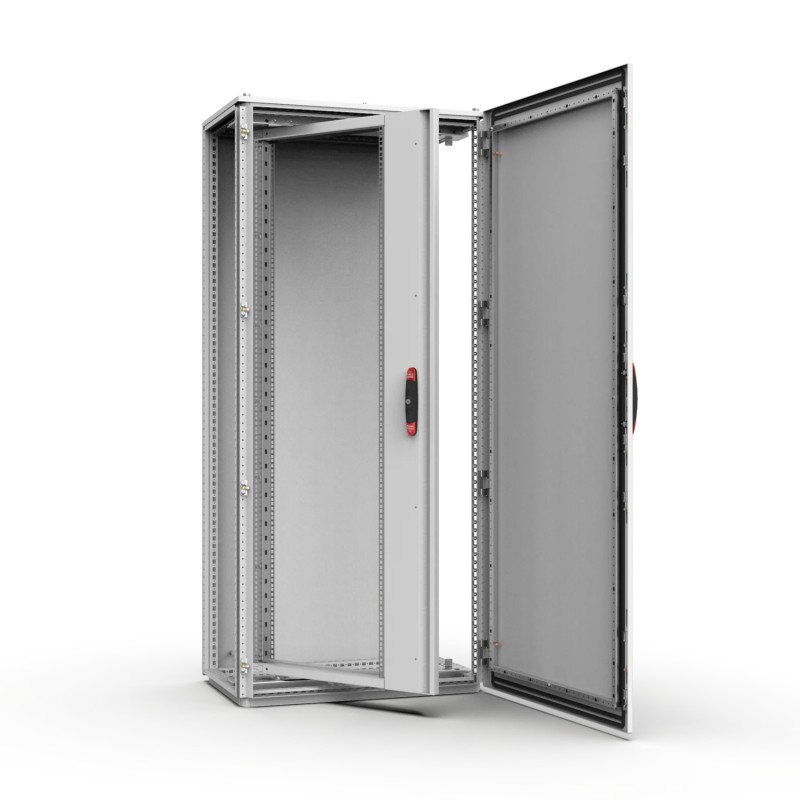

Swing frame centre, 2000 ESFM408
Вращающаяся рамка центральной, 2000
A swing frame for 19" equipment that provides additional mounting space for such equipment, as well as rear access to the fitted components and equipment once opened. It also provides extra space for cabling purposes and increases the useful depth for equipment to be fixed to the swing frame.
Электрические шкафы и боксы > Комплектующие для монтажа распределительного шкафа
Стальные напольные корпуса
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами ELDON
Спасибо за Ваш интерес к нашим продуктам. Надеемся, что предложенные сроки окажутся приемлемыми для Вас.
Во время оформления заказа можете выбрать наиболее приемлимый для Вас вид доставки: Aéreo Express 24hrs, Terrestre Standard 48/72hrs, и т.д.
Description: | Full height swing frame for 19” components allowing left and right hand opening with grip over the full height. Can be used in steel, combinable and compact enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the swing frame. Rigid W-shaped frame profile for heavy equipment. Zinc plated 19" vertical profiles for direct earthing of the mounted components. Full access to the enclosure aperture can be acquired by the standard fitted 180° hinges. For mounting use transversal support bars ESFB. Depth support and easy cable routing is achieved with depth mounting plate SFMP. Adjustable in depth by steps of 12.5 mm. |
Maximum load: | 1800 N, supplied with a self-positioning device. |
Lock: | Double-bit 3 mm espagnolette (other lock options possible). |
Material: | 19" vertical profiles 2 mm zinc plated steel. Frame: vertical profiles 2 mm and horizontal profiles 3 mm. |
Finish: | RAL 7035 structured powder coating. |
Pack quantity: | 1 swing frame with 180° hinges. |
Mounting requirements: | ESFM for 800 mm and 1000 mm wide steel, combinable enclosures. Add ESFB for mounting in a steel, combinable enclosure. |
Feature: | Middle mounted swing frame, for floor standing enclosures. |
Advantage: | Additional surface for the installation of 19" equipment, within a hinged frame. |
Benefit: | The frame allows customers to install equipment and components into floor standing enclosures efficiently by maximising the installation space available. Access can be gained to the front and rear of the equipment installed in the frame, as well as to the components installed behind on the mounting plate, when the frame is opened. |
Comment: | The transversal support bars, ESFB, must be mounted in combination with the middle mounted swing frame. 180o hinges are included with the swing frame as standard. If there is not enough useful depth for the equipment installed on the 19" swing frame, it can be increased by moving the 19" swing frame to one side of the enclosure by using the side mounted swing frame, ESFS. |
Заглавие: | Размер: | Тип: |
---|---|---|
PDF CATALOGUE NVENT EN.pdf | 76 Mbytes | |
ESFM408 ESFM408 RU_ESFM278.pdf | 140 Kbytes |
