ELDONSteel Floor Standing EnclosuresSFCP196 ELDON Partial swing frame, 1000 SFCP196

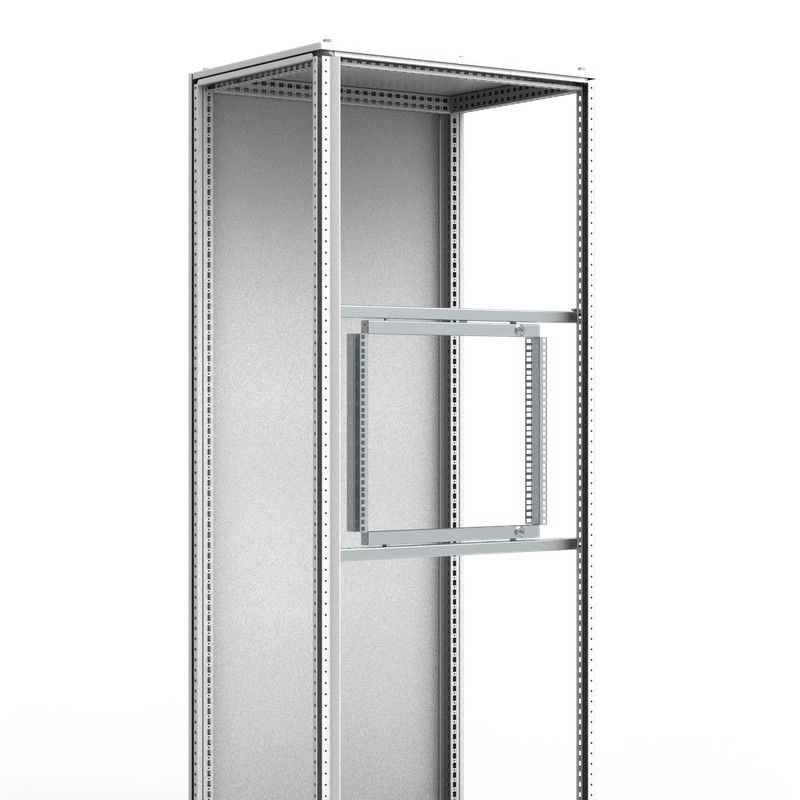

ELDON SFCP196 SFCP196 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SFCP196 ELDON Partial swing frame, 1000 SFCP196

Reference: SFCP196

Manufacturer: ELDON

Description:

Partial swing frame, 1000 SFCP196
Rotatable frame part, 1000
Partial Height Swing Frames, SFCP, 197x896x60mm, Zinc Plated, Mild Steel, 19U

Categories:

  • Cabinet enclosures > Component for installation (switchgear cabinet)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 120,38 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Partial height swing frame for 19”-components allowing left or right hand opening. Can be used in wall mounted, steel enclosures, and floor standing, combinable and compact, steel enclosures. Rigid S-shaped frame profile equipped with 19” hole pattern in front and back. Zinc plated frame for direct earthing of the mounted components. Standard opening angle 125°-155°. Mounting in wall mounted, steel enclosures requires the SFBP transversal support in combination with the AVB. Mounting in floor standing steel combinable enclosures requires the SFBP transversal support.
  • Lock: 1 double-bit 3 mm lock.
  • Material: 2 mm zinc plated steel.
  • Pack quantity: 1 swing frame with hinges.
  • Mounting requirements: Mounting in wall mounted, steel enclosures requires the SFBP transversal support in combination with the AVB. Mounting in floor standing steel combinable enclosures requires the SFBP transversal support. Adjustable in depth in combination with CLPK profiles.
Atributo del producto Valor
Height1000mm
Width896mm
Depth60mm
MaterialMild Steel
FinishZinc Plated
Thickness2mm
Package Quantity1
Weight4.1kg
Enclosure MaterialMild Steel
Load Rating500N
Rack Height19U
UPC783510527945
EAN8713574110793
Standard Packaging Quantity1
Packing Quantity1

ETIM for SFCP196 Cabinets and enclosures (EC002620)

Feature nameSuitable for enclosure building width (EF000326)
Feature value900.00 mm
Feature nameWidth (EF000008)
Feature value896.00 mm
Feature nameHeight (EF000040)
Feature value197.00 mm
Feature nameMaterial (EF002169)
Feature valueMetal
Feature nameColour (EF000007)
Feature valueOther

DATASHEET - PDF

Title
Size
Type
SFCP196 SFCP196 EN_SFCP036.pdf
149 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
