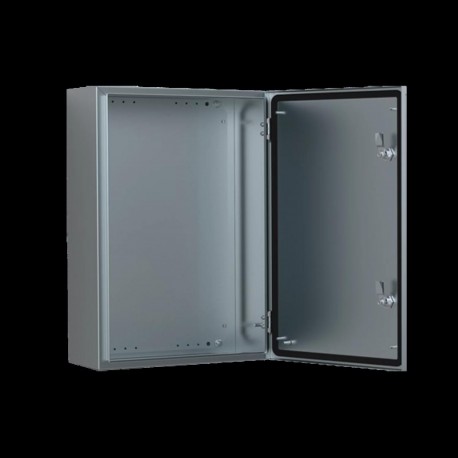

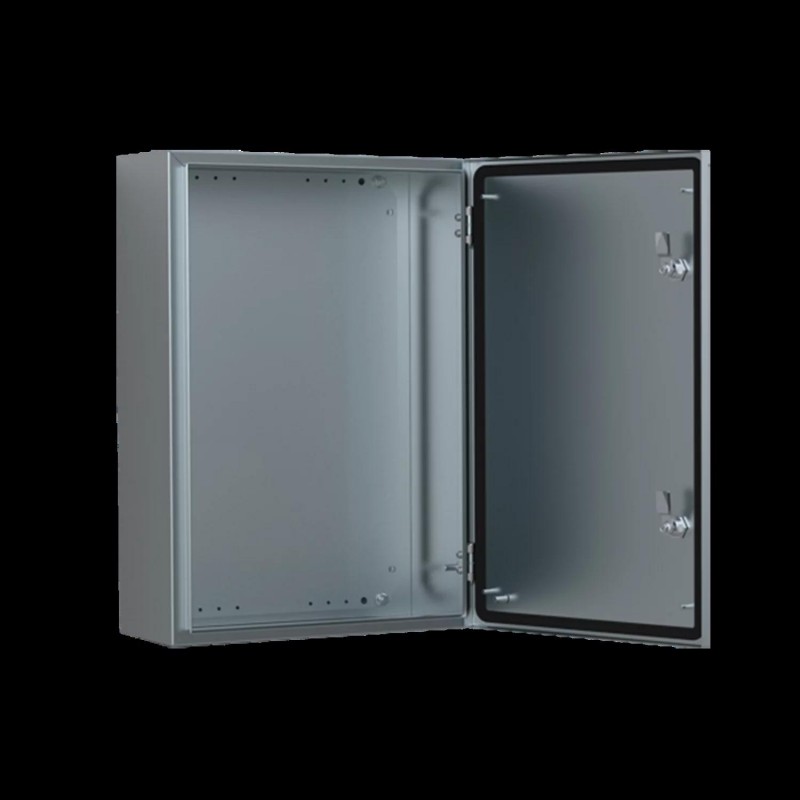

ASR0806021-316 ELDON Wall mounted, 800x600x210 ASR0806021-316
ASR0806021-316
ELDON
Wall mounted, 800x600x210 ASR0806021-316
Фреска, 800x600x210, компактный, 1-дверный, с МП, нержавеющая сталь 316, класс защиты IP66
Настенные шкафы, 800x600x210, Компактный корпус, 1-дверный, с MP, нержавеющая 316, IP66
Однодверный корпус, ASR, 800x600x210мм, матовый, нержавеющая сталь 316
Электрические шкафы и боксы > Корпус/распределительный шкаф (пустой)
Шкафы из нержавеющей стали
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами ELDON
Related products
▲Best sellers
▲Описание
▲Features
- Material: AISI 304L / AISI 316L pre-grained stainless steel. Body: 1.5 mm. Door for AISI 304L: 1.5 mm / 2 mm for enclosures with a height or width of 600 mm or greater. Door for AISI 316L: 2 mm. Mounting plate: 2 mm galvanized steel.
- Body: Folded and seam welded. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
- Door: Corner formed in one piece. Surface mounted, with 130° opening. Concealed AISI 304 stainless steel hinges with captive pin. Can be mounted to allow left or right hand opening. Sealing is ensured by an injected polyurethane gasket. For AISI 316L, sealing is ensured by an injected silicone gasket. Inner M6 welded studs, to mount optional door profiles MMDP.
- Lock: nVent HOFFMAN customized zamak double-bit 3 mm lock, with 90° movement and anti-vibration mechanism. Two locks for 600 mm high to 800 mm high enclosures. Espagnolette three point locking or 3 locks for 1000 mm high enclosures and above. Stainless steel lock and other versions are available as accessories.
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
- Cable access: No gland plate openings as standard, to maximise sealing and cleanliness.
- Protection: Corresponds with IP 66 TYPE 4X, 12 IK 10.
- Finish: 400 pre-grained stainless steel.
- Delivery: Enclosure with door, mounting plate, plastic double-bit 3 mm key, and mounting accessories. Metallic key, for height 1000 mm and above.
- Additional information: For outdoor environments, exposed to precipitation, the use of a rain hood is advised. Also in environments known for quick temperature changes, consideration to condensation should be taken. Please see the thermal management section.
| Atributo del producto | Valor |
|---|---|
| Высота мм | 800 mm |
| Ширина мм | 600 mm |
| Глубина мм | 210 mm |
| Material | Stainless Steel 316 |
| Panel Size | 770 x 550 mm |
| Максимальная установочная глубина | 192 mm |
| Finish | Brushed |
| Color | Unpainted |
| Body Thickness | 1.5 mm |
| Door Thickness | 2 mm |
| Latch Quantity | 2 |
| Weight | 28.5 kg |
| UPC | 783510450557 |
| EAN | 8713574121010 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Характеристика | Значение |
|---|---|
| Width (EF000008) | None mm |
| Height (EF000040) | None mm |
| Depth (EF000049) | None mm |
| Material (EF002169) | |
| Material quality (EF001257) | |
| Surface finishing (EF006569) | |
| Colour (EF000007) | |
| RAL-number (EF000116) | |
| Freestanding (EF020363) | |
| Floor standing wall model (EF015208) | |
| Suitable for wall mounting (EF000664) | |
| Corner model (EF020814) | |
| Intermediate mounting (EF022994) | |
| Couplable (EF001229) | |
| With mounting plate (EF000118) | |
| Mounting plate depth-adjustable (EF006054) | |
| Suitable for wall built-in (EF007536) | |
| Pole fastening (EF009582) | |
| Number of doors (EF000122) | |
| Number of locks (EF000123) | |
| Suitable for metrical mounting (EF005823) | |
| Pitched roof (EF009278) | |
| EMC-version (EF001062) | |
| With glazed door (EF001089) | |
| With ventilation door (EF006279) | |
| With rear door (EF007381) | |
| Impact strength (EF004293) | |
| Degree of protection (IP) (EF005474) | |
| Degree of protection (NEMA) (EF011959) | |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) | None W |
| Max. permissible load of the enclosure according to IEC 62208 (EF014987) | None N |
| Max. permissible load of the door(s) according to IEC 62208 (EF014988) | None N |
| Max. permissible load of the mounting plate according to IEC 62208 (EF014989) | None N |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| ASR0806021-316 ASR0806021-316 RU_ASR0182415.pdf | 717 Kbytes |
|
| ASR0806021-316 ASR0806021-316 ASR0806021_Document-(PDF)2.pdf | 736 Kbytes |
|
| ASR0806021-316 ASR0806021-316 AFS08083_Document-(PDF)2.pdf | 344 Kbytes |
|
| ASR0806021-316 ASR0806021-316 AFS08083_Document-(PDF)3.pdf | 514 Kbytes |
|
| ASR0806021-316 ASR0806021-316 AFS08083_Document-(PDF)4.pdf | 275 Kbytes |
|
| ASR0806021-316 ASR0806021-316 ASR0806021_Document-(PDF)6.pdf | 487 Kbytes |
|
| ASR0806021-316 ASR0806021-316 AFS08083_Document-(PDF)5.pdf | 617 Kbytes |
|
| ASR0806021-316 ASR0806021-316 ASR0806021_Document-(PDF)8.pdf | 427 Kbytes |
|
| ASR0806021-316 ASR0806021-316 AFS08083_Document-(PDF)7.pdf | 82 Kbytes |
|
