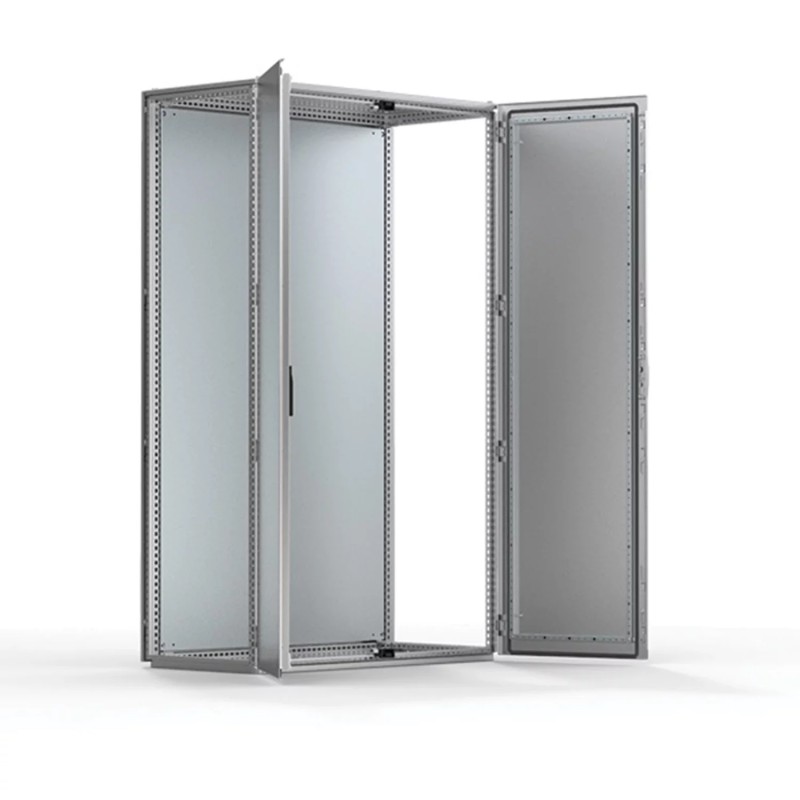

MCDS20126-316 ELDON Напольный, 2000x1200x600
MCDS20126-316
ELDON
Напольный, 2000x1200x600
Самонесущий, 2000x1200x600, комбинируемый, 2-дверный, с МП, нержавеющая сталь 316, класс защиты IP55
Напольные шкафы, 2000x1200x600, Комбинируемый корпус, 2-дверный, с MP, нержавеющая 316, IP55
Напольный, 2000x1200x600, Комбинированный корпус, 2-дверный, с MP, нержавеющая сталь 316, IP55
Электрические шкафы и боксы > Корпус/распределительный шкаф (пустой)
Шкафы из нержавеющей стали
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами ELDON
Best sellers
▲Описание
▲Features
- Material: AISI 304L pre-grained stainless steel / AISI 316L. Frame: 1.5 mm. Door: 2 mm. Rear, roof and side panels: 1.5 mm. Bottom plates: 1.5 mm stainless steel. Mounting plate: 3 mm galvanized steel.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660.
- Door: Mounted with four hinges. Including door frame with 25 mm hole pattern. Doors cannot be reversed. Separate doors to be ordered for left hand door locking.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting. Split rear panels in 1600 mm wide enclosures.
- Side panels: Supplied as an accessory.
- Roof panel: Removable.
- Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handle are available as accessories.
- Bottom plates: Two piece bottom plate in 1200 mm width, with injected polyurethane gasket to ensure maximum sealing.
- Mounting plate: Double folded and adjustable in depth by steps of 25 mm, with the MPD02 accessory. Mounting plate is delivered, attached on the outside of the enclosure packaging.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
- Finish: 400 pre-grained stainless steel.
- Protection: Complies with IP 55 TYPE 12 IK 10.
- Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation, add side panels.
- Delivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. Packing material is recyclable.
| Atributo del producto | Valor |
|---|---|
| Высота мм | 2000 mm |
| Ширина мм | 1200 mm |
| Глубина мм | 600 mm |
| Panel Size | 1894 x 1094 mm |
| Material | Stainless Steel 316 |
| Finish | Brushed |
| Color | Unpainted |
| Body Thickness | 1.5 mm |
| Door Thickness | 2 mm |
| Weight | 192 kg |
| UPC | 783510492823 |
| EAN | 8713574191815 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Характеристика | Значение |
|---|---|
| Width (EF000008) | None mm |
| Height (EF000040) | None mm |
| Depth (EF000049) | None mm |
| Material (EF002169) | |
| Material quality (EF001257) | |
| Surface finishing (EF006569) | |
| Colour (EF000007) | |
| RAL-number (EF000116) | |
| Freestanding (EF020363) | |
| Floor standing wall model (EF015208) | |
| Suitable for wall mounting (EF000664) | |
| Corner model (EF020814) | |
| Intermediate mounting (EF022994) | |
| Couplable (EF001229) | |
| With mounting plate (EF000118) | |
| Mounting plate depth-adjustable (EF006054) | |
| Suitable for wall built-in (EF007536) | |
| Pole fastening (EF009582) | |
| Number of doors (EF000122) | |
| Number of locks (EF000123) | |
| Suitable for metrical mounting (EF005823) | |
| Pitched roof (EF009278) | |
| EMC-version (EF001062) | |
| With glazed door (EF001089) | |
| With ventilation door (EF006279) | |
| With rear door (EF007381) | |
| Impact strength (EF004293) | |
| Degree of protection (IP) (EF005474) | |
| Degree of protection (NEMA) (EF011959) | |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) | None W |
| Max. permissible load of the enclosure according to IEC 62208 (EF014987) | None N |
| Max. permissible load of the door(s) according to IEC 62208 (EF014988) | None N |
| Max. permissible load of the mounting plate according to IEC 62208 (EF014989) | None N |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| MCDS20126-316 MCDS20126-316 RU_MCDS18105.pdf | 1 Mbytes |
|
