ELDONStainless steel enclosuresEKDS20124-316 ELDON Floor standing, 2000x1200x400

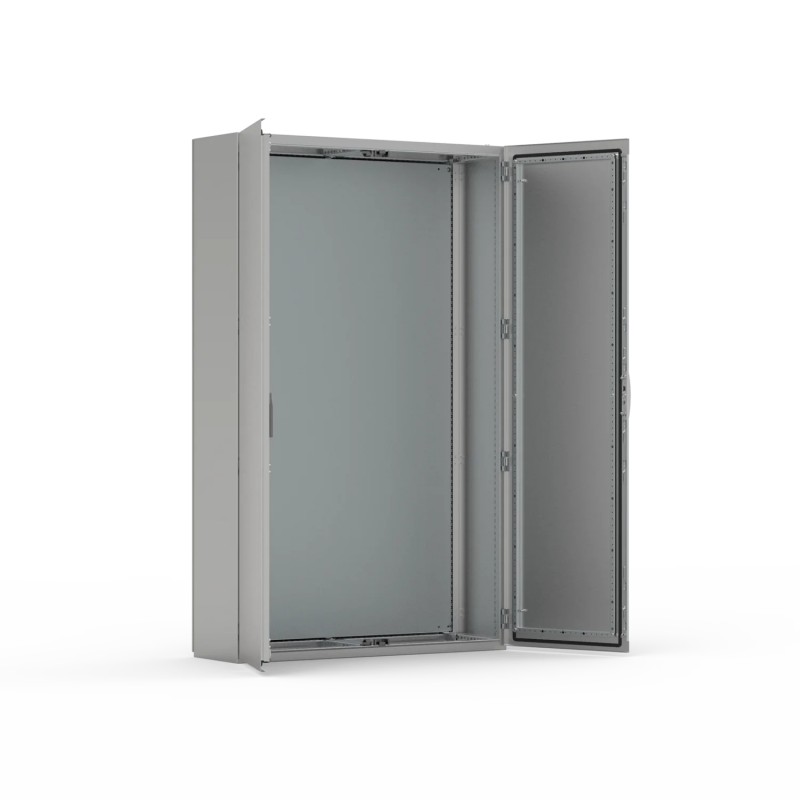

ELDON EKDS20124-316 EKDS20124-316 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

EKDS20124-316 ELDON Floor standing, 2000x1200x400

Reference: EKDS20124-316

Manufacturer: ELDON

Description:

Floor standing, 2000x1200x400
Self-supporting, 2000x1200x400, compact, 2-door, with MP, stainless steel 316, IP55
Floor stand., 2000x1200x400, Compact encl., 2-door, with MP, stainless 316, IP55
Floor standing, 2000x1200x400, Compact enclosure, 2-door, with MP, stainless 316, IP55

Categories:

  • Cabinet enclosures > Enclosure/switchgear cabinet (empty)
  • ELDON > Stainless steel enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 6.711,38 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Material: AISI 304L pre-grained stainless steel / AISI 316L. Body and removable rear panel: 1.5 mm. Door: 2 mm. Bottom Plates: 1.5 mm. Mounting plate: 3 mm galvanized steel.
  • Body: One piece enclosure body. Integrated depth profiles with hole pattern allowing mounting plate adjustable in depth.
  • Door: Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting. Split rear panels in 1600 mm wide enclosures.
  • Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
  • Bottom plates: One piece bottom plate with injected polyurethane gasket to ensure maximum sealing.
  • Earthing: Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF.
  • Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm. Mounting plate is supplied, attached on the outside of the enclosure packaging. Fitted inside for 1600 mm wide enclosures. For 1600 mm wide, filler plate is included.
  • Finish: 400 pre-grained stainless steel.
  • Protection: Double door version, complies with IP 55, TYPE 12, IK 10. Individual doors with welded vertical divider, complies with IP 66, TYPE 4X, 12, IK 10.
  • Delivery: One piece body with fitted door and rear panel, bottom plates and mounting plate, including door earthing studs. Delivered on a pallet which is identical to the width of the enclosure to allow suiting without removal. Mounting plate is attached to the outside of the enclosure packaging. All the packing material is recyclable.
  • Rear panel: Fitted by M6 torx screws; standard facilities for rear door mounting; split rear panels in 1600 mm wide enclosures
  • Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door; standard double-bit lock with 3 mm insert; standard inserts, cylinders, lift handles and T-handles are available as accessories
  • Bottom plates: One piece bottom plate with injected polyurethane gasket to ensure maximum sealing
  • Earthing: Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF
  • Mounting plate: Double folded and slides into position; adjustable in depth by steps of 25 mm; mounting plate is supplied, attached on the outside of the enclosure packaging; fitted inside for 1600 mm wide enclosures; for 1600 mm wide, filler plate is included
  • Protection: Double door version, complies with IP 55 TYPE 12 IK 10; individual doors with welded vertical divider, complies with IP 66 TYPE 4X, 12 IK 10
  • Delivery: One piece body with fitted door and rear panel, bottom plates and mounting plate, including door earthing studs; delivered on a pallet which is identical to the width of the enclosure to allow suiting without removal; mounting plate is attached to the outside of the enclosure packaging. All the packing material is recyclable
Atributo del producto Valor
Height (H)2000mm
Width (W)1200mm
Depth (D)400mm
MaterialStainless Steel 316
Panel Size1894 x 1094mm
Weight181kg
FinishBrushed
Body Thickness1.5mm
Door Thickness2mm
UPC783510477738
EAN8713574192102
Standard Packaging Quantity1
Packing Quantity1

ETIM for EKDS20124-316 Cabinets and enclosures (EC000261)

Feature nameWidth (EF000008)
Feature value1.20 mm
Feature nameHeight (EF000040)
Feature value2.00 mm
Feature nameDepth (EF000049)
Feature value400.00 mm
Feature nameMaterial (EF002169)
Feature valueStainless steel
Feature nameMaterial quality (EF001257)
Feature valueStainless steel 316
Feature nameSurface finishing (EF006569)
Feature valueUntreated
Feature nameColour (EF000007)
Feature valueStainless steel
Feature nameWith mounting plate (EF000118)
Feature valueYes
Feature nameMounting plate depth-adjustable (EF006054)
Feature valueYes
Feature namePole fastening (EF009582)
Feature valueNo
Feature nameNumber of doors (EF000122)
Feature value2.00
Feature nameNumber of locks (EF000123)
Feature value1.00
Feature namePitched roof (EF009278)
Feature valueNo
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameWith glazed door (EF001089)
Feature valueNo
Feature nameWith ventilation door (EF006279)
Feature valueNo
Feature nameWith rear door (EF007381)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK10
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameDegree of protection (NEMA) (EF011959)
Feature value12
