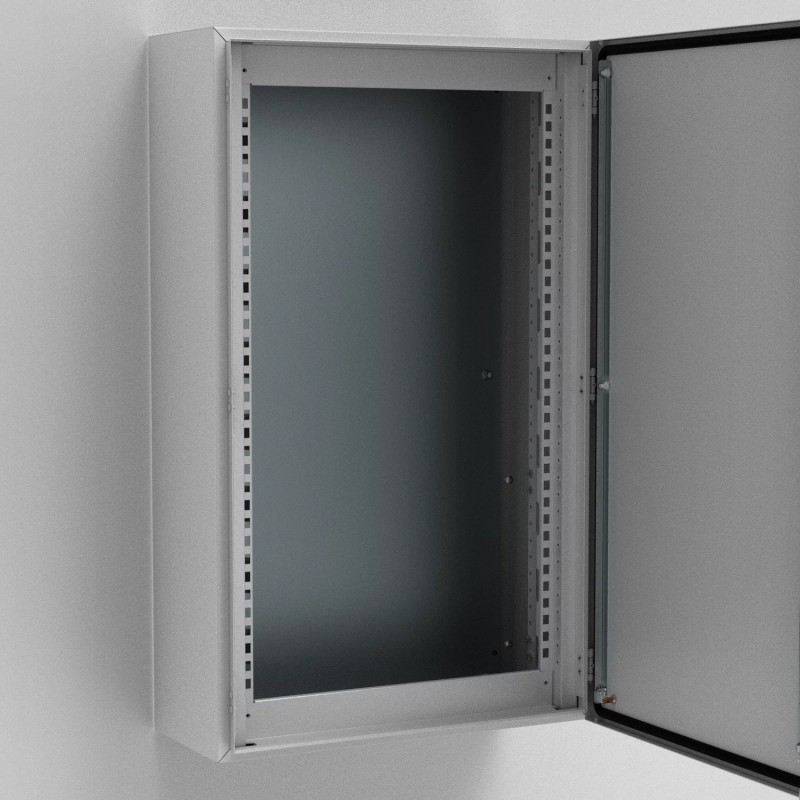

MSMSM1008 nVent HOFFMAN Рамка модульная, 1000x800, для росписи стен

Description:

Two single vertical profiles, which can be used both for front covers and assembly of components. A cost effective solution for panel builders, reducing assembly time, which also enables assembly outside the enclosure. Useful height for front covers is, Height – 100 mm.

Material:

1.5 mm steel.

Finish:

RAL 7035.

Pack quantity:

1 kit.

Mounting requirements:

To be assembled on MAS and ASR enclosures.

Feature:

Mild steel modular system frame for wall mounted enclosures, with two mounting levels, the first for mounting front panels and the second for installing equipment .

Advantage:

A flexible solution that allows customers to design a customized power distribution enclosure solution made up of DIN rails and adjustable mounting plates, to meet customer specific requirements.

Benefit:

The frame provides customers with a cost effective solution for small sized power distribution panels. The frame ensures that both modular and non-modular components can be installed into the same enclosure. Customer's can assembly the frame outside of the enclosure, if required, which saves installation time as well as labour cost.
