MSMSM0608
ELDON
1
Рамка модульная, 600x800, для росписи стен
Модульная рама, 600 х 800, для росписи

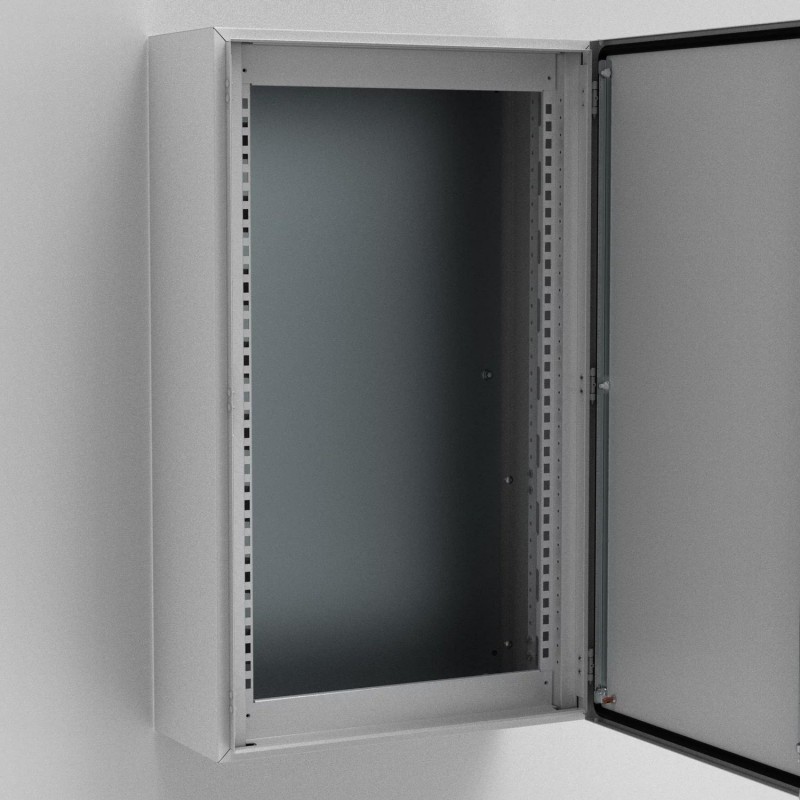

The mild steel modular system frame for wall mounted enclosures, MSMSM, has two mounting levels. The first is for fixing front panels and the second for mounting equipment. The frame can be equipped before mounting in the enclosure and allows for the use of both modular and non-modular components.
Электрические шкафы и боксы > Комплектующие для монтажа распределительного шкафа
Силовые и распределительные шкафы
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами ELDON
Спасибо за Ваш интерес к нашим продуктам. Надеемся, что предложенные сроки окажутся приемлемыми для Вас.
Во время оформления заказа можете выбрать наиболее приемлимый для Вас вид доставки: Aéreo Express 24hrs, Terrestre Standard 48/72hrs, и т.д.
Description: | Two single vertical profiles, which can be used both for front covers and assembly of components. A cost effective solution for panel builders, reducing assembly time, which also enables assembly outside the enclosure. Useful height for front covers is, Height – 100 mm. |
Material: | 1.5 mm steel. |
Finish: | RAL 7035. |
Pack quantity: | 1 kit. |
Mounting requirements: | To be assembled on MAS and ASR enclosures. |
Feature: | Mild steel modular system frame for wall mounted enclosures, with two mounting levels, the first for mounting front panels and the second for installing equipment . |
Advantage: | A flexible solution that allows customers to design a customized power distribution enclosure solution made up of DIN rails and adjustable mounting plates, to meet customer specific requirements. |
Benefit: | The frame provides customers with a cost effective solution for small sized power distribution panels. The frame ensures that both modular and non-modular components can be installed into the same enclosure. Customer's can assembly the frame outside of the enclosure, if required, which saves installation time as well as labour cost. |
Заглавие: | Размер: | Тип: |
---|---|---|
PDF CATALOGUE NVENT EN.pdf | 76 Mbytes | |
MSMSM0608 MSMSM0608 RU_MSMSM0606.pdf | 112 Kbytes |
