MSCC1006 ELDON Tray for ACB, 1000x600, for switch cutting the air

Name: MSCC1006 ELDON Tray for ACB, 1000x600, for switch cutting the air
Brand: ELDON
SKU: ELDMSCC1006
Price: 58.51 USD
Availability: OutOfStock

Reference: MSCC1006

Manufacturer: ELDON

Description:

Tray for ACB, 1000x600, for switch cutting the air

Shelf for ACB, 1000x600, for Air Circuit Breaker

Categories:

Cabinet enclosures > Component for installation (switchgear cabinet)
ELDON > Power and distribution

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

More Info
Reviews

Guarantee, repair and return.

Unit Price: 52,27 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 10 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Features

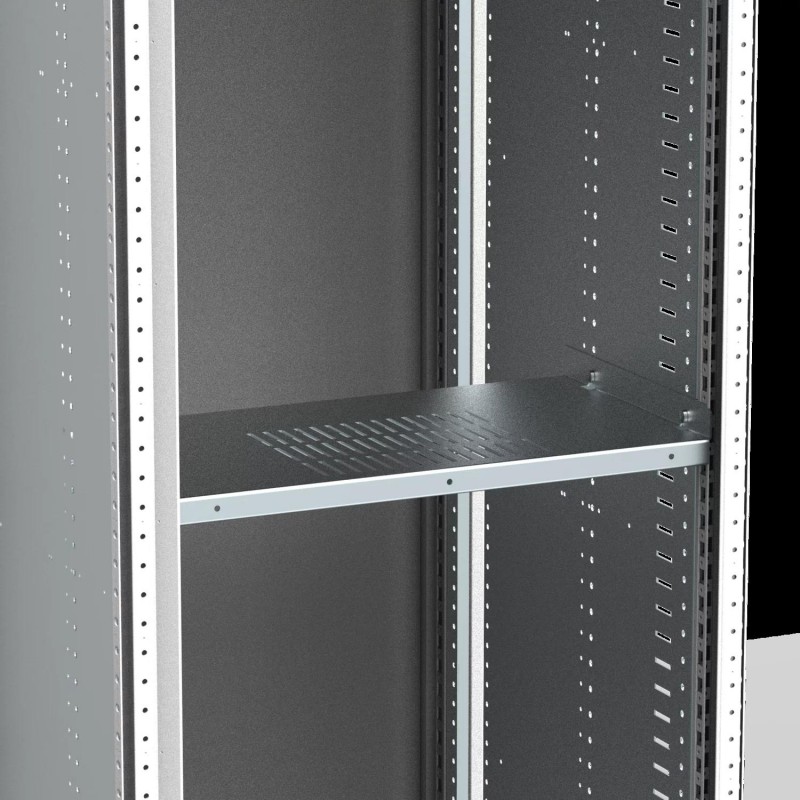

Description: Shelf to mount air circuit-breakers, fixed or withdrawable version and MCCB's version in cassette. The shelf has ventilation slots to allow air circulation in the section. It can be mounted only if we have internal side panels MSPSxx06 in both sides. Adjustable height position in steps of 25mm. It can not be used with the front covers system, if it is neccessary to increase the internal segregation or limit the access, we recommend to use top and bottom shelf and 3 partial doors to separate the incoming, ACB and outgoing subsections.
Material: 2 mm galvanised steel.
Delivery: 1 piece with mounting material.
In order to mount the shelf, internal side panels (MSPS), are required
Shelf to mount air circuit-breakers, fixed or withdrawable version and MCCB's version in cassette
The shelf has ventilation slots to allow air circulation in the section
It can be mounted only if we have internal side panels MSPSxx06 in both sides
Adjustable height position in steps of 25mm
d with the front covers system, if it is neccessary to increase the internal segregation or limit the access, we recommend to use top and bottom shelf and 3 partial doors to separate the incoming, ACB and outgoing subsections it can not be use
Includes mounting hardware

Atributo del producto	Valor
Height	78mm
Width	1000mm
Depth	600mm
Mounting Plate Width	904mm
Max Mounting Depth	283mm
Material	Mild Steel
Finish	Plated
Thickness	2mm
Enclosure Material	Mild Steel
UPC	783510515119
EAN	8713574222984
Standard Packaging Quantity	1
Packing Quantity	1
