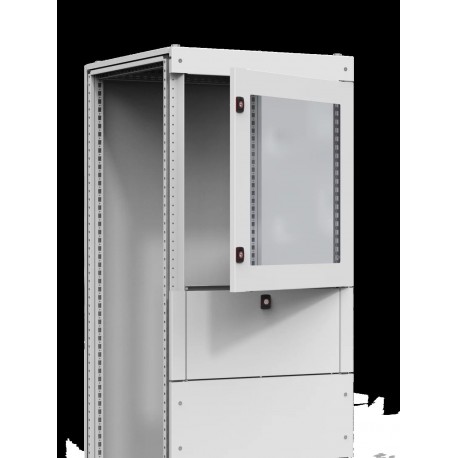

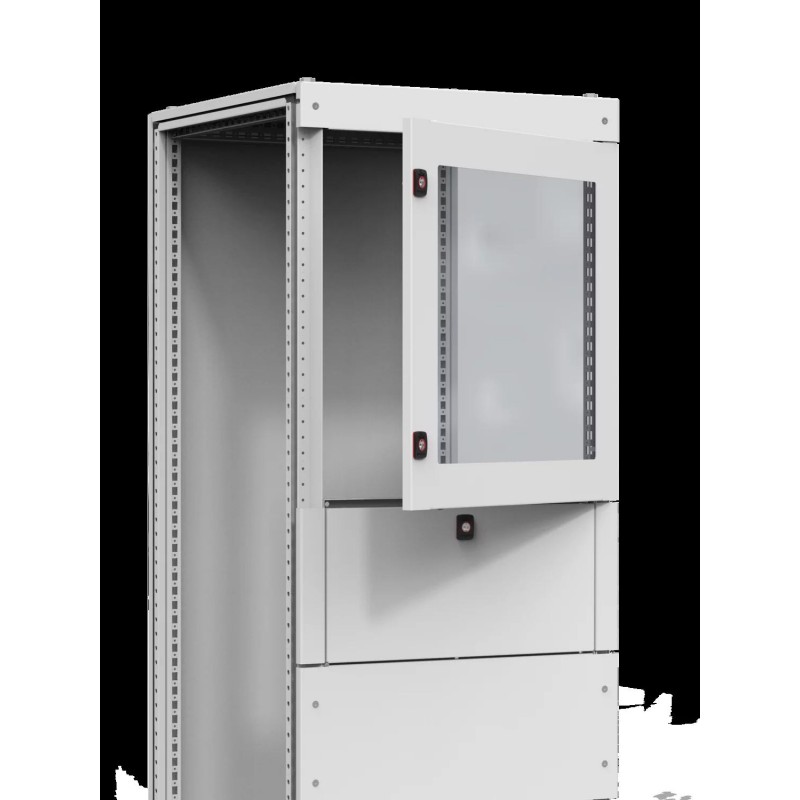

DPM0606R5 nVent HOFFMAN Monitor door, 600x600 DPM0606R5

Description:

For monitor size 14"-21". Used in combination with the hinged keyboard tray DPK, allows the installation of a PC in any floor standing enclosures. The remaining space will be filled with top and bottom panels DPC and partial doors DP.

Material:

1.75 mm steel plate, viewing area: 4 mm safety glass.

Finish:

RAL 7035 structured powder coating.

Protection:

Complies with IP 44.

Pack quantity:

1 door with hinges and double-bit 3 mm lock.

Mounting requirements:

To be used in combination with keyboard tray DPK. Recommended in combination with CDH to avoid a gap between the above/below panels.

Feature:

Glazed partial monitor door for semi-compact and combinable enclosures.

Advantage:

The glazed door allows users to see displays, eliminating the need for internal access.

Benefit:

The display can be seen while maintaining the enclosure's ingress protection.

Comment:

Partial door systems can be created if glazed partial doors are mounted with the keyboard tray, DPK which provides a good solution for industrial computers. A monitor shelf, SHM is available if required.
