ELDONGeneral AccessoriesCUVN59504 ELDON Cooling unit 5950W CUVN59504

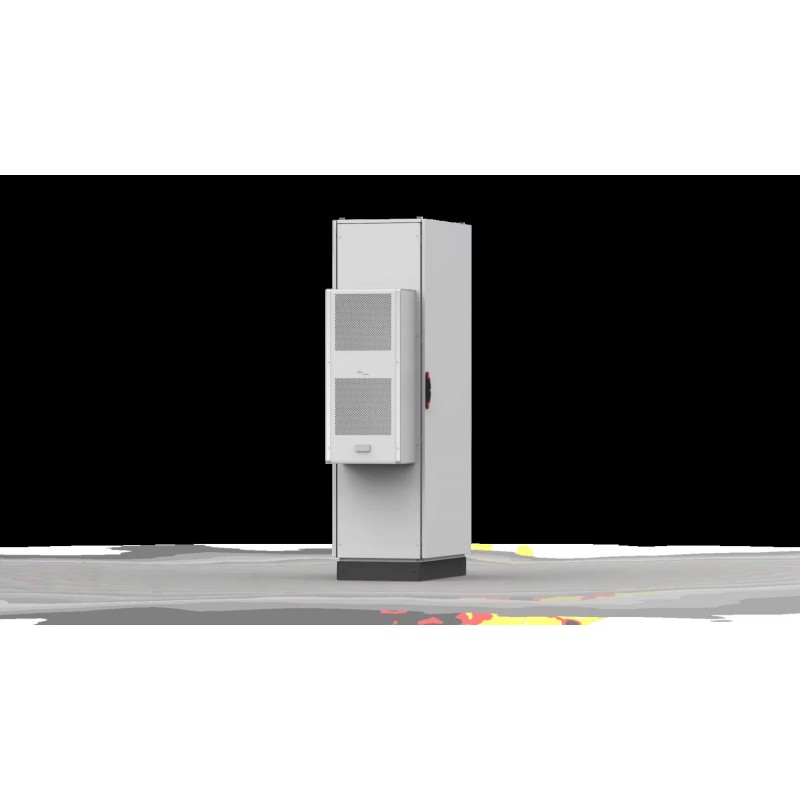

ELDON CUVN59504 CUVN59504 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

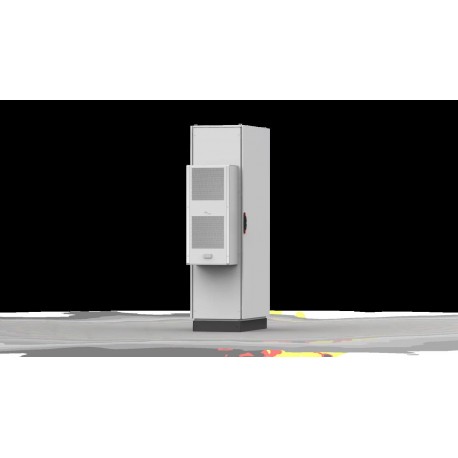

CUVN59504 ELDON Cooling unit 5950W CUVN59504

Reference: CUVN59504

Manufacturer: ELDON

Description:

Cooling unit 5950W CUVN59504
Refrigerator 5950 W, 400 V, sheet steel, IP54, NEMA 12
Cooling unit 5950W, 400V, Mild steel, IP54, NEMA 12

Categories:

  • Cabinet enclosures > Air conditioner (switchgear cabinet)
  • ELDON > General Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Vertical cooling unit with smart energy management, available in a wide range of sizes for different cooling capacities, with a IP 54 protection degree
  • Customers can choose the cooling unit that meets their requirements the most, removing any extra costs due to oversizing Smart energy management reduces the cooling units energy consumption by up to 23%
  • The efficient cooling unit allows customers to optimise the enclosure's design ensuring that the correct cooling unit is chosen and it hasn't been over specified
  • The smart energy management and ease of installation will reduce both operational and installation costs
  • To minimise how much energy the cooling unit consumes, it is recommended to install the door switch, DSW01
  • Once installed, the door switch will turn the cooling unit off, once the door is opened
  • Voltage: 200-235 V
  • Alternating current frequency: 50~60 Hz
  • Power of the fan: 22 Watt
  • Consumption current: 0.28A / 0.56A
  • Air circulation: 4.4 / 8.8 m³/min
  • Measurement limits: -50 ºC ... +125 ºC
  • Measurement accuracy: +/-0.5ºC
  • Working temperature: 0...+50ºC
  • Relative air humidity (air temp. +35C): 80%
  • Noise level: 35 decibel
  • Lifetime: 30.000 hours
  • Switch: No
  • Thermostat: Yes
  • Pack quantity: 1 unit including power cable (1.5 m) with Shuko plug and sensor cable (1.2 m); version with 4 fans is supplied with a depth fixing bracket
Atributo del producto Valor
Height1405mm
Width554mm
Depth404mm
MaterialMild Steel
FinishPlated
Phase Quantity3
Frequency50/60 HzHz
UPC783510462963
EAN8713574211063
Standard Packaging Quantity1
Packing Quantity1

ETIM for CUVN59504 Cabinets and enclosures (EC000855)

Feature nameModel (EF000010)
Feature valueOther
Feature nameOperating voltage AC 50 Hz (EF008206)
Feature value400.00 V
Feature nameOperating voltage AC 60 Hz (EF008207)
Feature value460.00 V
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameWith temperature control (EF000745)
Feature valueYes
Feature nameFunction master/slave (EF007183)
Feature valueNo
Feature nameWidth (EF000008)
Feature value554.00 mm
Feature nameHeight (EF000040)
Feature value1.41 mm
Feature nameDepth (EF000049)
Feature value404.00 mm

DATASHEET - PDF

Title
Size
Type
CUVN59504 CUVN59504 EN_CUVN03602.pdf
113 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
