ELDONGeneral AccessoriesCUVN40502SS ELDON Cooling unit 4050W CUVN40502SS

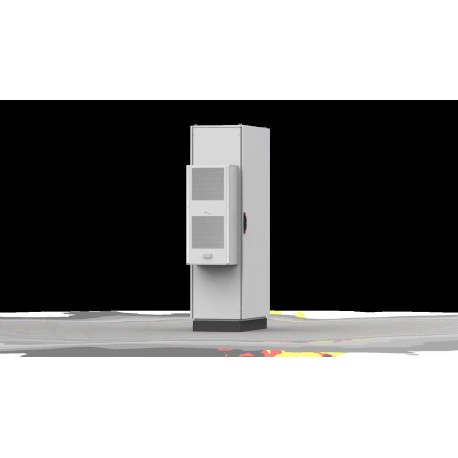

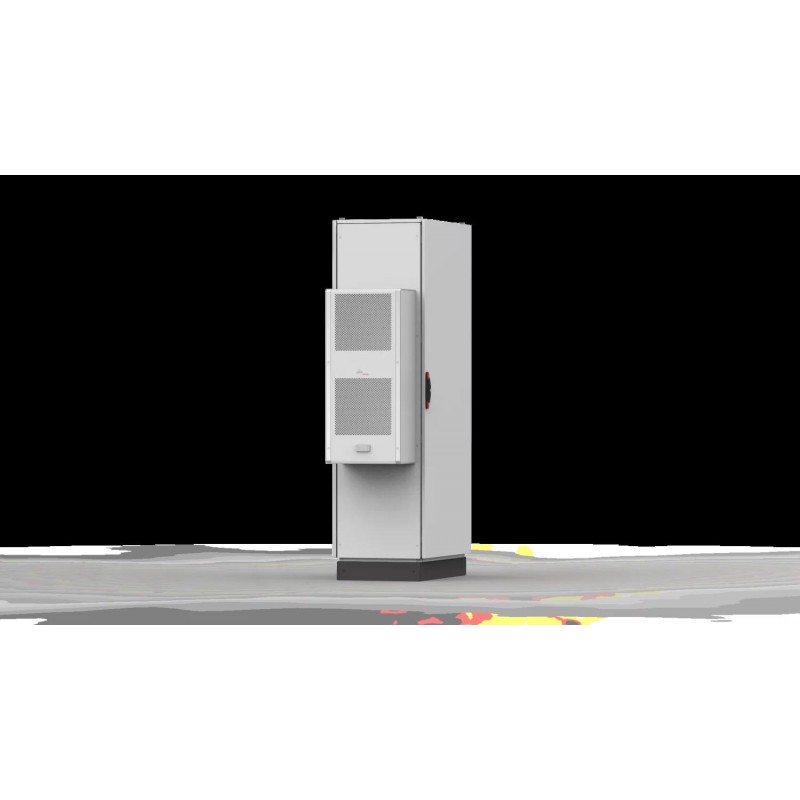

ELDON CUVN40502SS CUVN40502SS - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CUVN40502SS ELDON Cooling unit 4050W CUVN40502SS

Reference: CUVN40502SS

Manufacturer: ELDON

Description:

Cooling unit 4050W CUVN40502SS
Refrigerator 4050 W, 230 V, stainless Steel, IP54, NEMA 12
Cooling unit 4050W, 230V, Stainless steel, IP54, NEMA 12

Categories:

  • Cabinet enclosures > Air conditioner (switchgear cabinet)
  • ELDON > General Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Vertical cooling unit with smart energy management, available in a wide range of sizes for different cooling capacities, with a IP 54 protection degree
  • Customers can choose the cooling unit that meets their requirements the most, removing any extra costs due to oversizing Smart energy management reduces the cooling units energy consumption by up to 23%
  • The efficient cooling unit allows customers to optimise the enclosure's design ensuring that the correct cooling unit is chosen and it hasn't been over specified
  • The smart energy management and ease of installation will reduce both operational and installation costs
  • To minimise how much energy the cooling unit consumes, it is recommended to install the door switch, DSW01
  • Once installed, the door switch will turn the cooling unit off, once the door is opened
  • Voltage: 200-235 V
  • Alternating current frequency: 50~60 Hz
  • Power of the fan: 22 Watt
  • Consumption current: 0.28A / 0.56A
  • Air circulation: 4.4 / 8.8 m³/min
  • Measurement limits: -50 ºC ... +125 ºC
  • Measurement accuracy: +/-0.5ºC
  • Working temperature: 0...+50ºC
  • Relative air humidity (air temp. +35C): 80%
  • Noise level: 35 decibel
  • Lifetime: 30.000 hours
  • Switch: No
  • Thermostat: Yes
  • Pack quantity: 1 unit including power cable (1.5 m) with Shuko plug and sensor cable (1.2 m); version with 4 fans is supplied with a depth fixing bracket
Atributo del producto Valor
Height1217 mm
Width511 mm
Depth347 mm
MaterialStainless Steel
FinishPlated
ColorUnpainted
Phase Quantity1
Frequency50/60 Hz
UPC783510462888
EAN8713574211247
Standard Packaging Quantity1.0000
Packing Quantity1.0000

ETIM for CUVN40502SS Cabinets and enclosures (EC000855)

Feature nameModel (EF000010)
Feature valueOther
Feature nameOperating voltage AC 50 Hz (EF008206)
Feature value230.00 V
Feature nameOperating voltage AC 60 Hz (EF008207)
Feature value230.00 V
Feature nameOperating voltage DC (EF008208)
Feature valueNone V
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameSpeed-regulated (EF011921)
Feature value
Feature nameWith temperature control (EF000745)
Feature valuetrue
Feature nameFunction master/slave (EF007183)
Feature valuefalse
Feature nameWith heating function (EF000479)
Feature value
Feature nameTotal cooling capacity according to EN 14511 at 35/35 °C (EF011920)
Feature valueNone W
Feature nameCooling air flow rate (EF024959)
Feature valueNone m³/h
Feature nameAmbient temperature during operating (EF007515)
Feature valueNone °C
Feature nameWidth (EF000008)
Feature value511.00 mm
Feature nameHeight (EF000040)
Feature value1.22 mm
Feature nameDepth (EF000049)
Feature value347.00 mm
