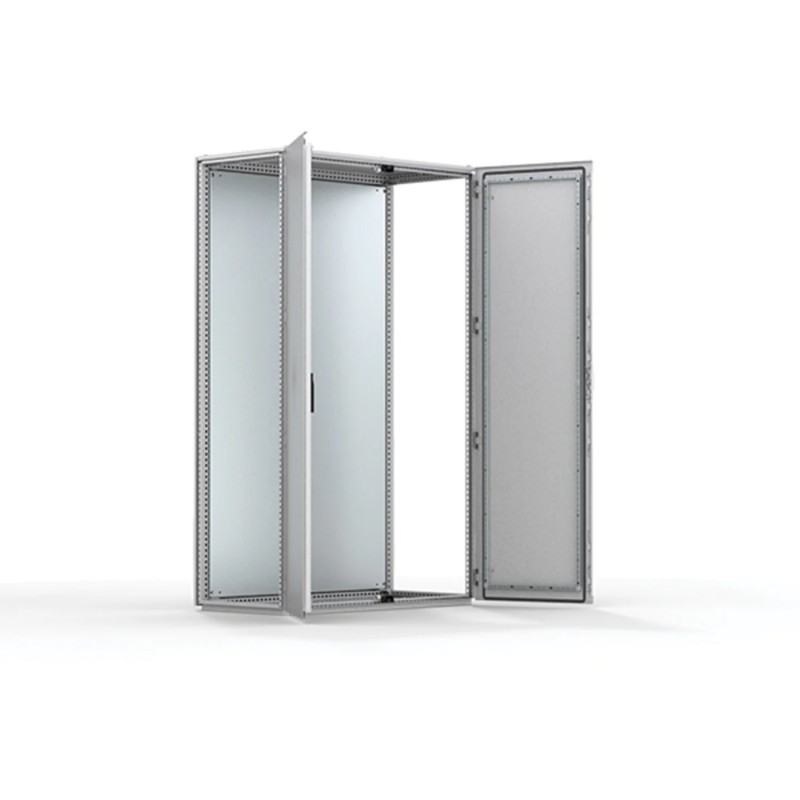

MCD20128RDR5 ELDON Самонесущий, 2000x1200x800, шкаф combinale, 2-дверный, стр. сзади, из мягкой стали, класс.. Увеличить
Изображения носят исключительно иллюстративный. Пожалуйста, ознакомьтесь с техническим паспортом.

MCD20128RDR5 ELDON Самонесущий, 2000x1200x800, шкаф combinale, 2-дверный, стр. сзади, из мягкой стали, класс..

MCD20128RDR5

ELDON

Самонесущий, 2000x1200x800, шкаф combinale, 2-дверный, стр. сзади, из мягкой стали, класс защиты IP55

Modular Double Door, MCD with Plate, 2000x1200x800mm, Light Gray, Mild Steel

Подробнее


Стальные напольные корпуса

Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами ELDON

Общая стоимость: $2,504.34
Цена за единицу: $2,504.34
Эта цена за единицу и является чистая стоимость (не включая налоги, если это применимо).

Если наша цена не самая лучшая, попросите нас о цене бюджетный запрос

Best sellers

Описание



Features

  • Material: Frame: 1.5 mm painted steel. Doors: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
  • Doors: Mounted with four hinges. Including door frame with 25 mm hole pattern. Doors cannot be reversed. Separate doors to be ordered for left hand door locking.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear doors mounting. Split rear panels in 1600 mm wide enclosures. RD version comes with rear door instead of rear panel.
  • Side panels: Supplied as an accessory.
  • Roof panel: Removable.
  • Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
  • Bottom plates: Consists of three or four (D>600) pieces.
  • Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
  • Earthing: All panels are earthed through their fittings and equipped with a separate earthing stud.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP55 TYPE 12 IK 10.
  • Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
  • Delivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame (not included for PER5 version). For enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. Packing material is recyclable.
Atributo del producto Valor
Height2000 mm
Width1200 mm
Depth800 mm
Mounting Plate IncludedYes
Door/Rear PanelRear door
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Body Thickness1.5 mm
Door Thickness2 mm
Weight222.7 kg
UPC783510492151
EAN8713574228108
Standard Packaging Quantity1.0000
Packing Quantity1.0000

Datasheet - PDF

Заглавие: Размер: Тип:
PDF CATALOGUE NVENT EN.pdf 140 Mbytes
MCD20128RDR5 MCD20128RDR5 RU_MCD20126PER5.pdf 458 Kbytes   MCD20128RDR5  MCD20128RDR5 RU_MCD20126PER5.pdf
