ELDONSteel Console SystemsMPGS12-316 ELDON Console, 985x1200x400
ELDON MPGS12-316 MPGS12-316 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MPGS12-316 ELDON Console, 985x1200x400

Reference: MPGS12-316

Manufacturer: ELDON

Description:

Console, 985x1200x400
Console, 985x1200x400, compact, with MP, stainless steel grade 316, IP55
Console, 985x1200x400, Compact enclosure, with MP, stainless 316, IP55

Categories:

  • Cabinet enclosures > Desk system (switchgear cabinet)
  • ELDON > Steel Console Systems

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 4.775,79 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Material: AISI 304 pre-grained stainless steel / AISI 316L (on request). Body and door: 2 mm. Rear panel: 1.5 mm. Bottom plates: 1.5 mm. Mounting plate: 2.5 mm galvanized steel.
  • Body: Folded and seam welded. Console construction includes a base that provides a distance between the floor and the lower part of the door/s, acting as an integrated plinth.

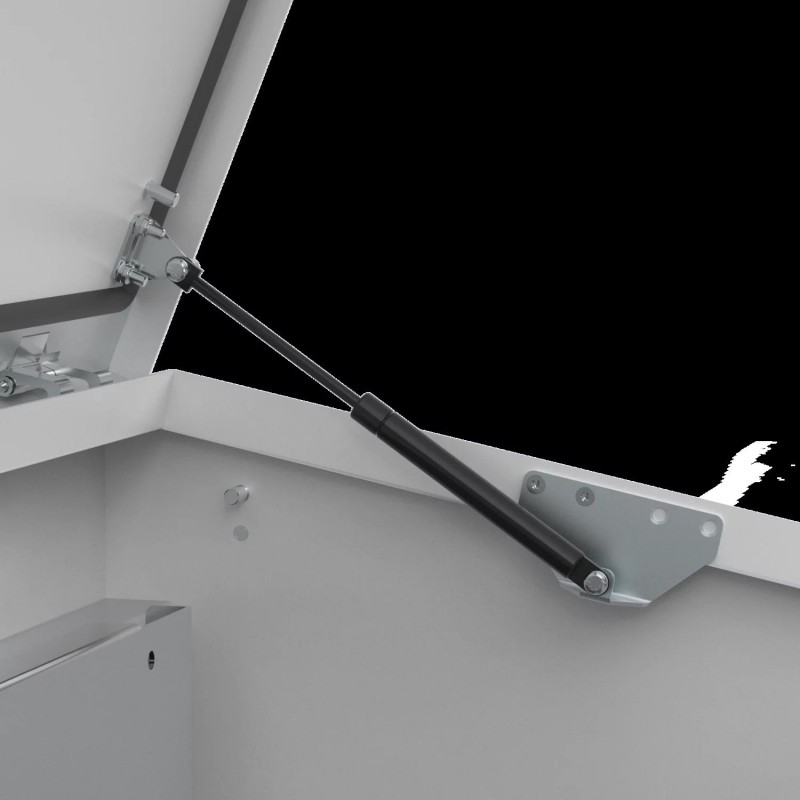

  • Doors and panels: Single folded surface mounted with hinges, allowing left and right-hand opening to base door. Angle 12° from horizontal. Concealed hinges, on top edge, allow 90° opening. Panel held open by self engage/self release mechanical panel stay. Double door on 1200 wide base units.
  • Mounting plate: Standard mounting plate in base unit.
  • Lock: Double-bit 3 mm locks for top panel. For base, two double-bit 3 mm locks.
  • Cable inlet: Bottom opening for cable access. Bottom plate for cable glanding supplied as standard.
  • Earthing: M8 threaded studs on body, door, top panel and rear panel.
  • Finish: 400 pre-grained stainless steel.
  • Protection: Single door: IP 66, TYPE 4X, 12, 13, IK 10. Double door: IP 55, TYPE 12, 13, IK 10.
  • Delivery: Mounting plate and suitable nuts and washers for earthing. The console is delivered on a wooden pallet.
  • M8 threaded studs on body, puerta, top panel and rear panel
Atributo del producto Valor
Height985 mm
Width1200 mm
Depth400 mm
Panel Size790 x 1099 mm
Max Mounting Depth357.5 mm
Weight90.67 kg
MaterialStainless Steel 316
FinishBrushed
ColorUnpainted
Body Thickness2 mm
Door Thickness2 mm
Protection RatingIP55; NEMA Type 12; NEMA Type 13; IK10
UPC783510513016
EAN8713574192669
Standard Packaging Quantity1.0000
Packing Quantity1.0000

ETIM for MPGS12-316 Cabinets and enclosures (EC000784)

Feature nameComponent of the desk system (EF006789)
Feature valueDesk console
Feature nameWidth (EF000008)
Feature value1.20 mm
Feature nameHeight (EF000040)
Feature value985.00 mm
Feature nameDepth (EF000049)
Feature value400.00 mm
Feature nameMaterial (EF002169)
Feature valueStainless steel
Feature nameSurface finishing (EF006569)
Feature valueUntreated
Feature nameColour (EF000007)
Feature valueStainless steel
Feature nameRAL-number (EF000116)
Feature value
Feature nameNumber of doors (EF000122)
Feature value2.00
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameDegree of protection (NEMA) (EF011959)
Feature value12

DATASHEET - PDF

Title
Size
Type
MPGS12-316 MPGS12-316 EN_MPGS06.pdf
1008 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
