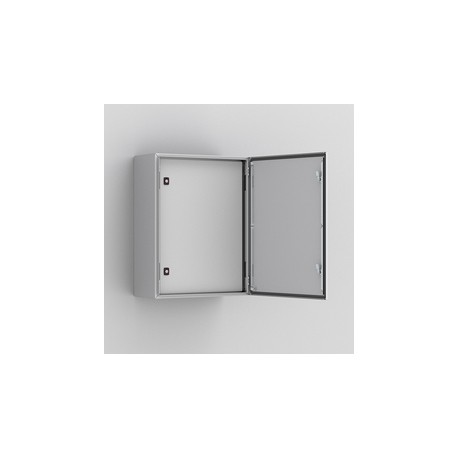

ADI05030R5 nVent HOFFMAN Inner door, 500x300 ADI05030R5

Description:

For controls, meters, lamps, etc. Hinges can be mounted to allow left or right hand opening. Lock double-bit 3 mm insert; 700 mm high doors and above have 2 locks. Usable depth between inner and external door: 35 mm. Adjustable depth position with AMG accessory. Workable area: H-55, W- 108. 19" version available on request. Machining is required for stainless steel enclosures.

Material:

Door 1.5 mm mild steel, vertical top and bottom profiles 2 mm mild steel.

Finish:

RAL 7035 structured powder coating.

Protection:

IP 2XC.

Pack quantity:

Inner door, two vertical profiles, top and bottom profiles and mounting accessories.

Feature:

A plain door to be mounted inside a wall mounted enclosure.

Advantage:

Additional mounting surface providing two levels of access.

Benefit:

Non authorized personnel have access to the controls on the inner door only.

Comment:

This accessory is often used in combination with a glazed door (ADT or ADC).
