ELDONSteel Floor Standing EnclosuresDI2208R5 ELDON Inner door, 2200x800 DI2208R5

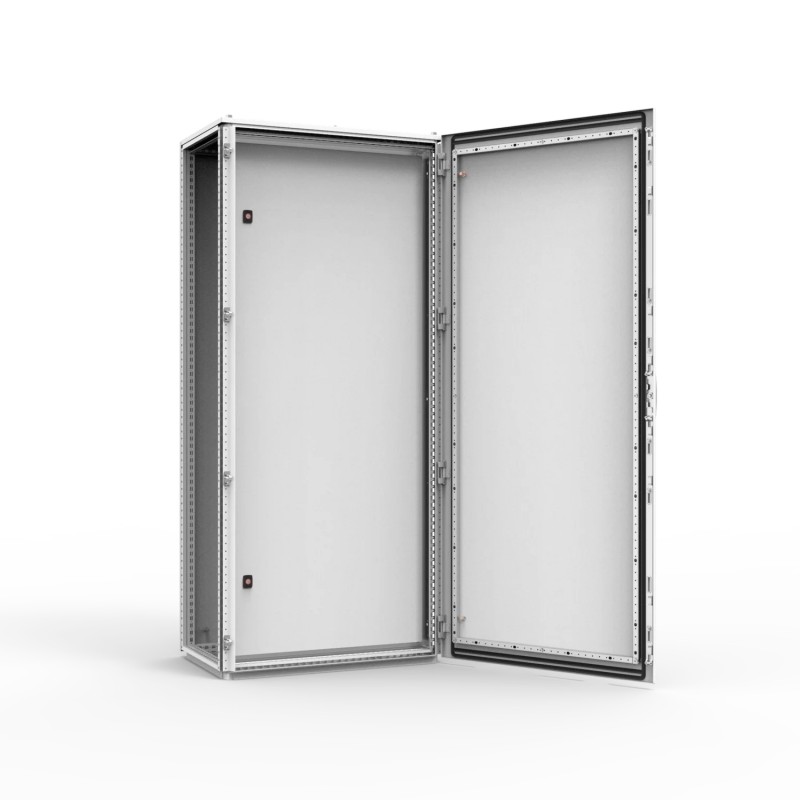

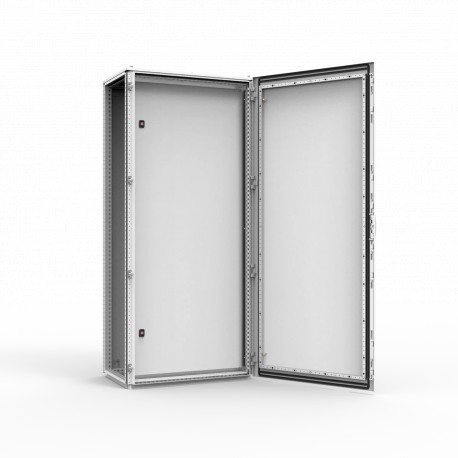

ELDON DI2208R5 DI2208R5 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

DI2208R5 ELDON Inner door, 2200x800 DI2208R5

Reference: DI2208R5

Manufacturer: ELDON

Description:

Inner door, 2200x800 DI2208R5
Interior door, 2200x800, steel sheet, lock double-warded 3 mm
Inner Doors For Power Distribution, DI, 2153x765x53mm, Light Gray, Mild Steel

Categories:

  • Cabinet enclosures > Divider panel (switchgear cabinet)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 365,48 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Inner door provides a hinged mounting surface for equipment behind a standard or glazed front door. A mounting space of 80 mm, is available between the doors when the inner door is in the most forward position. Can be adjusted in depth by steps of 25 mm. The mounting plate remains usable behind the inner door. The door is equipped with two double-bit 3 mm locks.
  • Material: 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 door with mounting accessories.
Atributo del producto Valor
Height2153mm
Width765mm
Depth53mm
Enclosure MaterialMild Steel
Product FamilyFree-Standing
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.5mm
Package Quantity1
Weight31kg
UPC783510465711
EAN8713574195301
Standard Packaging Quantity1
Packing Quantity1

ETIM for DI2208R5 Cabinets and enclosures (EC002525)

Feature nameModular spacing (EF000394)
Feature value25.00 mm
Feature nameSuitable for enclosure building width (EF000326)
Feature value800.00 mm
Feature nameWidth (EF000008)
Feature value765.00 mm
Feature nameHeight (EF000040)
Feature value2153.00 mm
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valuePowder coated
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7035.00
Feature nameWith cable entry (EF000325)
Feature valueNo
Feature nameWith lock (EF006306)
Feature valueYes
Feature nameConstruction type (EF000767)
Feature valueAssembly kit
Feature nameFor internal separation form 2a (EF009586)
Feature valueNo
Feature nameFor internal separation form 2b (EF009587)
Feature valueNo
Feature nameFor internal separation form 3a (EF009588)
Feature valueNo
Feature nameFor internal separation form 3b (EF009589)
Feature valueNo
Feature nameFor internal separation form 4a (EF009590)
Feature valueNo
Feature nameFor internal separation form 4b (EF009591)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
DI2208R5 DI2208R5 EN_DI1606R5.pdf
130 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
