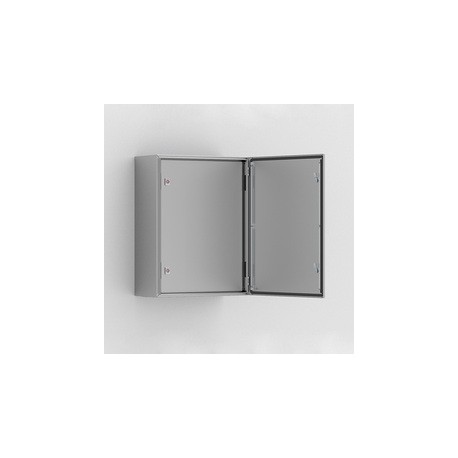

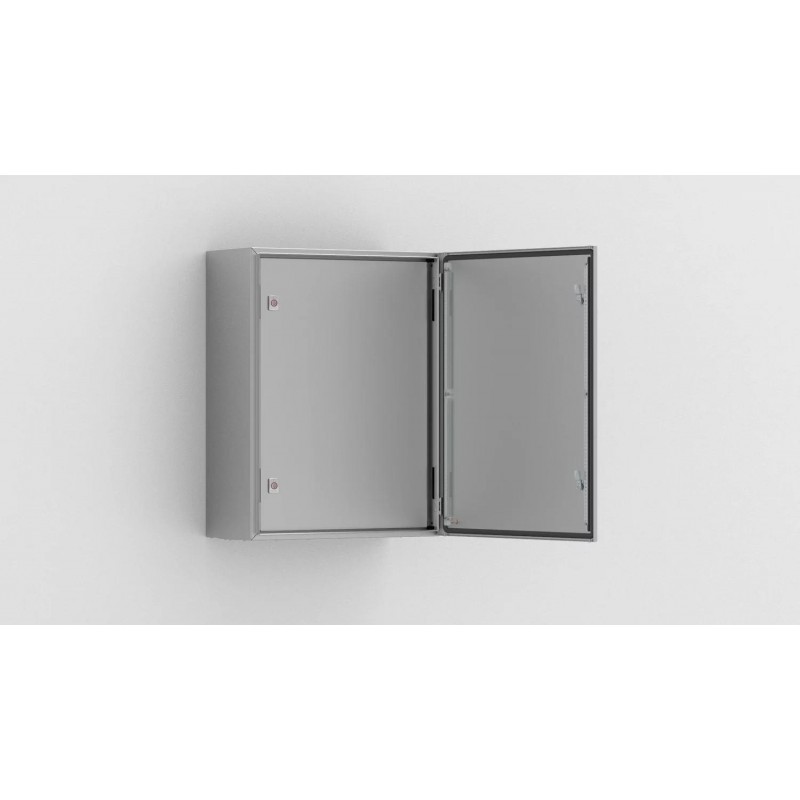

ADIS12080 nVent HOFFMAN Inner door, 1200x800 ADIS12080

Description:

For controls, meters, lamps, etc. Hinges can be mounted to allow left or right hand opening (Machining is required). Double-bit 3 mm lock, 800 mm high doors and above have 2 locks. Usable depth between inner and external door: 35 mm, adjustable depth position with AMG accessory. Workable area: H-55, W-108. 19" version available on request.

Material:

Door 1.5 mm AISI 304 stainless steel and vertical top and bottom profiles 2 mm, AISI 304 stainless steel.

Protection:

IP 2XC.

Finish:

400 pre-grained stainless steel.

Pack quantity:

Inner door, two vertical profiles, top and bottom profiles and mounting accessories.

Feature:

A plain door to be mounted inside a wall mounted enclosure.

Advantage:

Additional mounting surface providing two levels of access.

Benefit:

Non authorized personnel have access to the controls on the inner door only.

Comment:

This accessory is often used in combination with a glazed door (ADCS).
