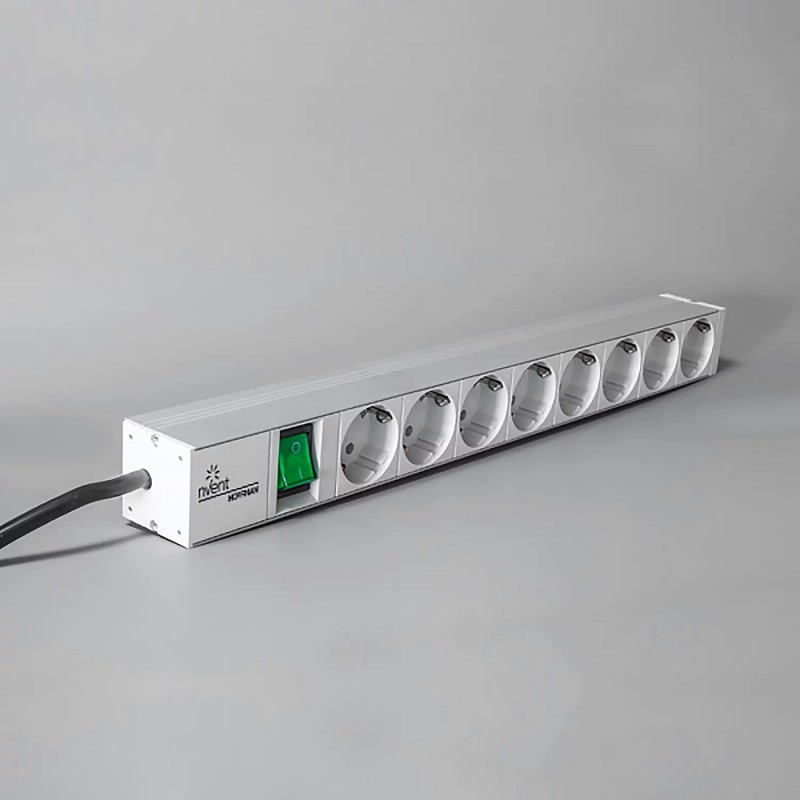

HPDS119009 ELDON Power dist. unit 9x250V/16A HPDS119009
HPDS119009
ELDON
Power dist. unit 9x250V/16A HPDS119009
Дистриб. энергии 9x250 в/16 а
Easy to mount strip with several power sockets for situations when external equipment need to be plugged in. For 19" profiles.
Блок распределения питания 9x250В/16А
Электроустановочные изделия > Несколько гнездо
Стальные напольные корпуса
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами ELDON
обычно покупают вместе
▲Best sellers
▲Описание
▲Technical data
Description: | With or without ON/OFF switch. Including 2 m cable with right angle plug. 19" assembly brackets can be turned by 90º. Outlets 35º turned. |
Material: | Aluminium extrusion, anodized. Outlets polyamide 6.6, RAL 7035. Nickel plated earth contacts. |
Cable with angle plug: | 2 m x 1.5 mm², Schuko. |
Rated power: | 16 A / 3600 W. |
Earthing: | Double earthing. |
Delivery: | 1 complete PDU with power cable and 19" assembly brackets and fixing kit. |
Features
Feature: | Power distribution unit to be installed at the front of 19" profiles. |
Advantage: | Power sockets can be easily mounted onto the 19" profiles exactly where required. |
Benefit: | The power sockets allow the end user to perform both operation and maintenance procedures easily by providing power points if external equipment requires to be plugged in. |
| Характеристика | Значение |
|---|---|
| Housing shape (EF000138) | Rectangular |
| Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) | |
| Number of socket outlets CEE 7/16 (EURO) (EF006620) | 0.00 |
| Number of cold device socket outlets (EF006580) | 0.00 |
| Number of socket outlets Italian standard type Bipasso (EF009496) | 0.00 |
| Number of socket outlets Italian standard type P11 (EF009513) | 0.00 |
| Number of socket outlets Italian standard type P17 (EF012588) | |
| Number of socket outlets Danish standard (earthing pin, type K) (EF013707) | |
| Number of socket outlets with protective contact CEE 7/5 (type E) (EF014597) | |
| Number of NEMA-outlets (EF009514) | 0.00 |
| Number of socket outlets Swiss standard type 13 (EF011975) | |
| Number of socket outlets Swiss standard type 15 (EF011977) | |
| Number of socket outlets Swiss standard type 23 (EF011978) | |
| Number of socket outlets Swiss standard type 25 (EF011979) | |
| With on/off switch (EF000488) | |
| Residual current circuit breaker (RCCB) (EF000412) | false |
| Number of universal multi standard sockets (EF012013) | |
| Mains filter (EF000947) | false |
| Number of other socket outlets (EF006579) | 0.00 |
| Number of USB connections (EF008500) | |
| Over voltage protection (EF001332) | false |
| Nominal current (EF000001) | 16.00 A |
| Core cross section (EF000018) | 2.50 mm² |
| With cover (EF001187) | |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Other |
| Halogen free (EF000025) | false |
| Anti-bacterial treatment (EF023790) | |
| Surface protection (EF000139) | Untreated |
| Surface finishing (EF006569) | Glossy |
| Colour (EF000007) | Black |
| RAL-number (similar) (EF003882) | |
| Transparent (EF006243) | false |
| Degree of protection (IP) (EF005474) | IP20 |
| Impact strength (EF004293) | |
| Length of power cord (EF000358) | 2.00 m |
| Rotated central insert (EF001331) | true |
| Angle rotated central insert (EF008402) | 45° |
| NEMA designation (EF012001) | |
| Operating temperature (EF001742) | None °C |
| Compatible with Apple HomeKit (EF014925) | |
| Compatible with Google Assistant (EF014926) | |
| Compatible with Amazon Alexa (EF014927) | |
| IFTTT support available (EF011072) |
