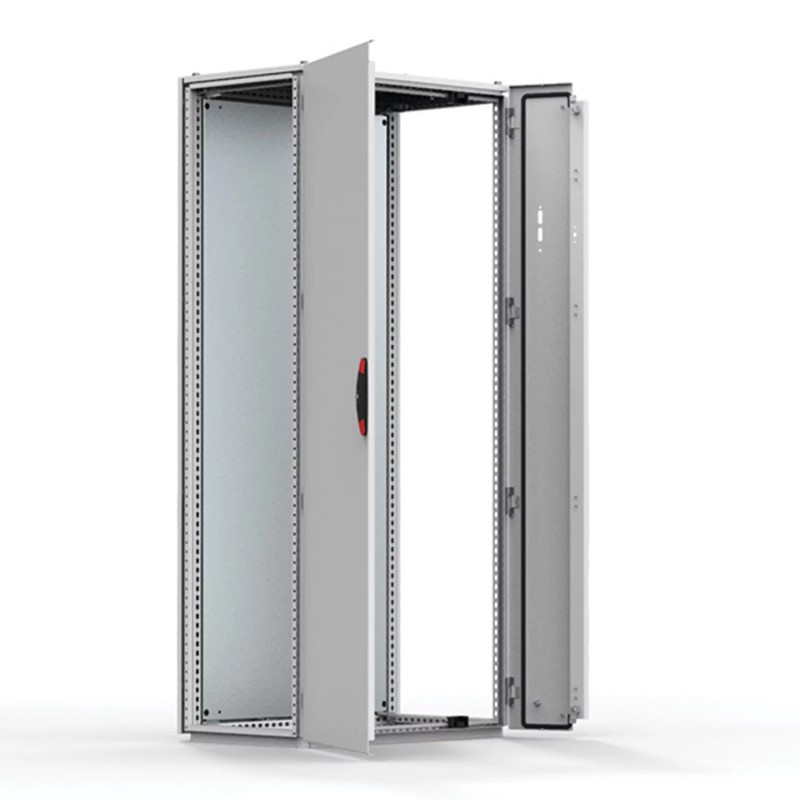

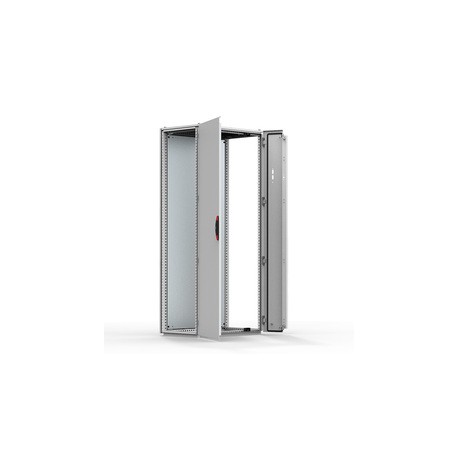

ELDON MCF20085R5 MCF20085R5 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MCF20085R5 ELDON Floor standing, 2000x800x500

Reference: MCF20085R5

Manufacturer: ELDON

Description:

Floor standing, 2000x800x500
Self-supporting, 2000x800x500, combinable, 1 door, with MP, mild steel, IP55
Flange Mount Disconnect, MCF, 2000x800x500mm, Zinc Plated, Mild Steel

Categories:

  • Cabinet enclosures > Enclosure/switchgear cabinet (empty)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.080,32 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Material: Frame: 1.5 mm painted steel. Doors: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
  • Door: Mounted with four hinges. Including door frame with 25 mm hole pattern. Door can not be reversed. Flange door: Surface mounted with hinges, locked from the inside, including universal cut-out.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
  • Side panels: Supplied as an accessory.
  • Roof panel: Removable.
  • Lock: Lock, left door: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories. Lock, right door: Top and bottom lock with double-bit for easy opening of the door. Double-bit 3 mm insert and 90° movement. Other inserts are available as an accessory.
  • Bottom plates: Consists of three pieces
  • Mounting plate: Double folded and adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 55 TYPE 12 IK 10.
  • Mounting requirements: Standard delivery ready for combined installation. Sides of the group of combined enclosures must be closed with side panels SPM. The interlocking kit, FMD, is included in standard delivery and compatible with the most popular electrical switched. To complete the interlocking system for bayed configurations, add FMA, FMB and FMS.
  • Delivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
Atributo del producto Valor
Height (H)2000mm
Width (W)800mm
Depth (D)500mm
Mounting Plate Height1894mm
Mounting Plate Width694mm
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Body Thickness1.5mm
Door Thickness2mm
UPC783510493042
EAN8713574129467
Standard Packaging Quantity1
Packing Quantity1

ETIM for MCF20085R5 Cabinets and enclosures (EC000261)

Feature nameWidth (EF000008)
Feature value800.00 mm
Feature nameHeight (EF000040)
Feature value2000.00 mm
Feature nameDepth (EF000049)
Feature value500.00 mm
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameMaterial quality (EF001257)
Feature valueOther
Feature nameSurface finishing (EF006569)
Feature valuePowder coated
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7035.00
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameMounting plate depth-adjustable (EF006054)
Feature valueNo
Feature nameSuitable for wall built-in (EF007536)
Feature valueNo
Feature namePole fastening (EF009582)
Feature valueNo
Feature nameNumber of doors (EF000122)
Feature value1.00
Feature nameNumber of locks (EF000123)
Feature value1.00
Feature nameSuitable for metrical mounting (EF005823)
Feature valueNo
Feature namePitched roof (EF009278)
Feature valueNo
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameWith glazed door (EF001089)
Feature valueNo
Feature nameWith ventilation door (EF006279)
Feature valueNo
Feature nameWith rear door (EF007381)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameDegree of protection (NEMA) (EF011959)
Feature value12
