ELDONStainless steel enclosuresMCSS18085 ELDON Floor standing, 1800x800x500

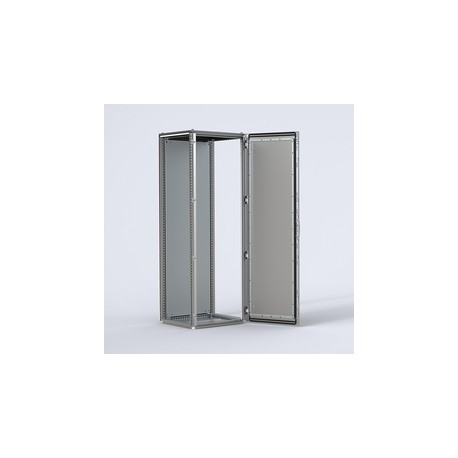

ELDON MCSS18085 MCSS18085 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MCSS18085 ELDON Floor standing, 1800x800x500

Reference: MCSS18085

Manufacturer: ELDON

Description:

Floor standing, 1800x800x500
Self-supporting, 1800x800x500, combinable, 1 door, with MP, stainless 304, IP55
Modular Single Door, MCSS, 1800x800x500mm, Brushed, Stainless

Categories:

  • Cabinet enclosures > Enclosure/switchgear cabinet (empty)
  • ELDON > Stainless steel enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2.583,33 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Material: AISI 304L pre-grained stainless steel / AISI 316L. Frame: 1.5 mm. Door: 2 mm. Rear, roof and side panels: 1.5 mm. Bottom plates: 1.5 mm stainless steel. Mounting plate: 3 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660.
  • Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
  • Side panels: Supplied as an accessory.
  • Roof panel: Removable.
  • Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit 3 mm insert. Standard inserts, cylinders, lift handles and T-handle are available as accessories.
  • Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
  • Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Mounting plate is supplied, attached on the outside of the enclosure packaging.
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: 400 pre-grained stainless steel.
  • Protection: Corresponds with IP 55 TYPE 12 IK 10.
  • Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation, add side panels.
  • Delivery: Frame with fitted door, rear panel, roof panel, bottom plate, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
Atributo del producto Valor
Height1800mm
Width800mm
Depth500mm
MaterialStainless Steel
FinishBrushed
Body Thickness1.5mm
Door Thickness2mm
Weight127.4kg
UPC783510499075
EAN8713574191662
Standard Packaging Quantity1
Packing Quantity1

ETIM for MCSS18085 Cabinets and enclosures (EC000261)

Feature nameWidth (EF000008)
Feature value800.00 mm
Feature nameHeight (EF000040)
Feature value1800.00 mm
Feature nameDepth (EF000049)
Feature value500.00 mm
Feature nameMaterial (EF002169)
Feature valueStainless steel
Feature nameMaterial quality (EF001257)
Feature valueStainless steel 304 (V2A)
Feature nameSurface finishing (EF006569)
Feature valueBrushed/grinded
Feature nameColour (EF000007)
Feature valueOther
Feature nameRAL-number (EF000116)
Feature value
Feature nameFreestanding (EF020363)
Feature value
Feature nameFloor standing wall model (EF015208)
Feature value
Feature nameSuitable for wall mounting (EF000664)
Feature value
Feature nameCorner model (EF020814)
Feature value
Feature nameIntermediate mounting (EF022994)
Feature value
Feature nameCouplable (EF001229)
Feature value
Feature nameWith mounting plate (EF000118)
Feature valuetrue
Feature nameMounting plate depth-adjustable (EF006054)
Feature valuetrue
Feature nameSuitable for wall built-in (EF007536)
Feature valuefalse
Feature namePole fastening (EF009582)
Feature valuefalse
Feature nameNumber of doors (EF000122)
Feature value1.00
Feature nameNumber of locks (EF000123)
Feature value1.00
Feature nameSuitable for metrical mounting (EF005823)
Feature valuefalse
Feature namePitched roof (EF009278)
Feature valuefalse
Feature nameEMC-version (EF001062)
Feature valuefalse
Feature nameWith glazed door (EF001089)
Feature valuefalse
Feature nameWith ventilation door (EF006279)
Feature valuefalse
Feature nameWith rear door (EF007381)
Feature valuefalse
Feature nameImpact strength (EF004293)
Feature valueIK10
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameDegree of protection (NEMA) (EF011959)
Feature value13
Feature nameThermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986)
Feature valueNone W
Feature nameMax. permissible load of the enclosure according to IEC 62208 (EF014987)
Feature valueNone N
Feature nameMax. permissible load of the door(s) according to IEC 62208 (EF014988)
Feature valueNone N
Feature nameMax. permissible load of the mounting plate according to IEC 62208 (EF014989)
Feature valueNone N
