ELDONSteel Floor Standing EnclosuresMCS18065PER5 ELDON Floor standing, 1800x600x500

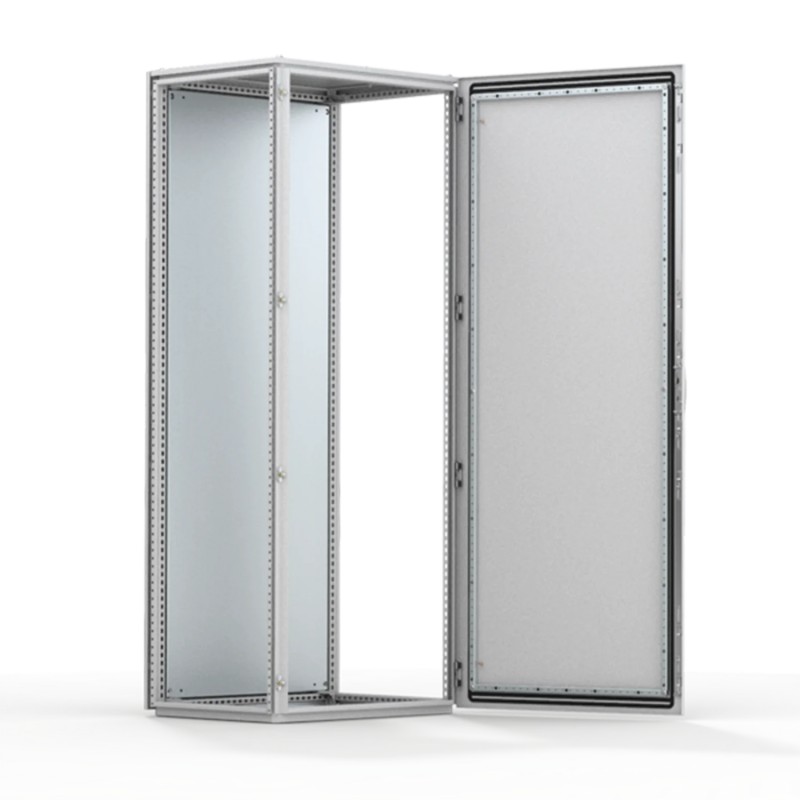

ELDON MCS18065PER5 MCS18065PER5 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MCS18065PER5 ELDON Floor standing, 1800x600x500

Reference: MCS18065PER5

Manufacturer: ELDON

Description:

Floor standing, 1800x600x500
Self-supporting, 1800x600x500, combinable, 1 door, no MP, mild steel, IP55
Modular Single Door, MCS without Plate, 1800x600x500mm, Light Gray, Mild Steel

Categories:

  • Cabinet enclosures > Enclosure/switchgear cabinet (empty)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 681,05 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Material: Frame: 1.5 mm painted steel. Door: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
  • Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting. RD version comes with rear door instead of rear panel.
  • Side panels: Supplied as an accessory.
  • Roof panel: Removable.
  • Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
  • Bottom plates: Consists of three or four (D>600) pieces.
  • Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 55 TYPE 12 IK 10.
  • Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
  • Delivery: Frame with fitted door, rear panel, roof panel, bottom plates, mounting plate (not included for PER5 version) and door frame. For 400 mm wide enclosures, a mounting plate, bottom plates and door frame are not included. For enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
Atributo del producto Valor
Height1800mm
Width600mm
Depth500mm
Mounting Plate IncludedNo
Rear Door IncludedNo
Rear Panel IncludedYes
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Body Thickness1.5mm
Door Thickness2mm
Weight69kg
Cable Enclosures IncludedNo
UPC783510494117
EAN8713574129672
Standard Packaging Quantity1
Packing Quantity1

ETIM for MCS18065PER5 Cabinets and enclosures (EC000261)

Feature nameWidth (EF000008)
Feature valueNone mm
Feature nameHeight (EF000040)
Feature valueNone mm
Feature nameDepth (EF000049)
Feature valueNone mm
Feature nameMaterial (EF002169)
Feature value
Feature nameMaterial quality (EF001257)
Feature value
Feature nameSurface finishing (EF006569)
Feature value
Feature nameColour (EF000007)
Feature value
Feature nameRAL-number (EF000116)
Feature value
Feature nameFreestanding (EF020363)
Feature value
Feature nameFloor standing wall model (EF015208)
Feature value
Feature nameSuitable for wall mounting (EF000664)
Feature value
Feature nameCorner model (EF020814)
Feature value
Feature nameIntermediate mounting (EF022994)
Feature value
Feature nameCouplable (EF001229)
Feature value
Feature nameWith mounting plate (EF000118)
Feature value
Feature nameMounting plate depth-adjustable (EF006054)
Feature value
Feature nameSuitable for wall built-in (EF007536)
Feature value
Feature namePole fastening (EF009582)
Feature value
Feature nameNumber of doors (EF000122)
Feature value
Feature nameNumber of locks (EF000123)
Feature value
Feature nameSuitable for metrical mounting (EF005823)
Feature value
Feature namePitched roof (EF009278)
Feature value
Feature nameEMC-version (EF001062)
Feature value
Feature nameWith glazed door (EF001089)
Feature value
Feature nameWith ventilation door (EF006279)
Feature value
Feature nameWith rear door (EF007381)
Feature value
Feature nameImpact strength (EF004293)
Feature value
Feature nameDegree of protection (IP) (EF005474)
Feature value
Feature nameDegree of protection (NEMA) (EF011959)
Feature value
Feature nameThermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986)
Feature valueNone W
Feature nameMax. permissible load of the enclosure according to IEC 62208 (EF014987)
Feature valueNone N
Feature nameMax. permissible load of the door(s) according to IEC 62208 (EF014988)
Feature valueNone N
Feature nameMax. permissible load of the mounting plate according to IEC 62208 (EF014989)
Feature valueNone N
