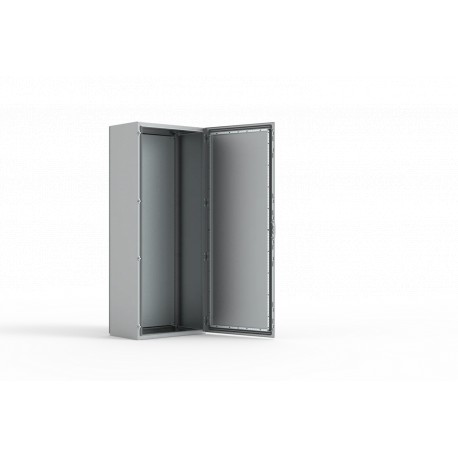

EKSS18064 ELDON Напольный, 1800x600x400
EKSS18064
ELDON
Напольный, 1800x600x400
Самонесущий, 1800x600x400, компактный, 1-дверный, с МП, нержавеющая 304, класс защиты IP66
Напольные шкафы, 1800x600x400, Компактный корпус, 1-дверный, с MP, нержавеющая 304, IP66
Электрические шкафы и боксы > Корпус/распределительный шкаф (пустой)
Шкафы из нержавеющей стали
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами ELDON
Related products
▲Best sellers
▲Описание
▲Features
- Material: AISI 304 pre-grained stainless steel / AISI 316L. Body and removable rear panel: 1.5 mm. Door: 2 mm. Bottom plate: 1.5 mm. Mounting plate: 3 mm galvanized steel.
- Body: One piece enclosure body. Integrated depth profiles with hole pattern, allowing mounting plate adjustable in depth.
- Door: Surface mounted with 4 hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern and earthing studs.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
- Lock: External espagnolette 4-point locking system. Standard fitted double-bit 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm with the MPD02 accessory. Mounting plate is supplied, attached on the outside of the enclosure packaging.
- Earthing: Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF.
- Finish: 400 pre-grained stainless steel.
- Protection: Complies with IP 66 TYPE 4X, 12 IK 10.
- Delivery: One piece body with fitted door, bottom plate and mounting plate, including door earthing studs. Delivered on a pallet which is identical to the width of the enclosure. Mounting plate is attached to the outside of the enclosure packaging. All the packing material is recyclable.
- Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing
- Mounting plate: Double folded and slides into position; adjustable in depth by steps of 25 mm with the MPD02 accessory; mounting plate is supplied, attached on the outside of the enclosure packaging
- Earthing: Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF
- Delivery: One piece body with fitted door, bottom plate and mounting plate, including door earthing studs; delivered on a pallet which is identical to the width of the enclosure; mounting plate is attached to the outside of the enclosure packaging; all the packing material is recyclable
| Atributo del producto | Valor |
|---|---|
| Высота мм (H) | 1800 mm |
| Ширина мм (W) | 600 mm |
| Глубина мм (D) | 400 mm |
| Material | Stainless Steel 304 |
| Panel Size | 1694 x 494 mm |
| Weight | 97 kg |
| Finish | Brushed |
| Color | Unpainted |
| Body Thickness | 1.5 mm |
| Door Thickness | 2 mm |
| UPC | 783510478476 |
| EAN | 8713574191907 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Характеристика | Значение |
|---|---|
| Width (EF000008) | 600.00 mm |
| Height (EF000040) | 1.80 mm |
| Depth (EF000049) | 400.00 mm |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Stainless steel 304 (V2A) |
| Surface finishing (EF006569) | Untreated |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | |
| Freestanding (EF020363) | |
| Floor standing wall model (EF015208) | |
| Suitable for wall mounting (EF000664) | |
| Corner model (EF020814) | |
| Intermediate mounting (EF022994) | |
| Couplable (EF001229) | |
| With mounting plate (EF000118) | true |
| Mounting plate depth-adjustable (EF006054) | true |
| Suitable for wall built-in (EF007536) | |
| Pole fastening (EF009582) | false |
| Number of doors (EF000122) | 1.00 |
| Number of locks (EF000123) | 1.00 |
| Suitable for metrical mounting (EF005823) | |
| Pitched roof (EF009278) | false |
| EMC-version (EF001062) | false |
| With glazed door (EF001089) | false |
| With ventilation door (EF006279) | false |
| With rear door (EF007381) | false |
| Impact strength (EF004293) | IK10 |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) | None W |
| Max. permissible load of the enclosure according to IEC 62208 (EF014987) | None N |
| Max. permissible load of the door(s) according to IEC 62208 (EF014988) | None N |
| Max. permissible load of the mounting plate according to IEC 62208 (EF014989) | None N |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| EKSS18064 EKSS18064 ES_EKSS14084.pdf | 828 Kbytes |
|
