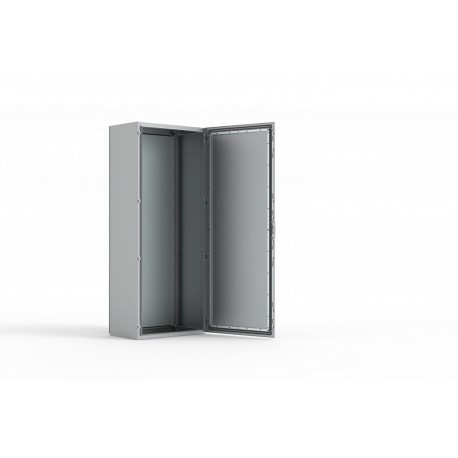

EKSS16064 ELDON Напольный, 1600x600x400
EKSS16064
ELDON
Напольный, 1600x600x400
Самонесущий, 1600x600x400, компактный, 1-дверный, с МП, нержавеющая 304, класс защиты IP66
Напольные шкафы, 1600x600x400, Компактный корпус, 1-дверный, с MP, нержавеющая 304, IP66
Электрические шкафы и боксы > Корпус/распределительный шкаф (пустой)
Шкафы из нержавеющей стали
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами ELDON
Best sellers
▲Описание
▲Features
- Material: AISI 304 pre-grained stainless steel / AISI 316L. Body and removable rear panel: 1.5 mm. Door: 2 mm. Bottom plate: 1.5 mm. Mounting plate: 3 mm galvanized steel.
- Body: One piece enclosure body. Integrated depth profiles with hole pattern, allowing mounting plate adjustable in depth.
- Door: Surface mounted with 4 hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern and earthing studs.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
- Lock: External espagnolette 4-point locking system. Standard fitted double-bit 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm with the MPD02 accessory. Mounting plate is supplied, attached on the outside of the enclosure packaging.
- Earthing: Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF.
- Finish: 400 pre-grained stainless steel.
- Protection: Complies with IP 66 TYPE 4X, 12 IK 10.
- Delivery: One piece body with fitted door, bottom plate and mounting plate, including door earthing studs. Delivered on a pallet which is identical to the width of the enclosure. Mounting plate is attached to the outside of the enclosure packaging. All the packing material is recyclable.
- Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing
- Mounting plate: Double folded and slides into position; adjustable in depth by steps of 25 mm with the MPD02 accessory; mounting plate is supplied, attached on the outside of the enclosure packaging
- Earthing: Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF
- Delivery: One piece body with fitted door, bottom plate and mounting plate, including door earthing studs; delivered on a pallet which is identical to the width of the enclosure; mounting plate is attached to the outside of the enclosure packaging; all the packing material is recyclable
| Atributo del producto | Valor |
|---|---|
| Высота мм (H) | 1600 mm |
| Ширина мм (W) | 600 mm |
| Глубина мм (D) | 400 mm |
| Material | Stainless Steel 304 |
| Panel Size | 1494 x 494 mm |
| Weight | 84 kg |
| Finish | Brushed |
| Color | Unpainted |
| Body Thickness | 1.5 mm |
| Door Thickness | 2 mm |
| UPC | 783510478322 |
| EAN | 8713574191846 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Характеристика | Значение |
|---|---|
| Width (EF000008) | 600.00 mm |
| Height (EF000040) | 1.60 mm |
| Depth (EF000049) | 400.00 mm |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Stainless steel 304 |
| Surface finishing (EF006569) | Untreated |
| Colour (EF000007) | Stainless steel |
| With mounting plate (EF000118) | Yes |
| Mounting plate depth-adjustable (EF006054) | Yes |
| Pole fastening (EF009582) | No |
| Number of doors (EF000122) | 1.00 |
| Number of locks (EF000123) | 1.00 |
| Pitched roof (EF009278) | No |
| EMC-version (EF001062) | No |
| With glazed door (EF001089) | No |
| With ventilation door (EF006279) | No |
| With rear door (EF007381) | No |
| Impact strength (EF004293) | IK10 |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| EKSS16064 EKSS16064 ES_EKSS14084.pdf | 828 Kbytes |
|
