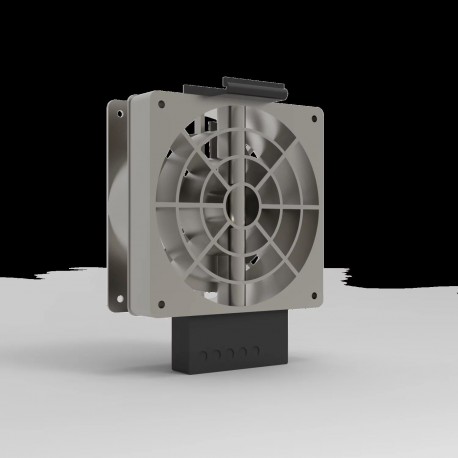

EHV200 nVent HOFFMAN Fan heater 200W EHV200

Description:

High performance space saving fan heater to prevent condensation. The fan assists the natural convection for fast distribution of the heat in large enclosures. Mounting clip for 35 mm DIN rail (EN60715). Temperature safety cut-out to protect against overtheating in case of fan failure, automatic reset.

Heating element:

High performance cartridge.

Material:

Plastic according to UL94 V-0, and die-cast aluminium.

Fan life:

50.000 h at 25 °C.

Operating temperature:

-45 °C to +70 °C.

Connection:

3-pole screw connector 2.5 mm².

Protection:

IP 20, Class I (earthed).

Approvals:

CE, EAC.

Pack quantity:

1 piece.

Feature:

High performance fan heater with a high heating capacity.

Advantage:

The large amount of heat generated by the optimised sized heater is distributed within the enclosure using forced air, produced by the heater's fan.

Benefit:

When installed, water condensation will be avoided especially in situations when the ambient temperature dramatically drops. As the air will be distributed by the integrated fan, hot spots within the enclosure will be prevented.

Comment:

A thermostat with a normally closed contact, ETR or EFR, is recommended in order to control the heater.
