ELDONGeneral AccessoriesOIDES355205 ELDON Extended HMI, 354x525x55 OIDES355205

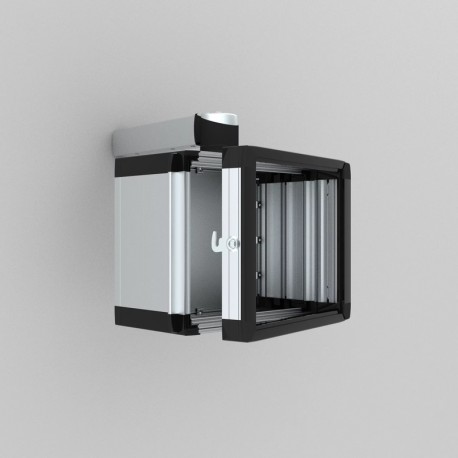

ELDON OIDES355205 OIDES355205 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

OIDES355205 ELDON Extended HMI, 354x525x55 OIDES355205

Reference: OIDES355205

Manufacturer: ELDON

Description:

Extended HMI, 354x525x55 OIDES355205
HMI extended, 354x525x55
Extended HMI, 354x525x55

Categories:

  • Cabinet enclosures > Door/operating panel (switchgear cabinet)
  • ELDON > General Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 763,96 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: OICP panel with hinged door extension profile. It increases the OICP panel depth in 55 mm. It has grid profiles in the door extension profile sides.
  • Material: Body and door extension profile: Al Mg Si05. Rear plate: Al Mg. Corners: Al Si12.
  • Protection: Complies with IP 65.
  • Finish: Body, door extension profile and rear plate: anodised aluminium. Corners: RAL 7016.
  • Pack quantity: OICP panel with rear plate, door extension profile, external hinges, and locking system.
Atributo del producto Valor
Height354 mm
Width525 mm
Depth55 mm
MaterialAluminum
FinishPowder Coated
ColorAnthracite Gray
Color CodeRAL 7016
UPC783510524371
EAN8713574118690
Standard Packaging Quantity1.0000
Packing Quantity1.0000

ETIM for OIDES355205 Cabinets and enclosures (EC000747)

Feature nameModel (EF000010)
Feature valueControl tableau
Feature nameVersion as glazed door (EF006966)
Feature valuetrue
Feature nameVersion as door for disconnecting switch interlocking (EF006967)
Feature valuefalse
Feature nameWidth (EF000008)
Feature value525.00 mm
Feature nameHeight (EF000040)
Feature value354.00 mm
Feature nameDepth (EF000049)
Feature value55.00 mm
Feature nameEMC-version (EF001062)
Feature valuefalse
Feature nameMaterial (EF002169)
Feature valueAluminium
Feature nameSurface finishing (EF006569)
Feature valueUntreated
Feature nameColour (EF000007)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature value
Feature nameDegree of protection (NEMA) (EF011959)
Feature value

DATASHEET - PDF

Title
Size
Type
OIDES355205 OIDES355205 EN_OIDES305205.pdf
149 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
