ELDONSteel Floor Standing EnclosuresCLPF300 ELDON Profile mounting , 300, galvanized. 4 units.

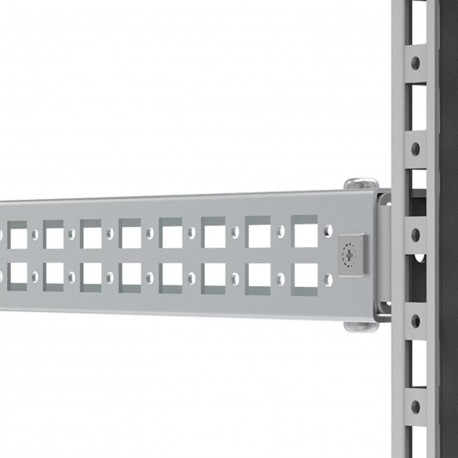

ELDON CLPF300 CLPF300 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CLPF300 ELDON Profile mounting , 300, galvanized. 4 units.

Reference: CLPF300

Manufacturer: ELDON

Description:

Profile mounting , 300, galvanized. 4 units.
Profile mounting, 300, galvanized. Pack of 4 units.
Mounting profiles, CLPF, 300, zinc plated
Click in profile, 300, zinc plated

Categories:

  • Cabinet enclosures > Profile (switchgear cabinet)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 54,65 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Features

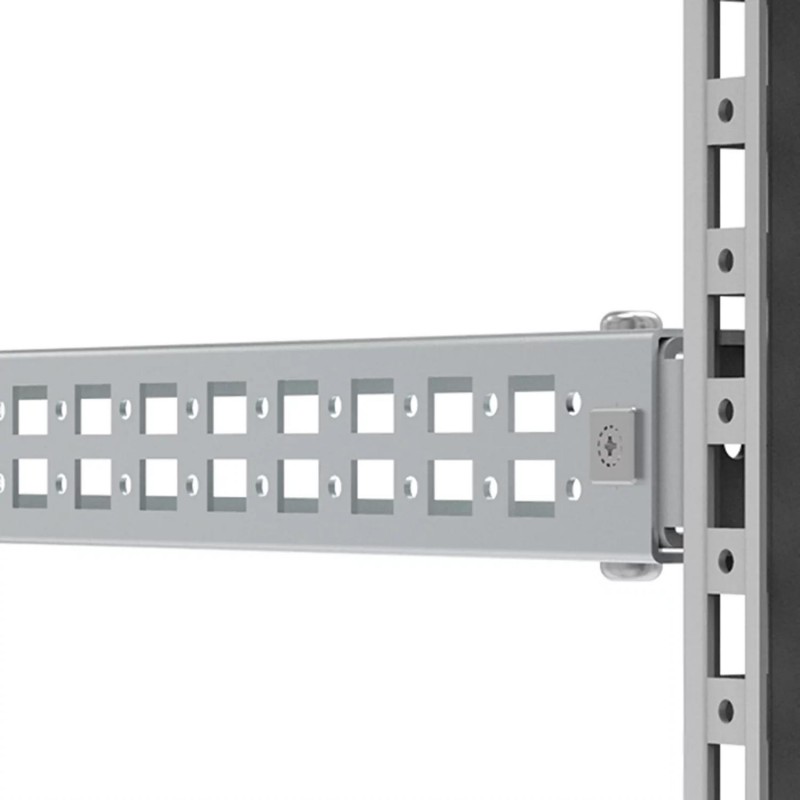

  • Description: The CLPF profile system is a 40 mm wide and 25 mm high profile, which can be mounted in all directions on the enclosure's frame. It can also be used in combination with the CLPK and the VB profiles. By turning the profile it can be used as a standard CP20/40 profile in combination with GLM 40/6 sliding nut, to mount installation material which needs adjusting in depth. The profiles, when mounted onto the enclosure's frame are flush with the enclosure's profiles. Two rows of hole patterns for cage nut fixing and self tapping screws are provided. For 90 mm wide profiles two profiles can be mounted next to each other.
  • Material: Zinc plated steel.
  • Pack quantity: 4 profiles including snap-line for fixing.
Atributo del producto Valor
Height40mm
Width225mm
Depth25mm
Compatible Enclosure Height300mm min
Compatible Enclosure Width300mm min
Compatible Enclosure Depth300mm min
Max Load Horizontal C800 N
Max Load Horizontal1000 N
MaterialMild Steel
FinishZinc Plated
Thickness1.5mm
Package Quantity4
Enclosure MaterialMild Steel
UPC783510459611
EAN8713574226685
Standard Packaging Quantity1
Packing Quantity1

ETIM for CLPF300 Cabinets and enclosures (EC002518)

Feature nameNumber of height units (EF003561)
Feature value
Feature nameModel (EF000010)
Feature value
Feature nameMaterial (EF002169)
Feature value
Feature nameSurface finishing (EF006569)
Feature value
Feature nameLength (EF001438)
Feature valueNone mm
Feature nameStepless mounting (EF001086)
Feature value
Feature nameMounting method (EF000003)
Feature value
Feature nameProfile height busbar (EF008269)
Feature valueNone mm

DATASHEET - PDF

Title
Size
Type
CLPF300 CLPF300 EN_CLPF300.pdf
114 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
